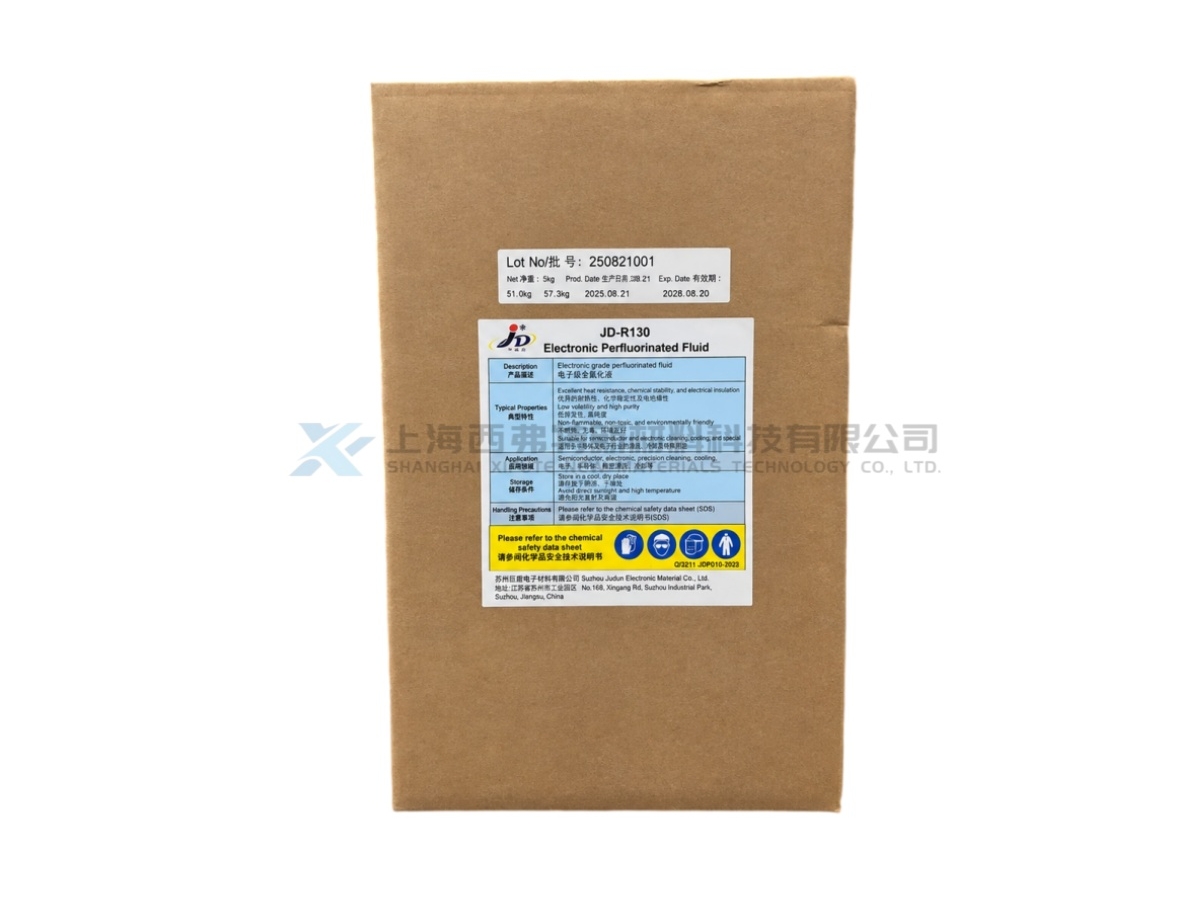

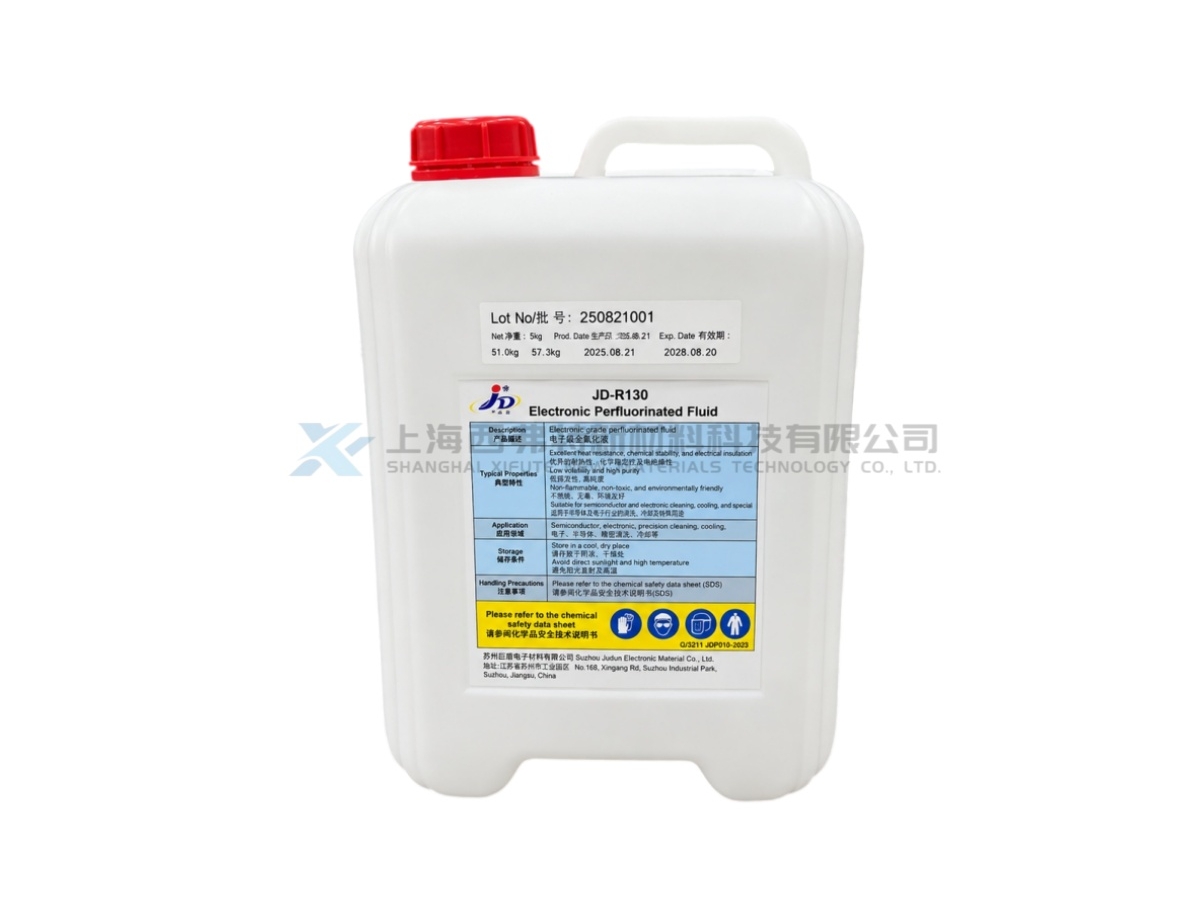

Jiuding Taitian JD-R130 Perfluorotripropylamine Electronic Fluorinated Fluid
JD-R130 is an electronic fluorinated fluid based on perfluorotripropylamine developed by Jiuding Taitian. It is a clear, colorless perfluorinated liquid with good chemical inertness, thermal-transfer capability, electrical insulation and low surface tension. The product is specifically recommended for precision temperature control in semiconductor equipment and can be used as a dedicated coolant in Chiller systems. The manufacturer lists a recommended temperature-control range of -20°C to 80°C. It can also be used in immersion cooling systems for data-center servers, energy-storage batteries, high-voltage power systems, wind-power equipment and biomedical temperature-control systems. JD-R130 has a typical density of approximately 1820 kg/m³ at 25°C, a kinematic viscosity of 0.75 cSt at 25°C, dielectric strength above 40 kV, and volume resistivity of approximately 5×10¹⁴ Ω·cm, making it suitable for thermal-management systems requiring both heat transfer and electrical insulation.
Product Details
Product Features
Excellent Electrical Insulation:High dielectric strength and volume resistivity make it suitable for cooling around electrical and electronic components.
Good Heat-Transfer Performance:Suitable as a heat-transfer medium in semiconductor and electronic temperature-control systems.
Chemical and Thermal Stability:Offers good chemical inertness and material compatibility with many metals, plastics and polymers.
Low Viscosity and Surface Tension:A kinematic viscosity of approximately 0.75 cSt and surface tension of about 15 mN/m provide good flow and penetration characteristics.
Non-Flammable Characteristics:The manufacturer describes JD-R130 as non-flammable and non-explosive for stable thermal-management applications.
Product Applications
Semiconductor Precision Temperature Control:Used as a Chiller coolant for semiconductor processing equipment, with a recommended temperature-control range of -20°C to 80°C.
Data-Center Liquid Cooling:Suitable for immersion cooling of servers and other high-heat-density equipment.
Energy-Storage and Battery Thermal Management:Applicable to battery protection and temperature-control systems.
Power and Renewable-Energy Equipment:Suitable for cooling high-voltage power systems and heat-generating components in wind turbines.
Biomedical Temperature Control:Can be used in equipment requiring stable and precise temperature regulation.
| Item | JD-R130 |
|---|---|
| Product Type | Electronic Fluorinated Fluid / Heat-Transfer Fluid |
| Brand | Jiuding Taitian |
| Model | JD-R130 |
| Main Component | Perfluorotripropylamine |
| Appearance | Clear, Colorless Liquid |
| Recommended Temperature-Control Range | -20°C to 80°C |
| Boiling Point | 121°C to 135°C |
| Pour / Freezing Point | -52°C |
| Average Molecular Weight | 521 g/mol |
| Critical Temperature | 235°C |
| Critical Pressure | 1.22 MPa |
| Vapor Pressure | 1.5 kPa |
| Heat of Vaporization | 78 kJ/kg |
| Liquid Density @ 25°C | 1820 kg/m³ |
| Coefficient of Expansion @ 100°C | 0.0014 K⁻¹ |
| Kinematic Viscosity @ 25°C | 0.75 cSt |
| Absolute Viscosity @ 25°C | 1.4 mPa·s |
| Specific Heat | 1100 J/(kg·K) |
| Thermal Conductivity | 0.066 W/(m·K) |
| Surface Tension | 15 mN/m |
| Water Solubility in Fluid | <20 ppm(w) |
| Fluid Solubility in Water | <10 ppm(w) |
| Dielectric Strength (0.1" gap) | >40 kV |
| Dielectric Constant @ 1 kHz | 1.9 |
| Volume Resistivity | 5×10¹⁴ Ω·cm |
| ODP | 0 |
| GWP | >6000 |

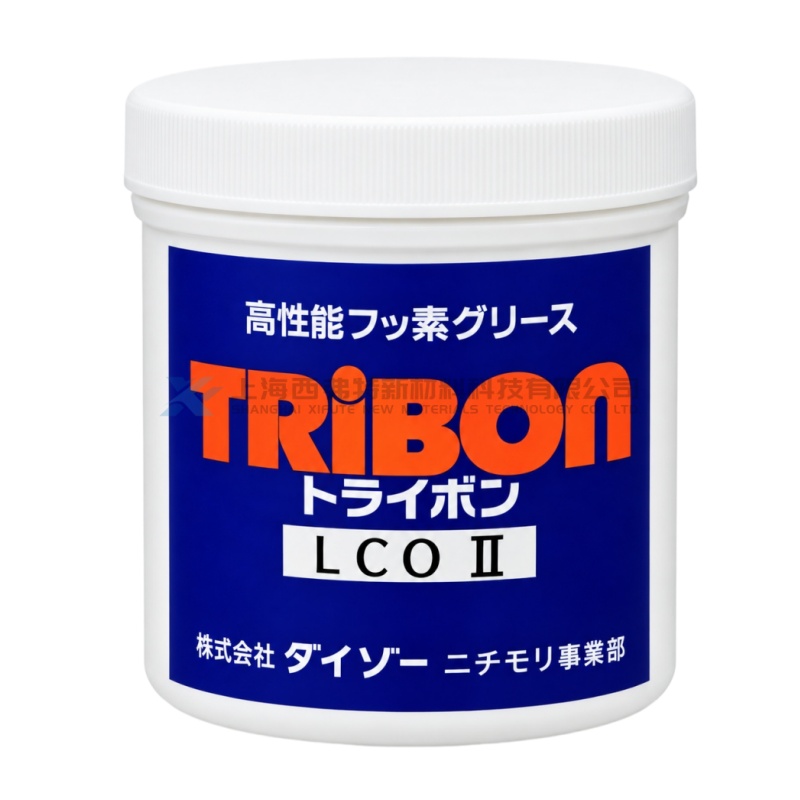

DAIZO NICHIMOLY TRIBON LCOⅡ Ultra-High-Temperature Fluorinated Grease
HARVES DRYSURF MDF-2400EL Fluorinated Semi-Wet Quick-Drying Lubricant
KYODO YUSHI FLUOTRIBO AR-P Low-Temperature Fluorinated Grease for Electrical Contacts

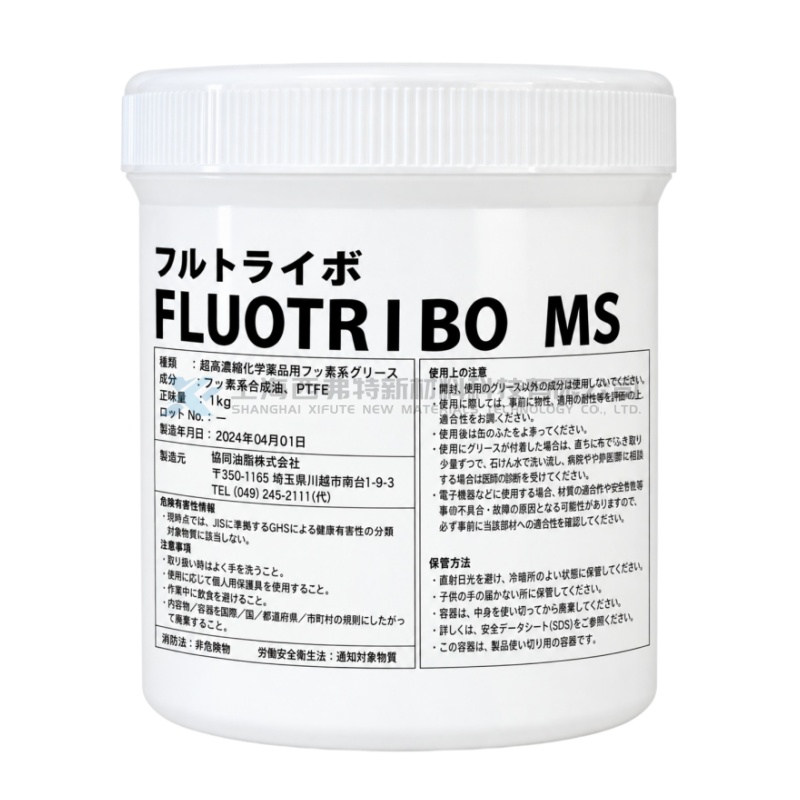

KYODO YUSHI Fluotribo MS Ultra-High-Temperature Chemical-Resistant Fluorinated Grease

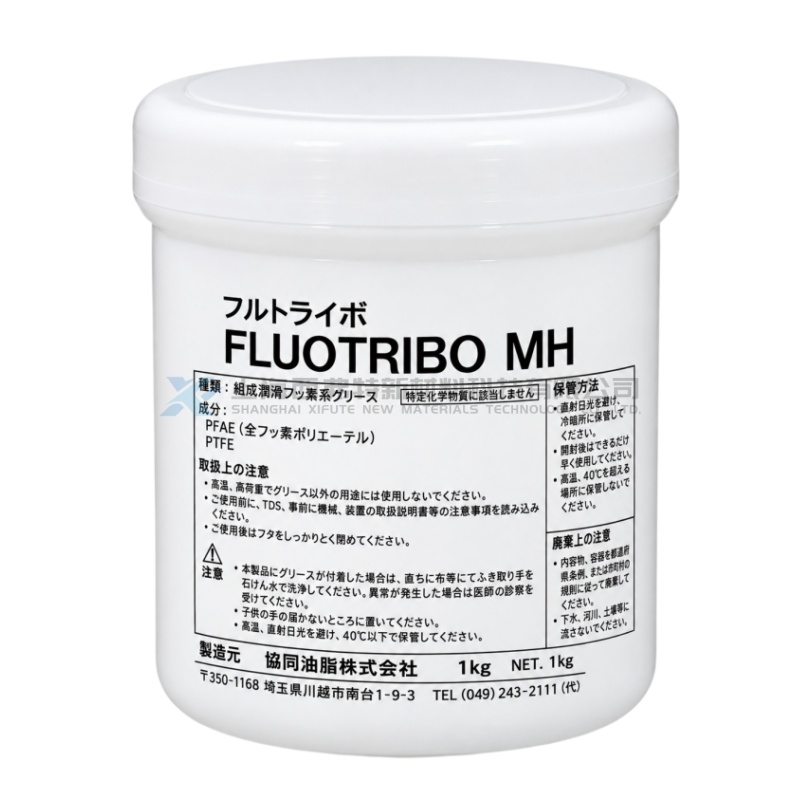

KYODO YUSHI Fluotribo MH High-Temperature Rust-Preventive Long-Life Fluorinated Grease

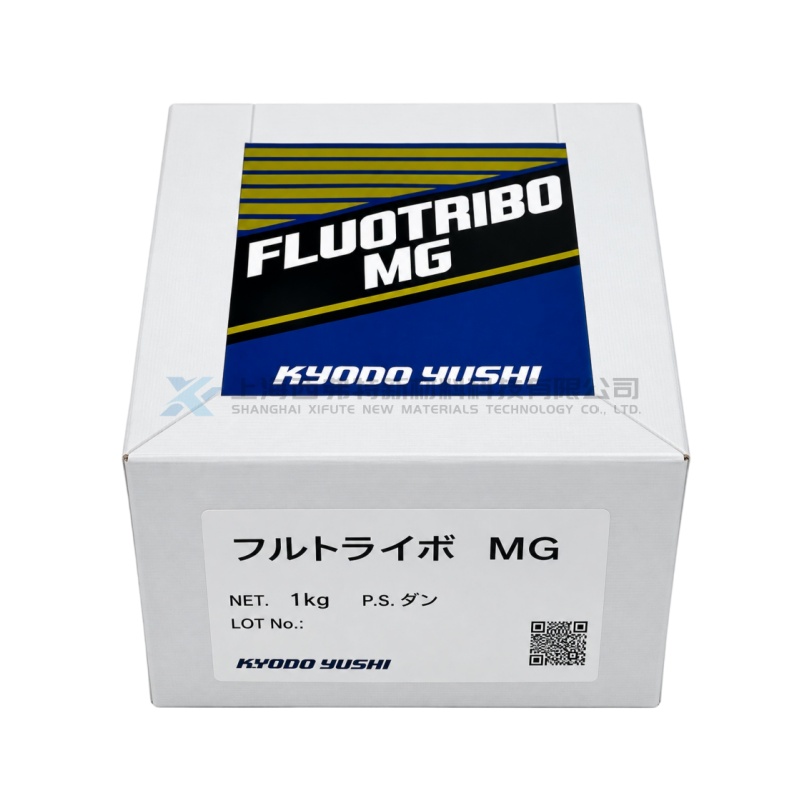

KYODO YUSHI Fluotribo MG Fluorinated Grease for High-Load Metal Sliding Parts

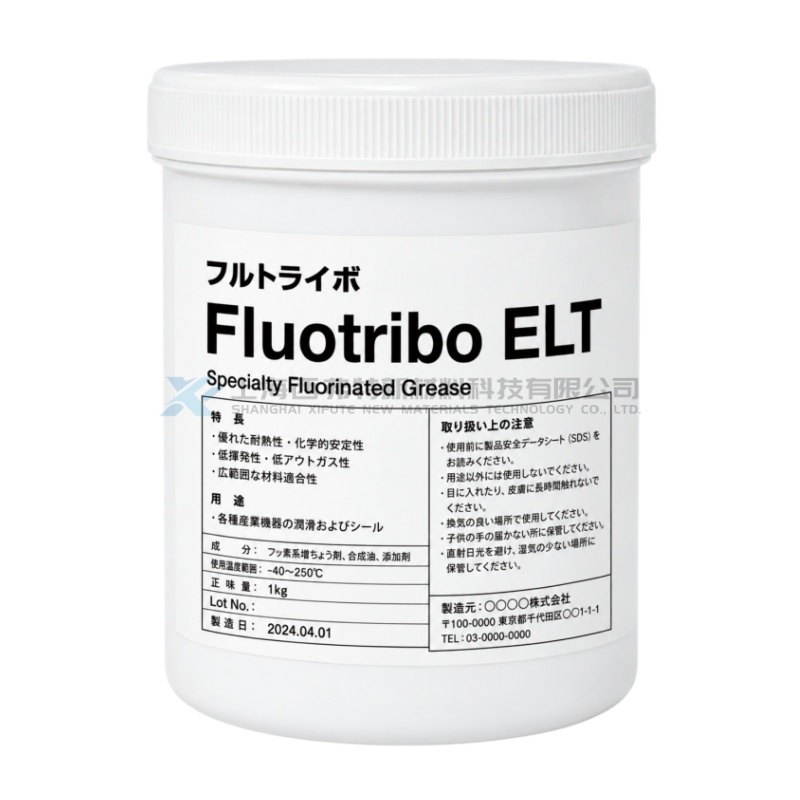

KYODO YUSHI Fluotribo ELT Fluorinated Grease for Metal Sliding Parts
