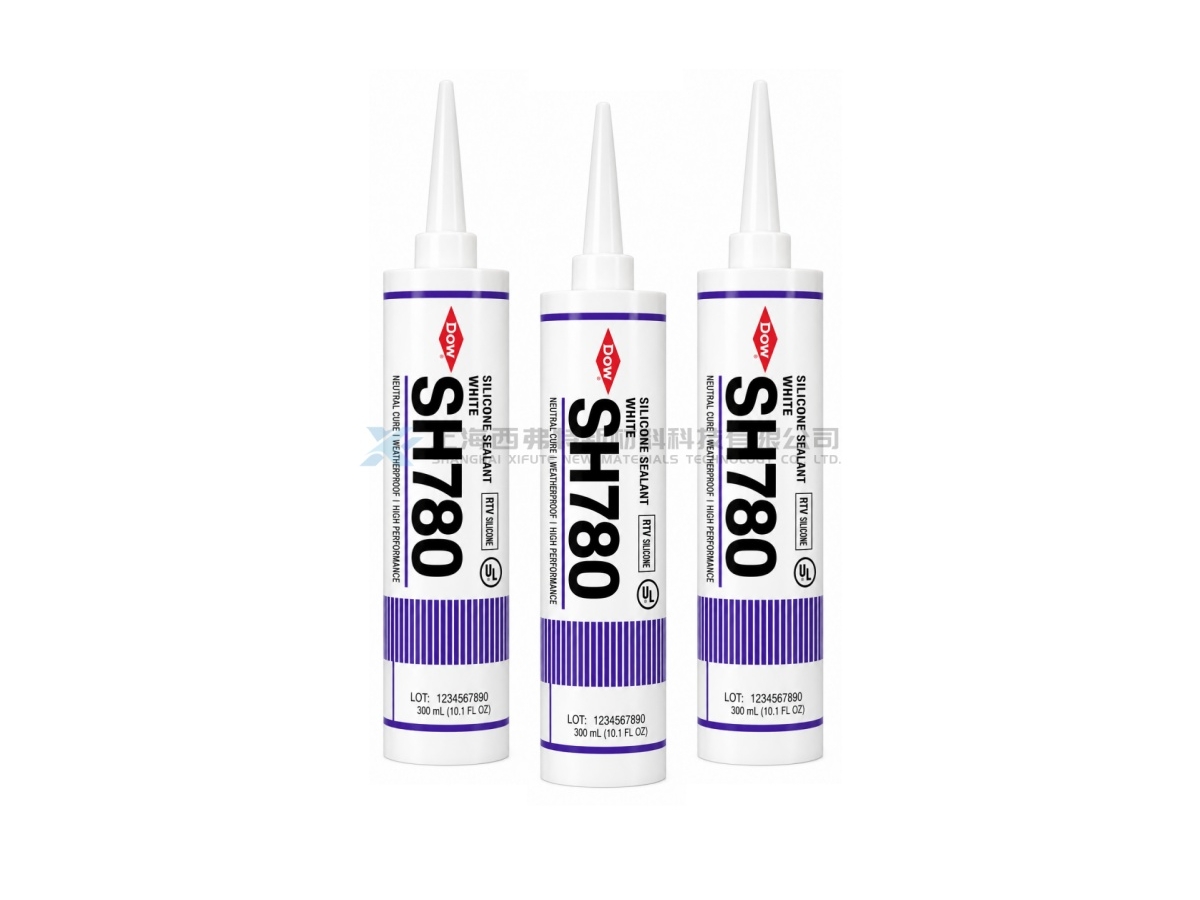

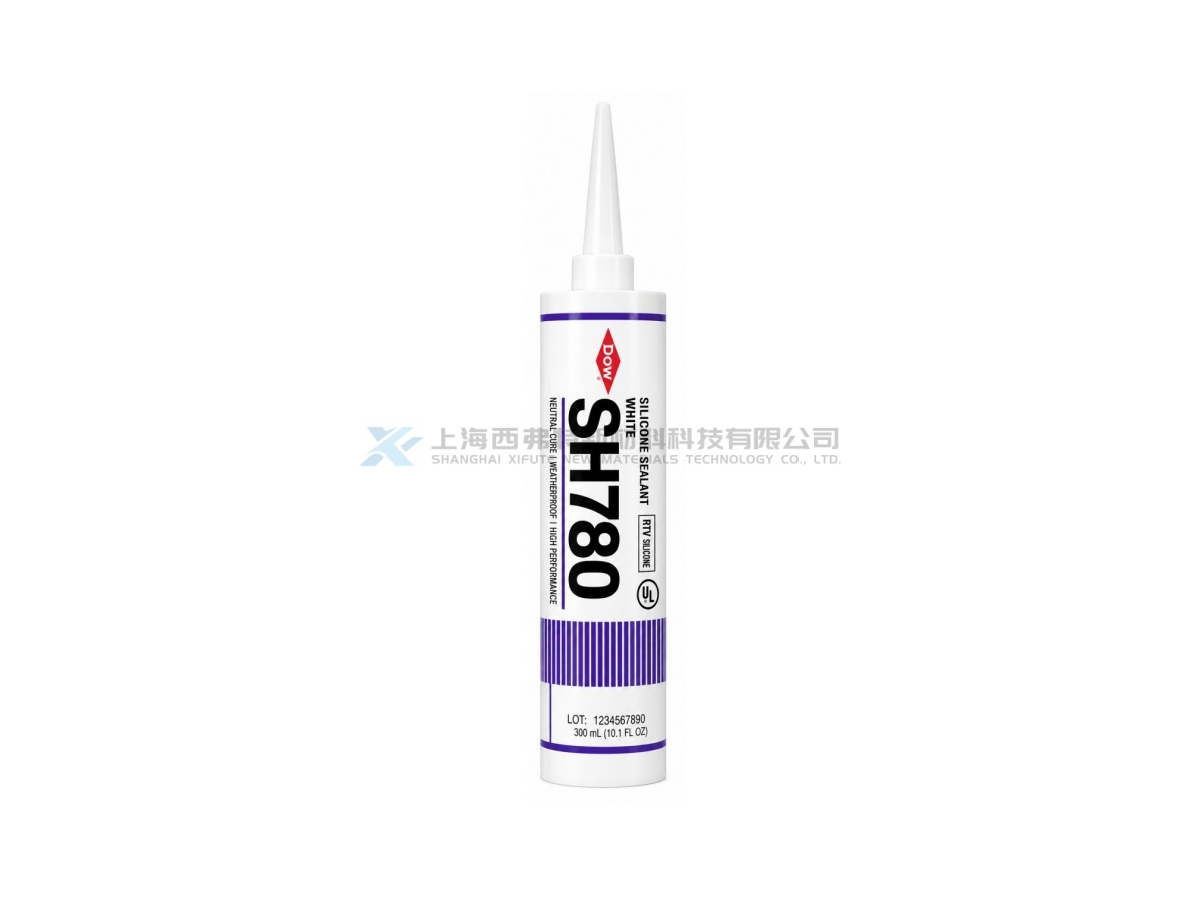

DOWSIL™ SH 780 One-Part Neutral Oxime RTV Silicone Sealant
DOWSIL™ SH 780 Sealant is a one-part neutral oxime-cure RTV silicone sealant designed for general sealing and bonding applications. No mixing is required, and its non-sag consistency makes it suitable for vertical joints and localized sealing work. SH 780 provides good adhesion to a wide range of substrates including various metals, glass, tiles and earthenware. Dow specifically notes that copper and brass are exceptions among metal substrates. Its neutral cure chemistry is less corrosive than conventional acidic silicone systems. After curing, the material forms a flexible silicone elastomer and remains flexible over a broad temperature range of approximately -40°C to 150°C. Dow also highlights its strong resistance to UV, weathering, heat and water compared with many organic sealants.
Product Details
Product Features
One-Part System:Ready to use without mixing.
Neutral Oxime Cure:Non-acidic cure system suitable for many metals, glass and ceramic materials.
Non-Sag:Suitable for vertical and overhead joints.
Wide Temperature Flexibility:Remains flexible from approximately -40°C to 150°C.
Excellent Weather & UV Resistance:Suitable for long-term exterior sealing applications.
Water Resistant:Provides durable waterproof sealing performance.
Product Applications
Glass Sealing:Sealing and repair around glass.
Window & Door Frames:Caulking and sealing around frames and joints.
Metal Bonding & Sealing:Suitable for aluminum, steel and various metals, except copper and brass.
Tiles & Ceramics:Flexible sealing and bonding of tile and ceramic materials.
General Construction Joints:Gap filling, waterproofing and weather sealing for general building applications.
| Item | DOWSIL™ SH 780 |
|---|---|
| Product Type | One-Part RTV Silicone Sealant |
| Brand | DOWSIL™ |
| Model | SH 780 |
| Cure Chemistry | Neutral Oxime |
| Number of Parts | One Part |
| Flow | Non-Sag |
| Tack-Free Time | Approx. 6 min |
| Density | 1.03 g/cm³ |
| Hardness | Shore A 19 |
| Tensile Strength | 1.8 MPa |
| Elongation at Break | 600% |
| Service Temperature Range | -40°C to 150°C |
| JIS Standard | JIS A 5758 G-20LM / G-30SLM |
| JIS Classification | SR-1-9030G |
