DOWSIL™ SE 9189 L RTV One-Part Controlled-Low-Molecular-Siloxane Silicone Adhesive/Sealant
DOWSIL™ SE 9189 L RTV is a one-part room-temperature moisture-curing silicone material designed for adhesive bonding, sealing and conformal coating applications. It is available in grey or white and has a flowable consistency suitable for automatic or manual needle dispensing. The product is based on polydimethylsiloxane (PDMS) and features reduced low-molecular siloxane content together with a solvent-free formulation. It cures at room temperature without the need for an oven, helping simplify electronic assembly processes and reduce thermal exposure. After cure, SE 9189 L RTV provides a soft, low-stress elastomeric layer. Typical values include a tack-free time of approximately 8 minutes at 25°C, tensile strength of approximately 2.2 MPa, elongation of approximately 235%, Shore A hardness of approximately 33, and lap shear strength on glass of approximately 1.3 MPa.
Product Details
Product Features
Fast Tack-Free Time:Approx. 8 minutes at 25°C.
One-Part Room-Temperature Cure:No mixing and no oven curing are required.
Soft and Low Stress:Approx. Shore A 33 with 235% elongation helps reduce mechanical stress on electronic components.
Controlled Low-Molecular Siloxane:Designed with reduced low-molecular siloxane content for sensitive electronics applications.
Flame Resistance:UL 94 V-0 rated.
Good Electrical Insulation:Volume resistivity of approximately 9.0×10¹⁴ Ω·cm and dielectric strength of approximately 25 kV/mm.
Product Applications
Electronic Module Assembly:Bonding and fixing of components inside electronic modules.
PCB Component Fixing:Securing components, connectors and other parts on circuit boards.
Conformal Coating:Flexible protective coating for selected electronic assemblies.
Electronic Sealing:Localized sealing where flexibility and insulation are required.
Vibration Damping:Suitable for assemblies exposed to vibration and thermal cycling.
Automated Dispensing:Compatible with automatic or manual needle dispensing systems.
| Item | DOWSIL™ SE 9189 L RTV |
|---|---|
| Product Type | One-Part RTV Silicone Adhesive / Sealant / Conformal Coating |
| Brand | DOWSIL™ |
| Model | SE 9189 L RTV |
| Chemistry | Polydimethylsiloxane (PDMS) |
| Cure Mechanism | Room-Temperature Moisture Cure |
| Appearance | Grey / White |
| Flow | Flowable |
| Viscosity | 23,300 mPa·s (23.3 Pa·s) |
| Cured Density | 1.18 g/cm³ |
| Tack-Free Time | Approx. 8 min at 25°C |
| Tensile Strength | 2.2 MPa |
| Elongation at Break | 235% |
| Hardness | Shore A 33 |
| Lap Shear Strength on Glass | 1.3 MPa |
| Dielectric Strength | 25 kV/mm |
| Volume Resistivity | 9.0×10¹⁴ Ω·cm |
| Dielectric Constant | 3.1 at 1 MHz |
| Dissipation Factor | 0.0004 at 1 MHz |
| Flammability | UL 94 V-0 |
DOWSIL™ SE 9168 RTV One-Part Room-Temperature Moisture-Cure Silicone Adhesive/Sealant

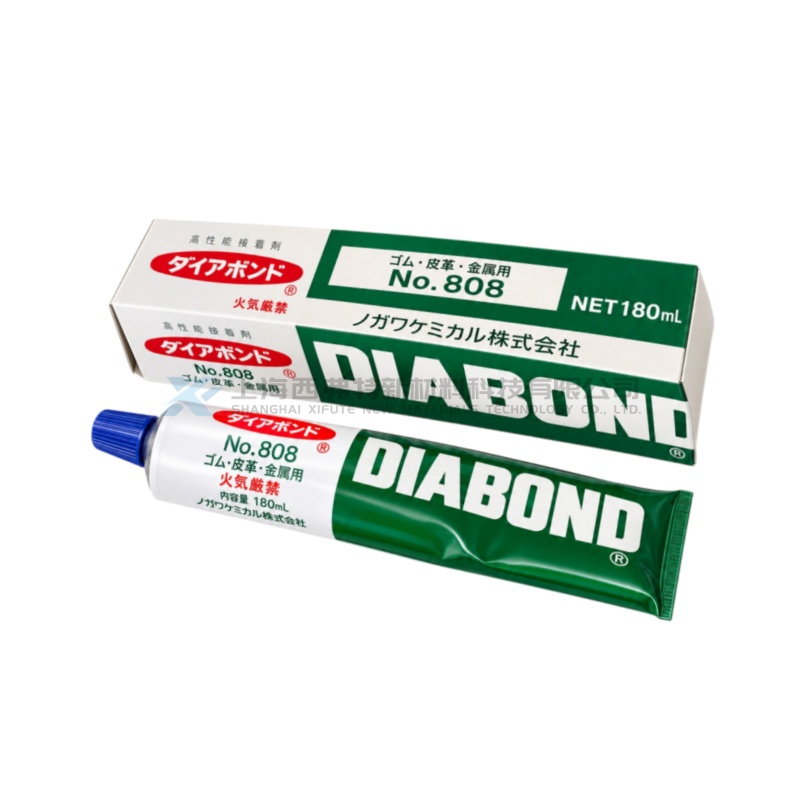

DIABOND No.808 One-Part Chloroprene Rubber Industrial Adhesive

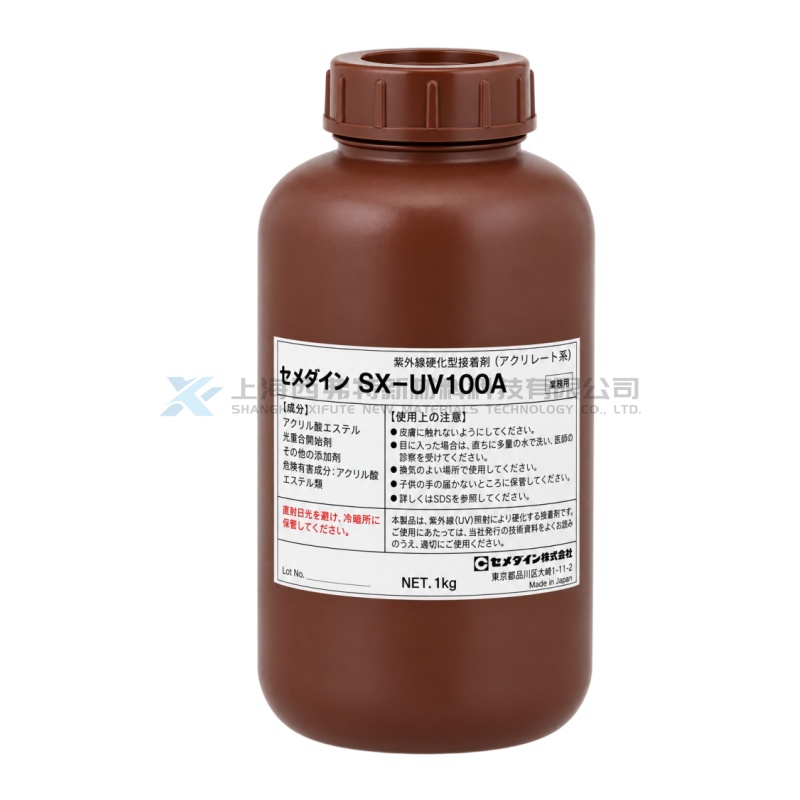

CEMEDINE SX-UV100A One-Part UV-Triggered Dual-Cure Elastic Adhesive

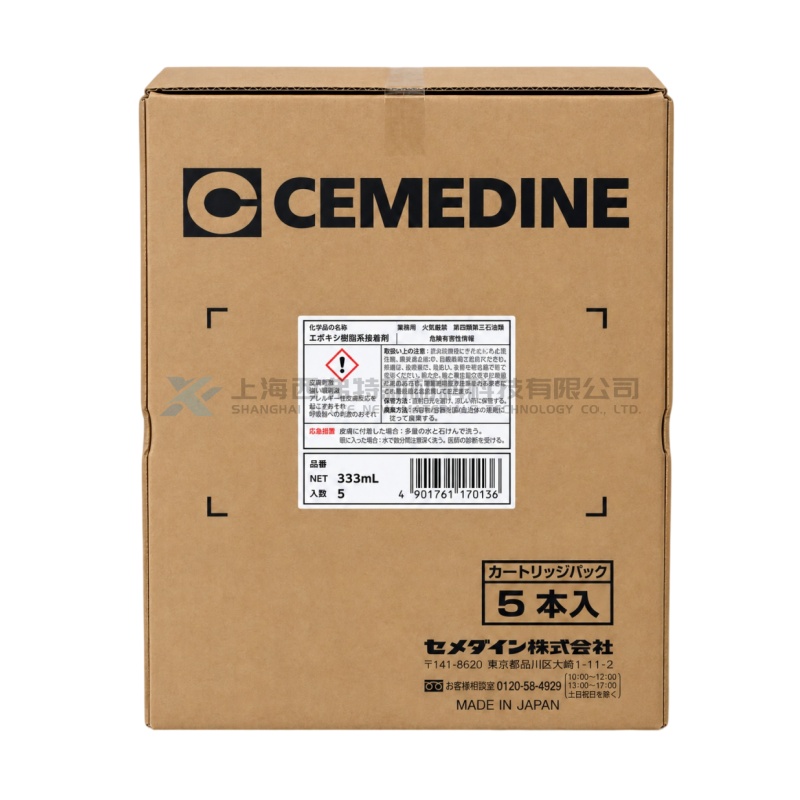

CEMEDINE SX-PPK1000(EXP) One-Part Moisture-Curing Elastic Adhesive for Polypropylene

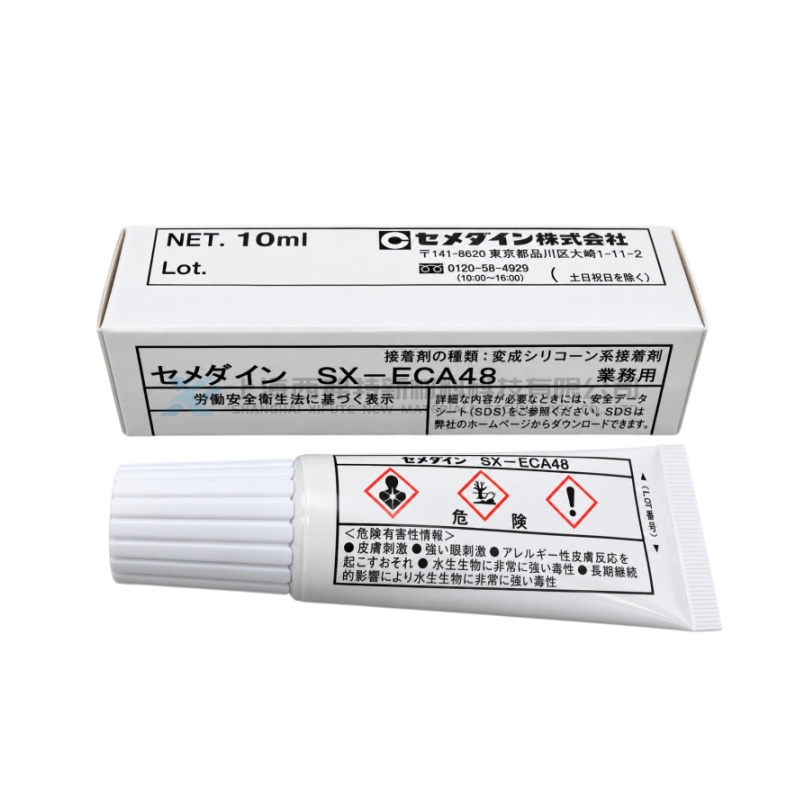

CEMEDINE SX-ECA48 One-Part Low-Temperature-Curing Flexible Conductive Adhesive

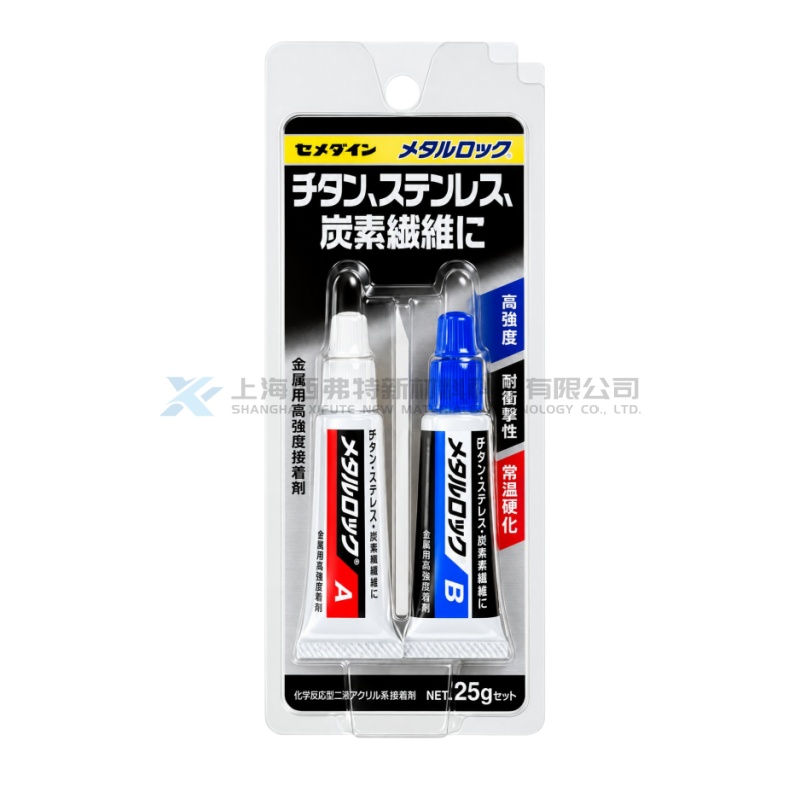

CEMEDINE METAL LOCK Second-Generation Acrylic Structural Adhesive

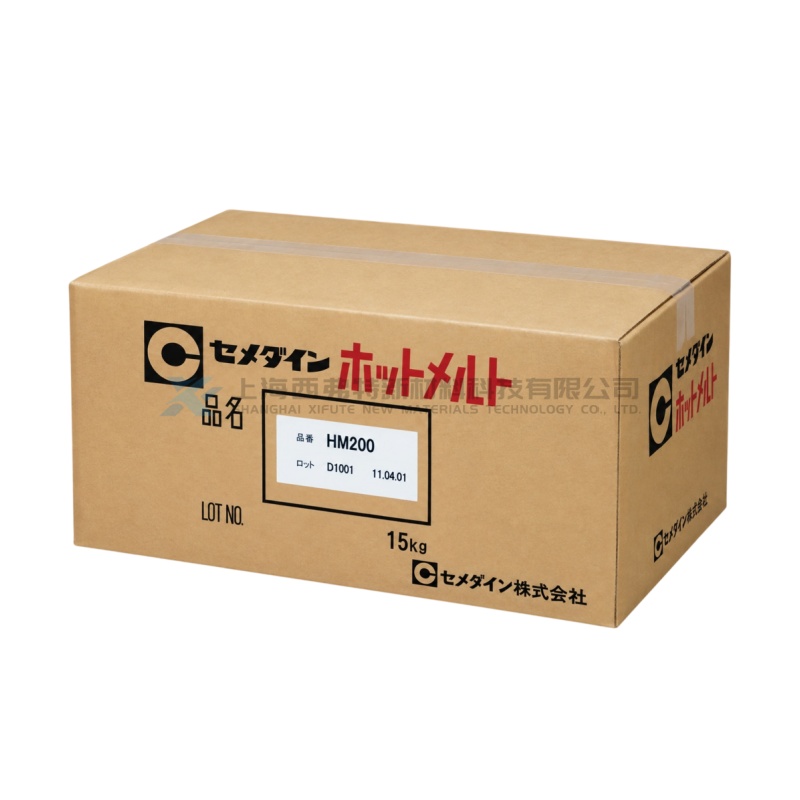

CEMEDINE HM200 Fast-Setting EVA Hot Melt Adhesive for Corrugated Board and Paper Packaging
