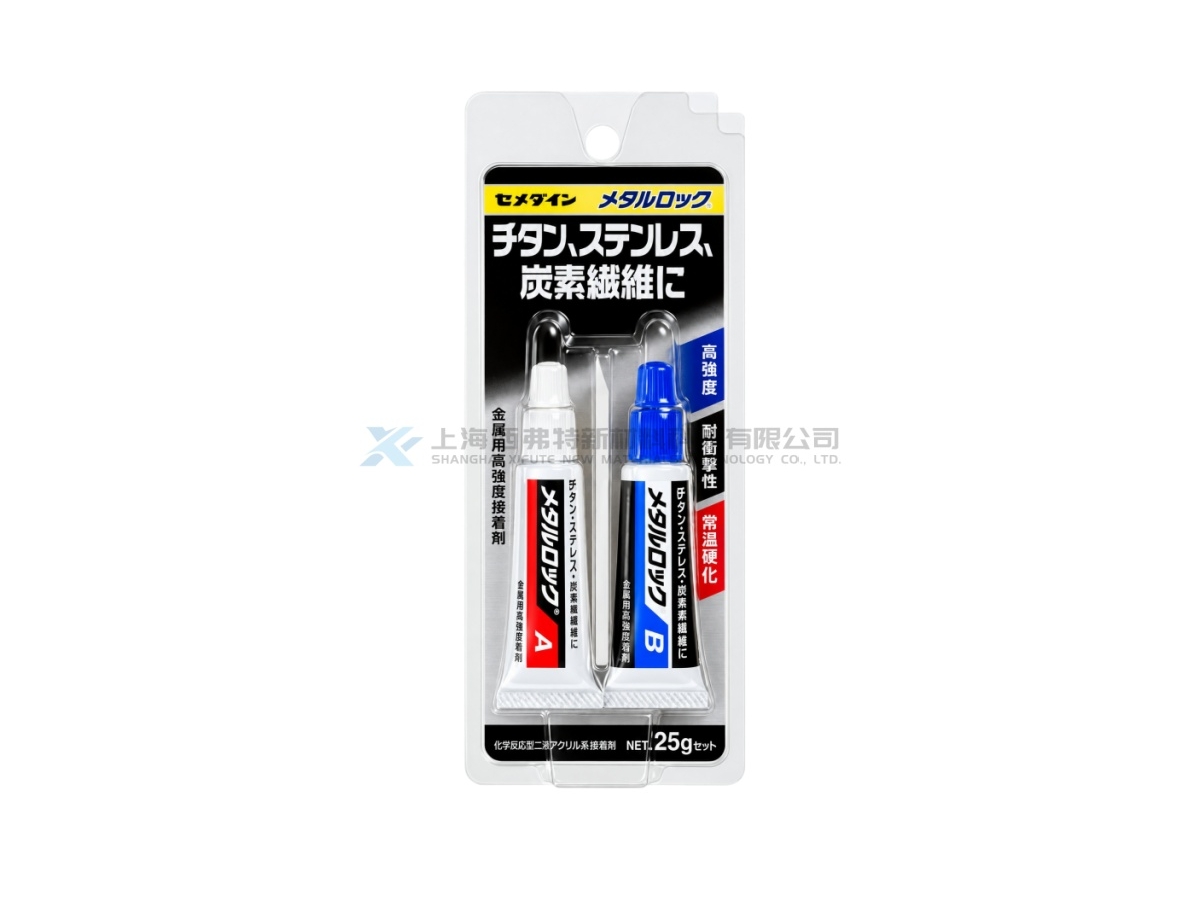

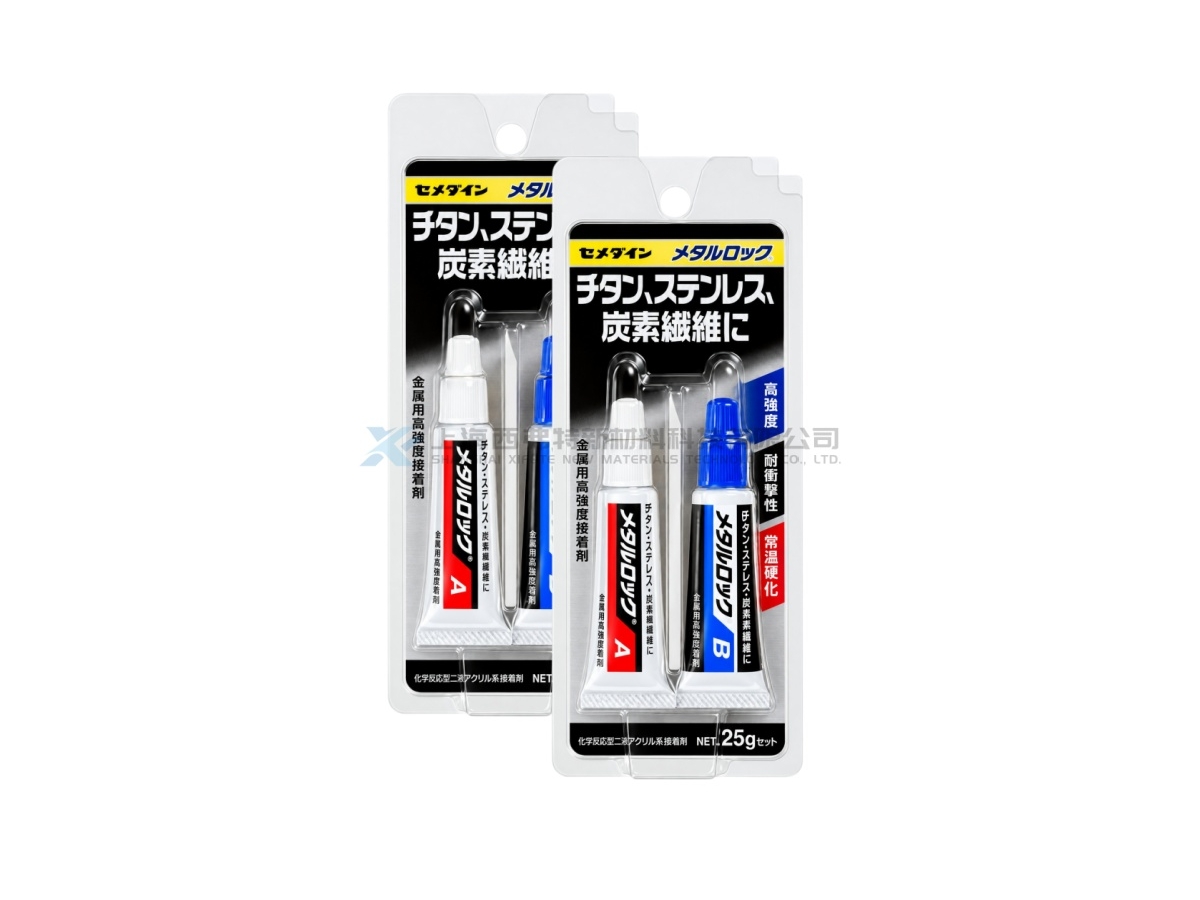

CEMEDINE METAL LOCK Second-Generation Acrylic Structural Adhesive
CEMEDINE METAL LOCK is a second-generation acrylic structural adhesive (SGA) and is classified as the fast-curing grade in the METAL LOCK series. It uses a two-component acrylic resin system mixed at a 1:1 ratio and cures rapidly at room temperature without external heating. It combines high toughness, structural bonding strength, rapid room-temperature curing and low odor. CEMEDINE also states that the METAL LOCK series can develop adhesion even on surfaces with a small amount of oil contamination, making it well suited to metalworking and industrial production environments. At 23°C, both Part A and Part B have a viscosity of approximately 4,000 mPa·s. Pot life is approximately 30 seconds, with a set time of approximately 3 minutes. After curing, tensile shear strength is approximately 23.2 MPa and T-peel strength is approximately 5.0 N/mm.
Product Details
Product Features
Fast Room-Temperature Cure:Approx. 30 sec pot life and 3 min set time at 23°C.
High Structural Strength:Tensile shear strength of approximately 23.2 MPa.
High Toughness:T-peel strength of approximately 5.0 N/mm, providing good resistance to peel loads.
Oil-Tolerant Bonding:Can develop adhesion on surfaces with slight oil contamination.
Low Odor:Lower odor than conventional odorous SGA systems.
Dissimilar Material Bonding:Suitable for combinations such as metals and CFRP; CEMEDINE also notes good adhesion to rigid PVC, FRP and phenolic resin.
Product Applications
Metal-to-CFRP Bonding:Structural joining of metals and carbon-fiber composites.
Automotive & Vehicle Assembly:Bonding of vehicle structures and metal components.
Sheet Metal Bonding:High-strength joining of steel and other metal sheets.
Steel Furniture:Assembly of steel furniture and structural frames.
Sports Equipment:Suitable for golf club assembly and related industrial products.
Plastics & Composite Materials:Suitable for selected materials including rigid PVC, FRP and phenolic resin.
| Item | CEMEDINE METAL LOCK |
|---|---|
| Product Type | Second-Generation Acrylic Structural Adhesive (SGA) |
| Brand | CEMEDINE |
| Model | METAL LOCK |
| Grade | Fast-Curing Type |
| Adhesive System | Two-Part Acrylic Resin |
| Part A Appearance | Light Yellow |
| Part B Appearance | Black in Y600 Technical Data* |
| Part A Viscosity | 4,000 mPa·s at 23°C |
| Part B Viscosity | 4,000 mPa·s at 23°C |
| Mixing Ratio | A:B = 1:1 |
| Pot Life | Approx. 30 sec at 23°C |
| Set Time | Approx. 3 min at 23°C |
| Tensile Shear Strength | 23.2 MPa |
| T-Peel Strength | 5.0 N/mm |
| Hardness | Shore D 68 |
| Glass Transition Temperature | 83°C |
| Elastic Modulus | 767 MPa |
| Breaking Strength | 16.2 MPa |
| Elongation at Break | 26% |
| SDS Part A Density | 1.00 g/cm³ |
| SDS Part B Density | 1.00 g/cm³ |
| Storage Temperature | 5°C–25°C |
