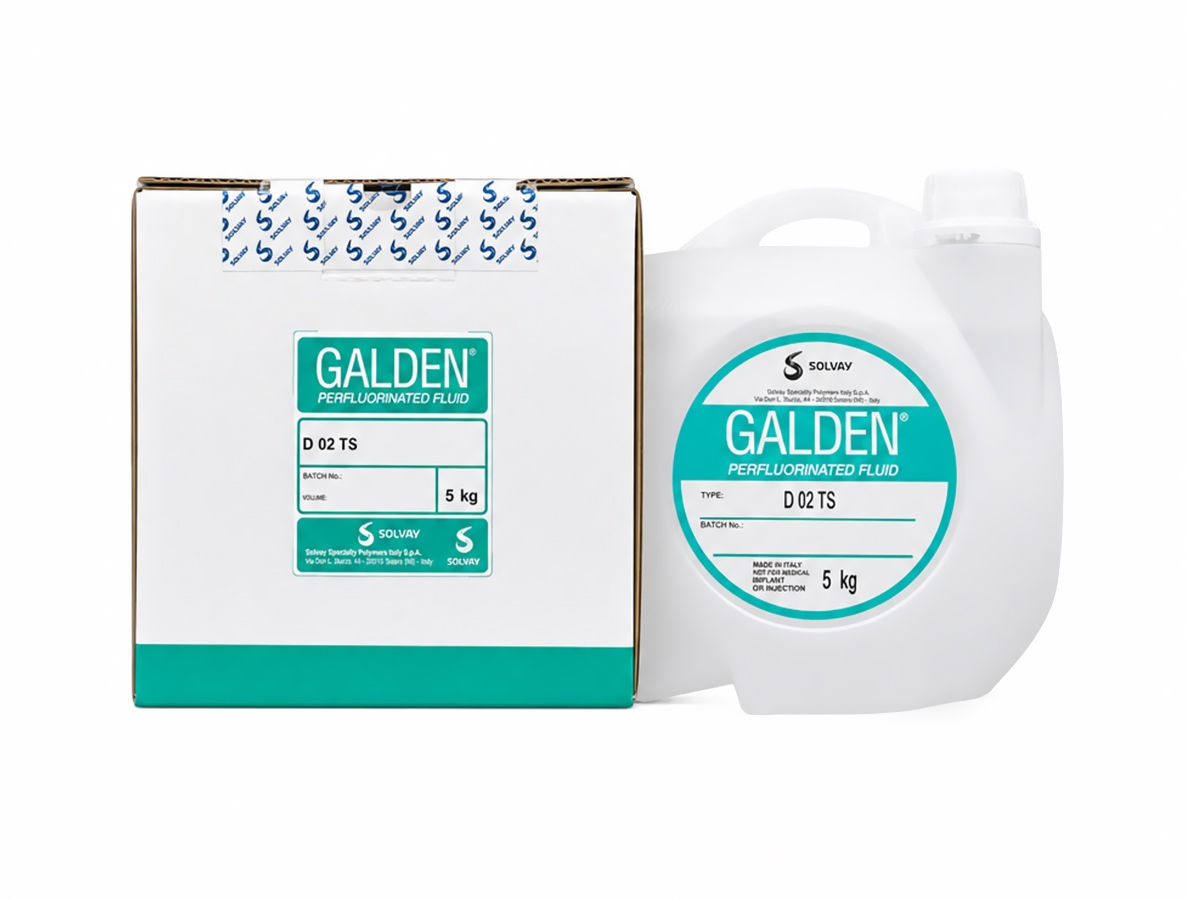

Galden® D02TS PFPE
Galden® D02TS is a PFPE perfluoropolyether electronic test fluid manufactured by Solvay. It is designed as a one-liquid system that can replace conventional two-liquid systems for thermal shock and hermeticity testing of defense electronic products in accordance with MIL-STD-883 and MIL-STD-202.
Product Details
Product Features
High boiling point and low pour point
Low viscosity
Low evaporation loss
Excellent thermal conductivity
Excellent electrical insulating properties
High chemical and thermal stability
High level of safety
Optimized for one-liquid systems
Excellent material compatibility
Applicable Industries / Equipment
Semiconductor Industry: Thermal shock test equipment, hot-and-cold shock test systems, and reliability test equipment.
Electronic Components Industry: Thermal shock test equipment, electronic reliability test systems, and temperature cycling test equipment.
Military and Defense Electronics Industry: MIL-standard thermal shock test equipment and hot-and-cold shock test systems.
Precision Manufacturing Industry: Reliability test equipment and temperature shock test systems.
Reliability Testing Laboratories: Thermal shock test chambers, hot-and-cold shock test equipment, and electronic reliability testing systems.
| Item | Galden® D02TS |
|---|---|
| Product Type | PFPE Fully Fluorinated Electronic Leak Test Fluid |
| Main Applications | Thermal Shock Testing and Electronic Leak Detection |
| Boiling Point | 165 ℃ |
| Pour Point | -97 ℃ |
| Density（25℃） | 1.77 g/cm³ |
| Density（-54℃） | 1.95 g/cm³ |
| Kinematic Viscosity(25℃） | 1.7 cSt |
| Kinematic Viscosity（-54℃） | 45 cSt |
| Specific Heat Capacity（25℃） | 973 J/kg·℃ |
| Thermal Conductivity（25℃） | 0.07 W/m·℃ |
| Coefficient of Thermal Expansion | 0.0011 cm³/cm³·℃ |
| Surface Tension | 16 dyne/cm |
| Dielectric Strength | 40 kV（2.54 mm gap） |
| Dielectric Constant | 2.1 |
| Volume Resistivity | 1×10¹⁵ Ω·cm |
| Average Molecular Weight | 750 amu |
