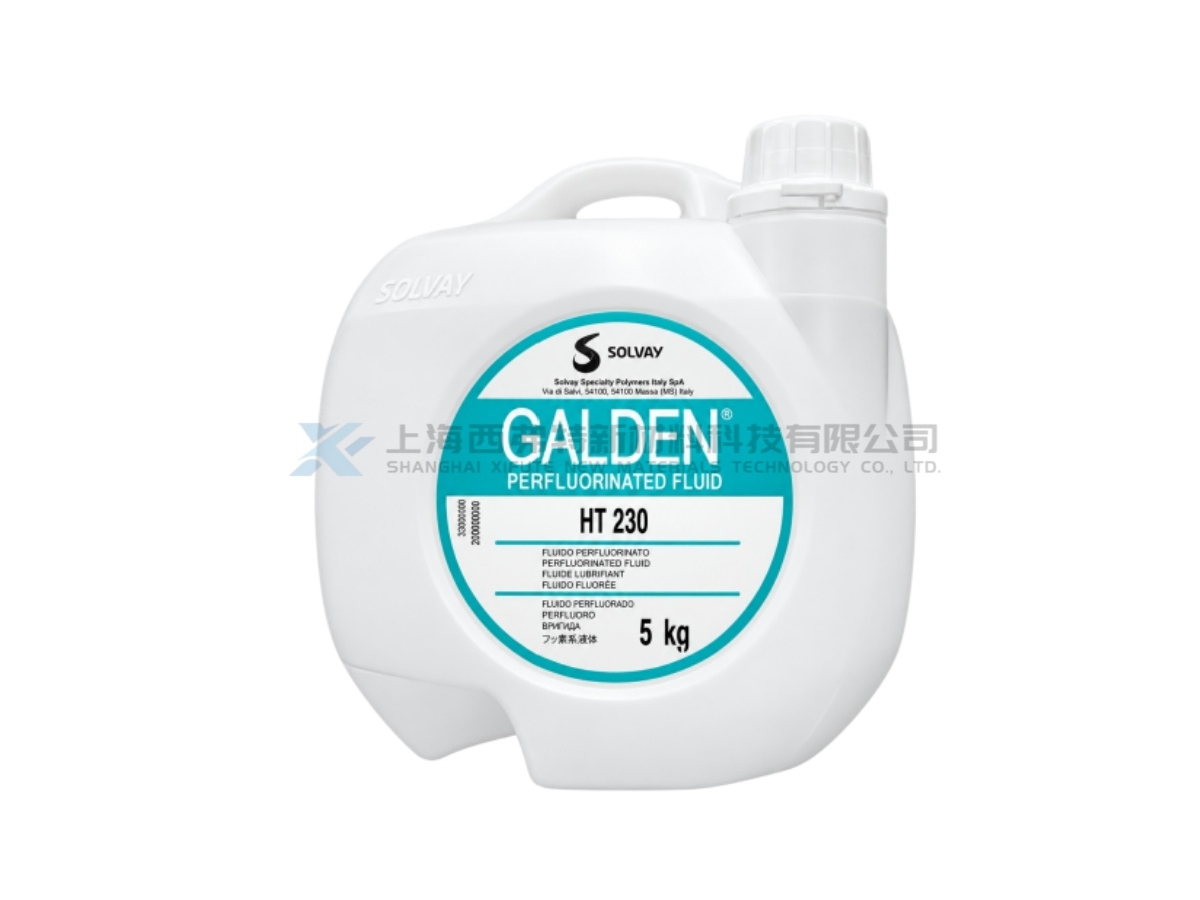

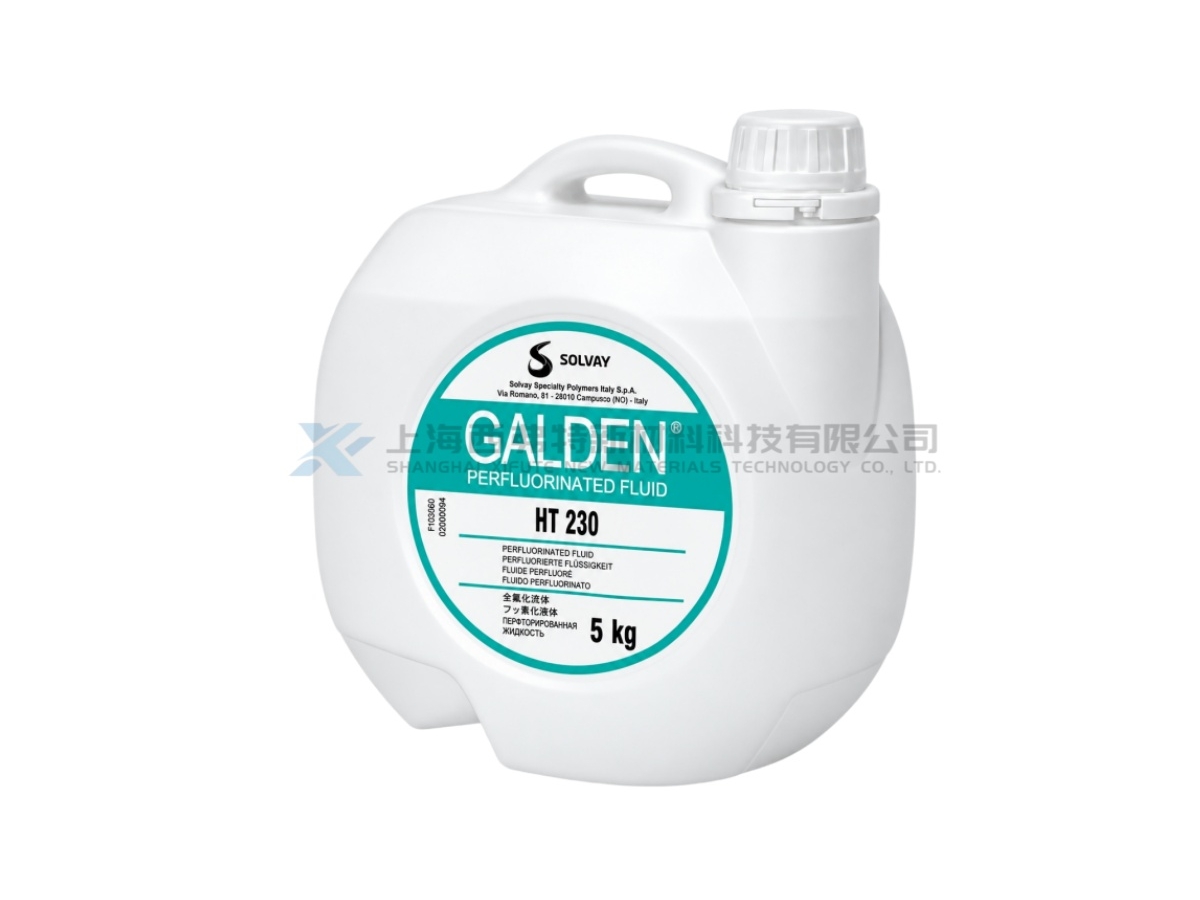

Galden® HT230 PFPE High-Boiling Heat Transfer Fluid
Galden® HT230 is a PFPE (Perfluoropolyether) high-performance heat-transfer fluid in the Galden® HT high-boiling range. Syensqo currently classifies HT230 as a fluorinated PFPE fluid and highlights its dielectric properties, thermal stability, high-temperature resistance and non-flammability. Galden® HT fluids are designed for demanding thermal-management applications including semiconductor processing, chemical and pharmaceutical systems, vapor-phase heating, transformer and supercomputer cooling, recirculating chillers and nuclear applications. HT230 has a typical boiling point of 230°C, helping reduce evaporation losses during high-temperature service. It also provides excellent electrical insulation, with a typical dielectric strength of 40 kV at a 2.54 mm gap, dielectric constant of approximately 1.94, and volume resistivity of approximately 6×10¹⁵ Ω·cm.
Product Details
Product Features
Excellent Thermal Stability:PFPE chemistry provides reliable performance for demanding high-temperature heat-transfer systems.
Excellent Chemical Inertness:Compatible with many common construction materials and helps minimize decomposition residues and corrosion-related problems.
High Dielectric Strength:Excellent electrical insulation makes it suitable for semiconductor and electronic thermal-management applications.
Non-Flammable:Galden® HT PFPE fluids have no flash point, fire point or auto-ignition point.
Low Evaporation Loss:The 230°C boiling point helps reduce fluid losses in elevated-temperature systems.
Product Applications
Semiconductor Chillers:Widely used in semiconductor thermal-management and chiller systems.
High-Temperature Recirculating Systems:Suitable for controlled heating and cooling loops requiring stable high-temperature operation.
Vapor-Phase Heating:Applicable to vapor-phase heating processes using a stable high-boiling medium.
Electronic Equipment Cooling:Suitable for supercomputers, servers and other high-power electronic systems.
Chemical and Pharmaceutical Systems:For temperature-control systems requiring chemical inertness and stable thermal performance.
| Item | Galden® HT230 |
|---|---|
| Product Type | PFPE Heat Transfer Fluid |
| Brand | Galden® |
| Model | HT230 |
| Chemical Family | PFPE / Perfluoropolyether |
| Physical Form | Liquid |
| Boiling Point | 230°C |
| Pour Point | -77°C |
| Density @ 25°C | 1.82 g/cm³ |
| Kinematic Viscosity @ 25°C | 4.4 cSt |
| Vapor Pressure @ 25°C | 0.03 torr |
| Specific Heat | 0.23 cal/(g·°C) |
| Heat of Vaporization at Boiling Point | 15 cal/g |
| Refractive Index | 1.283 |
| Thermal Expansion Coefficient | 0.0011 cm³/(cm³·°C) |
| Surface Tension | 19 dyne/cm |
| Thermal Conductivity | 0.065 W/(m·K) |
| Dielectric Strength (2.54 mm gap) | 40 kV |
| Dielectric Constant | 1.94 |
| Volume Resistivity | 6×10¹⁵ Ω·cm |
| Average Molecular Weight | 1,020 amu |
| Dissipation Factor @ 1 kHz | 2×10⁻⁴ |
| Water Solubility | <10 ppm (wt) |
| Air Solubility | 26 cm³ gas / 100 cm³ liquid |
