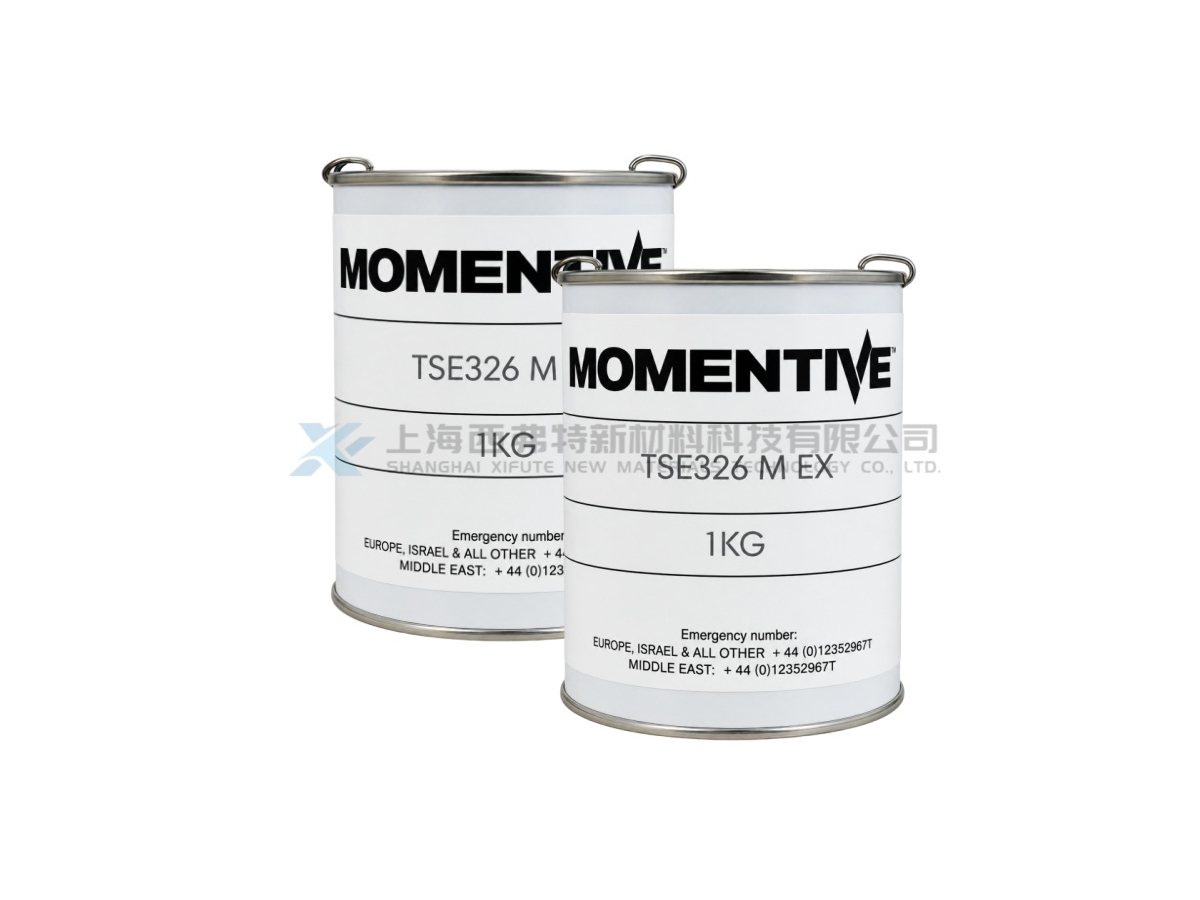

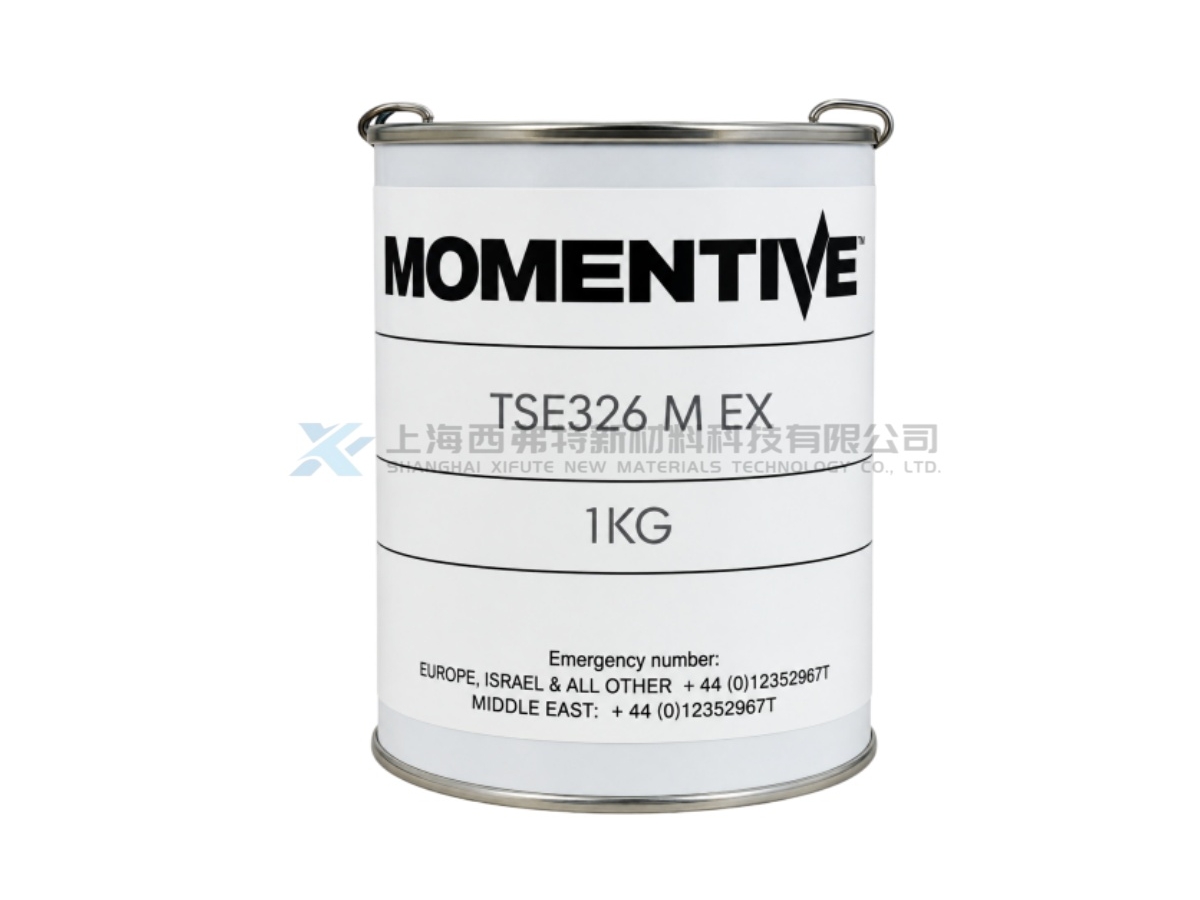

Momentive TSE326M One-Component Heat-Curing Heat-Resistant Liquid Silicone Rubber 1 kg / 5 kg
TSE326M is a one-component heat-curing, heat-resistant adhesive liquid silicone rubber from Momentive. Before curing, it is a reddish-brown flowable liquid. After heating, it cures into a rubber-like material and bonds to a variety of substrates. The product provides good adhesion to metals, plastics, ceramics and glass, making it suitable for bonding, sealing and coating applications in heat-exposed industrial components. Typical curing schedules include 120°C for 3 hours, 150°C for 1.5 hours, and 200°C for 0.5 hour. Actual curing time may vary depending on the thermal mass of the workpiece and the performance of the heating equipment.
Product Details
Product Features
Fast Heat Curing:Cures and bonds when heated, with a typical curing condition of 200°C for 0.5 hour.
Excellent Heat Resistance:Heat resistance is one of the main product features, and the data sheet includes long-term performance data at 250°C.
Adhesion to Multiple Substrates:Bonds well to aluminum, copper, brass, stainless steel, nickel plating, PPS, PBT, epoxy resin, polyester, glass, ceramics and heat-vulcanized silicone rubber.
Electrical Insulation:Provides a volume resistivity of 2.0×10¹⁵ Ω·cm and dielectric strength of 22 kV/mm after curing.
Flexible Rubber-Like Cured Material:Typical cured properties include Shore A 38 hardness, 2.9 MPa tensile strength and 180% elongation at break.
Product Applications
Heating Appliances and Heaters:For bonding, sealing and coating heat-generating appliances and heater components.
Steam Irons:Suitable for bonding and sealing applications in steam irons.
Metal and Non-Metal Bonding:Applicable to aluminum, copper, stainless steel, plastics, glass and ceramic substrates.
Electrical Insulation and Protection:Suitable for industrial bonding and coating applications requiring good electrical insulation.
| Item | TSE326M |
|---|---|
| Product Type | One-Component Heat-Curing Heat-Resistant Liquid Silicone Rubber |
| Brand | Momentive |
| Model | TSE326M |
| Uncured Appearance | Reddish-Brown Flowable Liquid |
| Viscosity @ 23°C | 16 Pa·s |
| Standard Cure Condition | 200°C × 0.5 h |
| Cured Appearance | Reddish-Brown Rubber |
| Density @ 23°C | 1.46 g/cm³ |
| Hardness | Shore A 38 |
| Tensile Strength | 2.9 MPa |
| Elongation at Break | 180% |
| Lap Shear Adhesion | 1.5 MPa on Aluminum |
| Coefficient of Linear Expansion | 1.7×10⁻⁴ /K |
| Thermal Conductivity | 0.41 W/(m·K) |
| Volume Resistivity | 2.0×10¹⁵ Ω·cm |
| Dielectric Strength | 22 kV/mm |
| Relative Permittivity @ 60Hz | 3.3 |
| Dissipation Factor @ 60Hz | 0.02 |
| Cure Schedule 1 | 120°C × 3 h |
| Cure Schedule 2 | 150°C × 1.5 h |
| Cure Schedule 3 | 200°C × 0.5 h |
| Package Size | 1 kg Metal Can / 5 kg Metal Can |
| 1 kg Packing | 10 cans/case |
| 5 kg Packing | 4 cans/case |
| Recommended Storage | Refrigerated at 0°C to 10°C |
Shin-Etsu KE-4898-T Low-Molecular-Siloxane-Reduced Translucent Silicone Adhesive Sealant

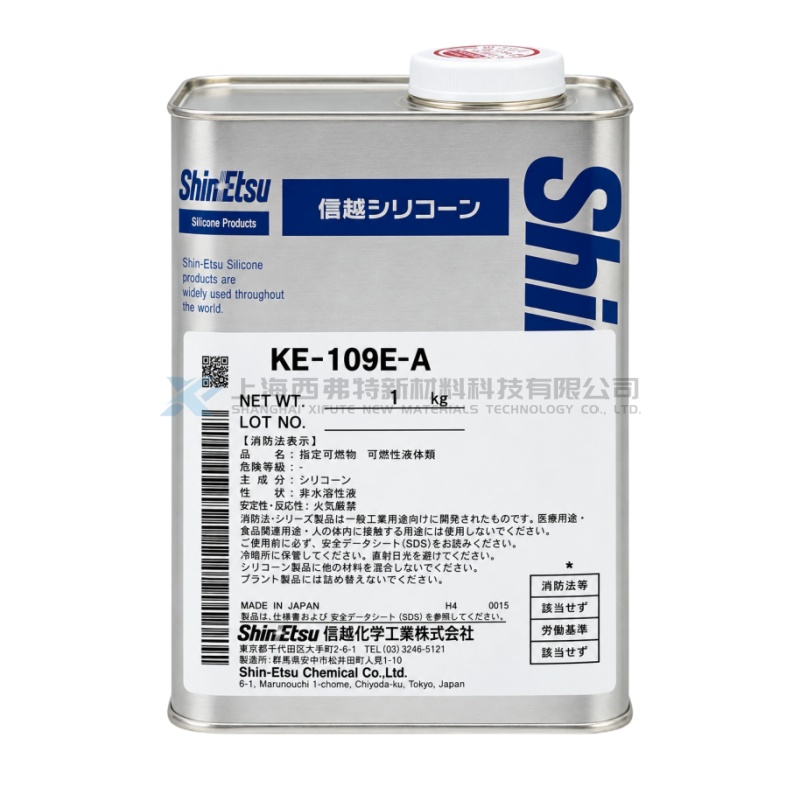

Shin-Etsu KE-109E A/B Two-Component Transparent Low-Temperature-Cure Silicone Potting Rubber

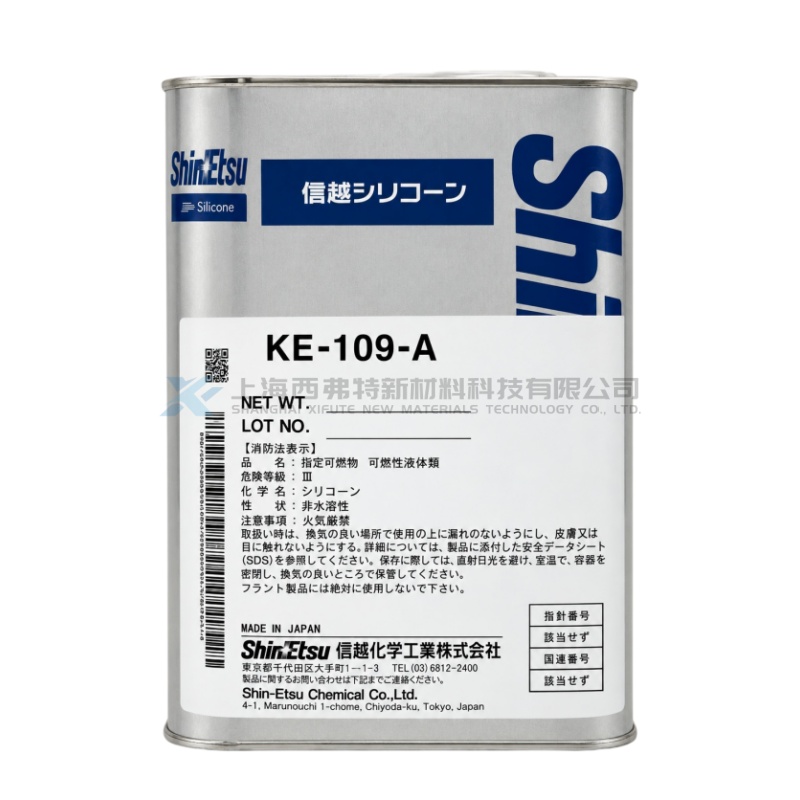

Shin-Etsu KE-109(A/B) Two-Component Transparent Addition-Cure Silicone Rubber

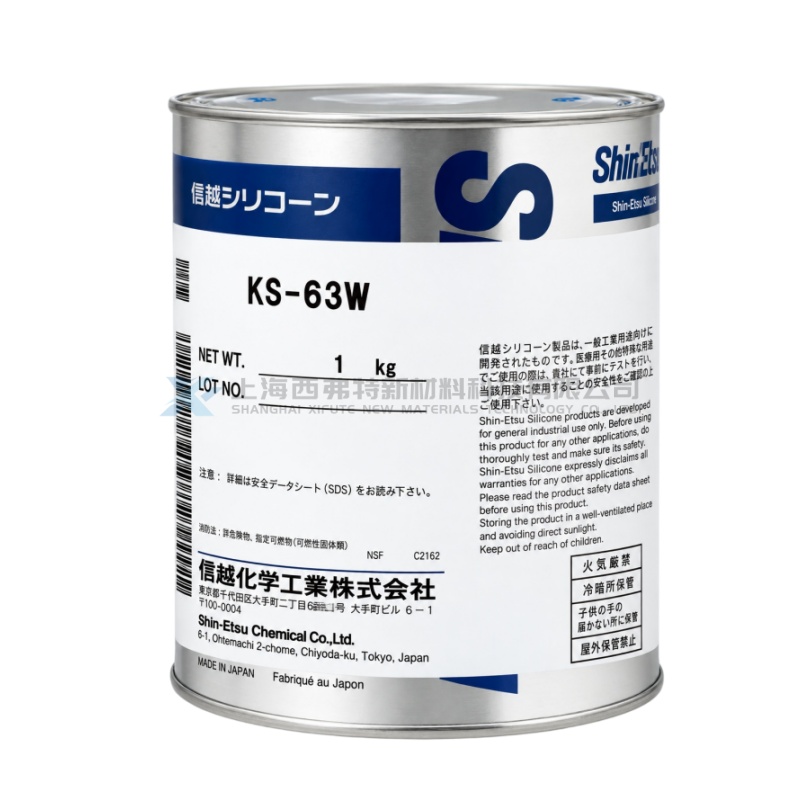

Shin-Etsu KS-63W Silicone Oil Compound for Electrical Insulation and Sealing

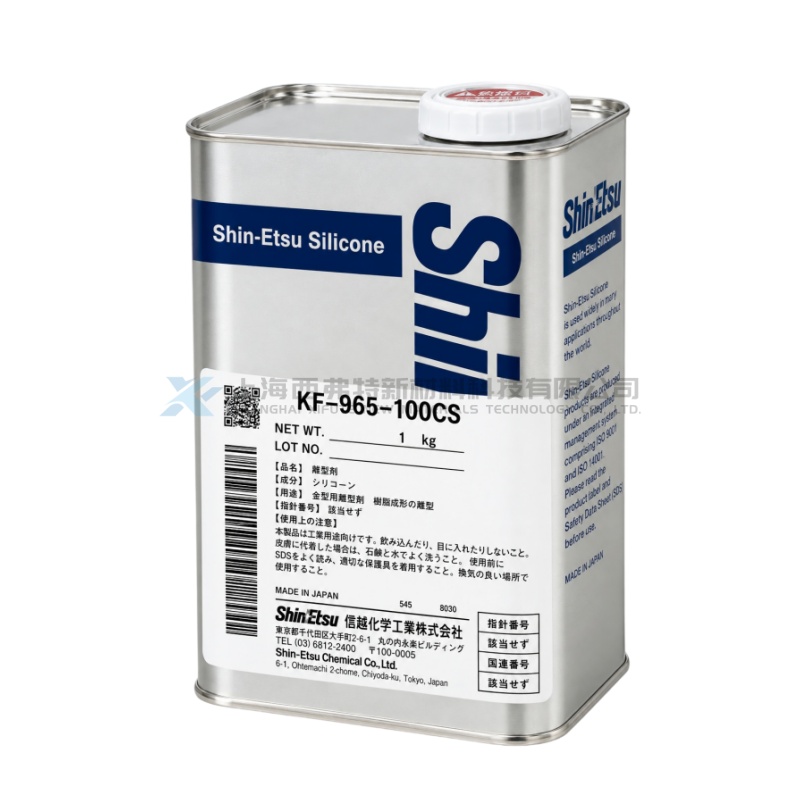

Shin-Etsu KF-965 Heat-Resistant Dimethyl Silicone Release Agent
Shin-Etsu KF-351A Polyether-Modified Silicone Fluid

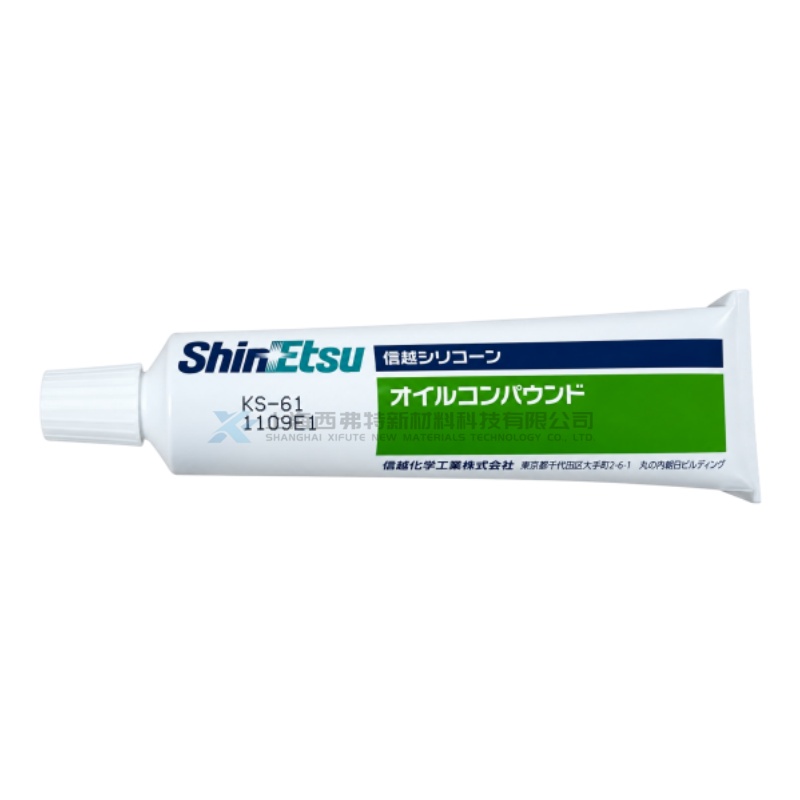

ShinEtsu KS-61

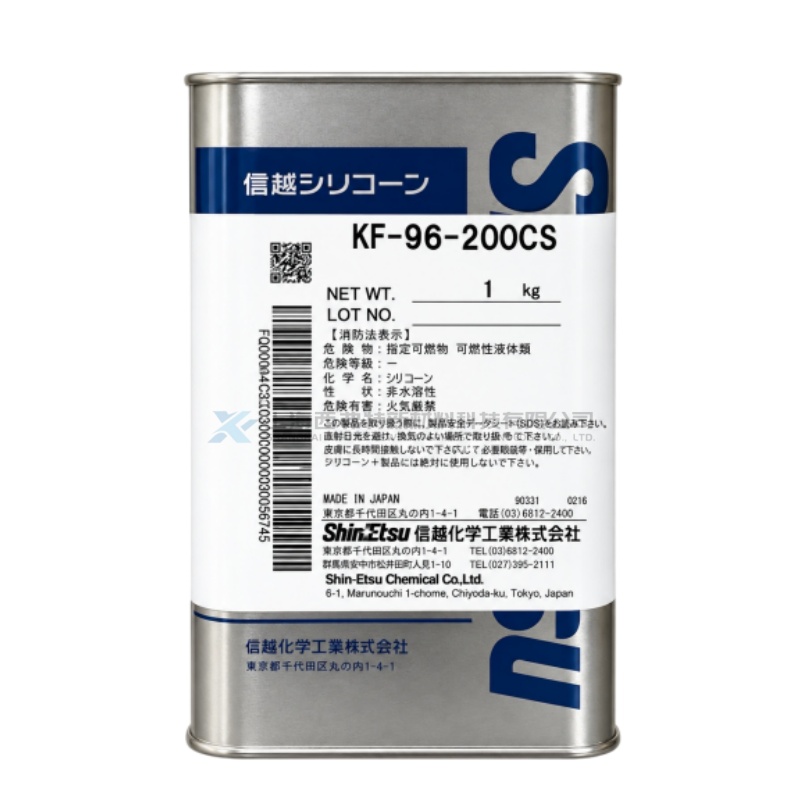

KF-96 -200CS
ShinEtsu KR-251

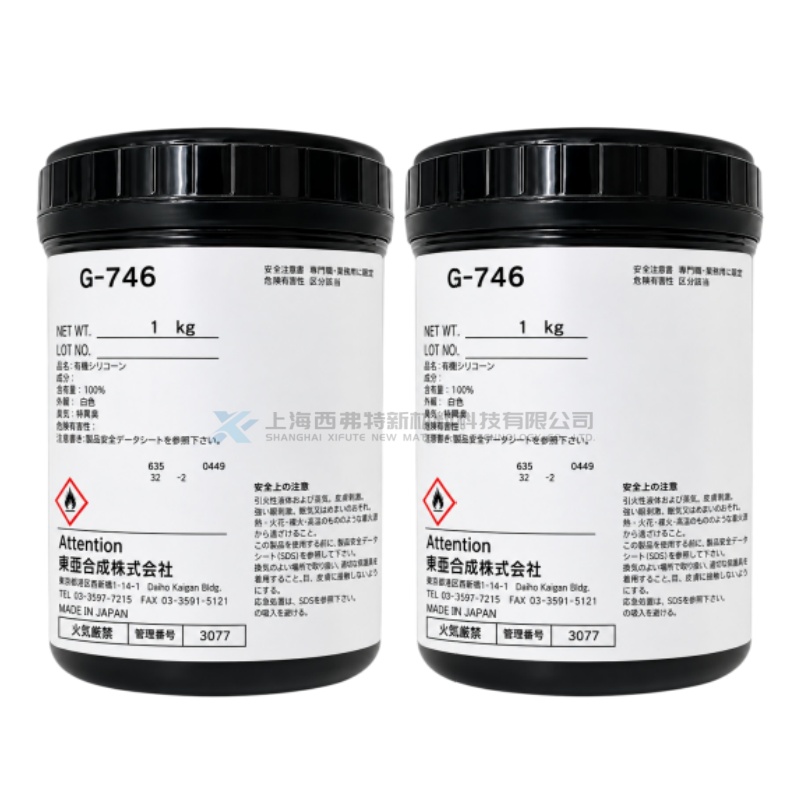

G-746 Thermal silicone grease

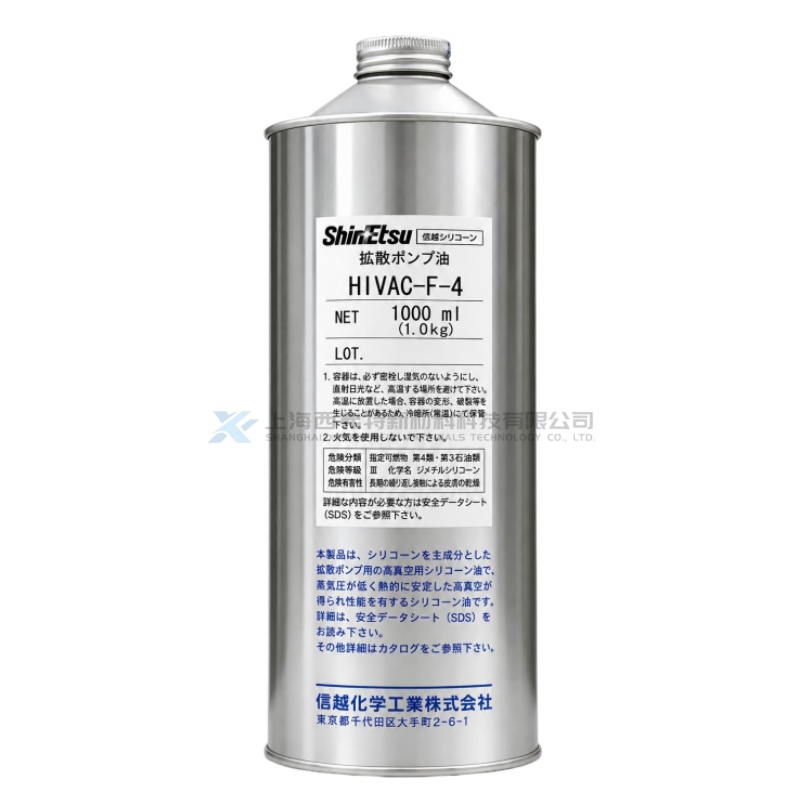

HIVAC F-4 High Vacuum Diffusion Pump Oil
