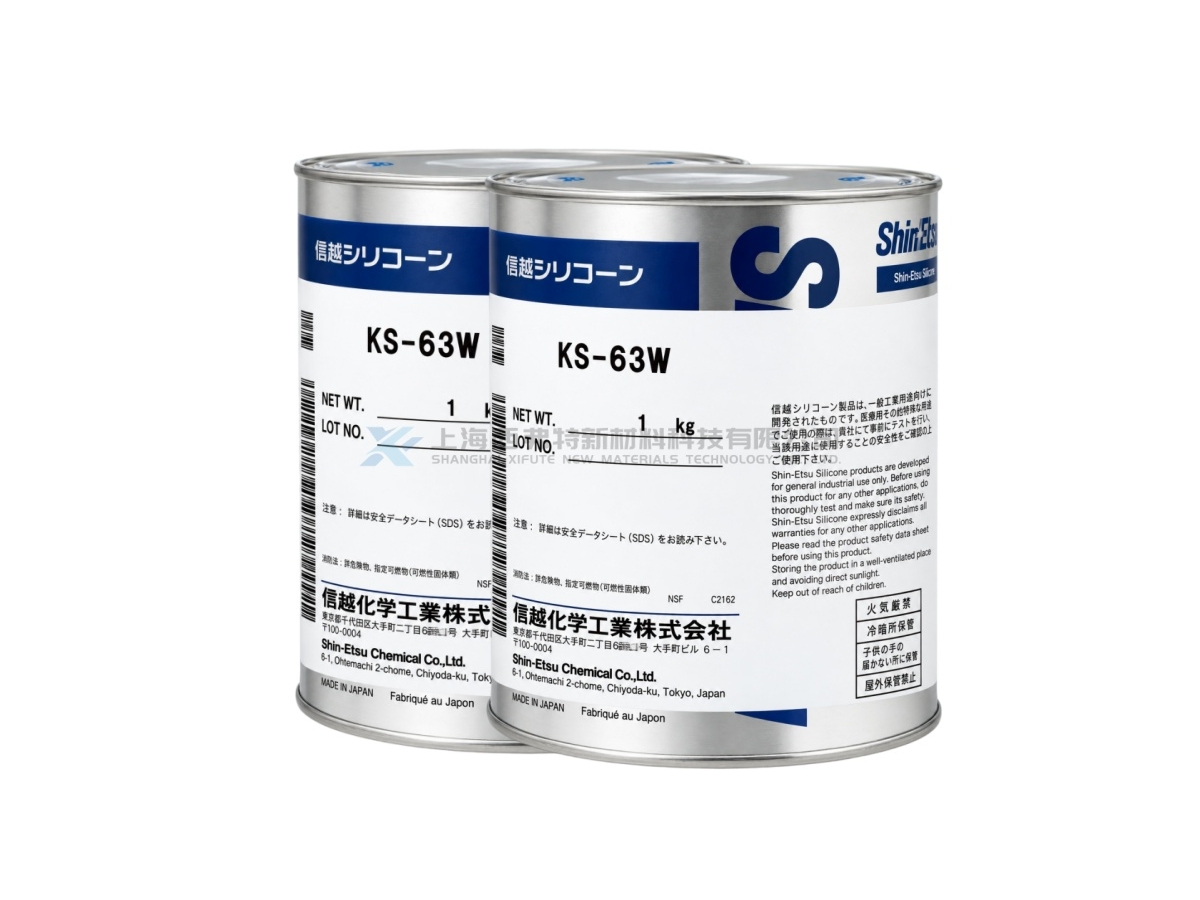

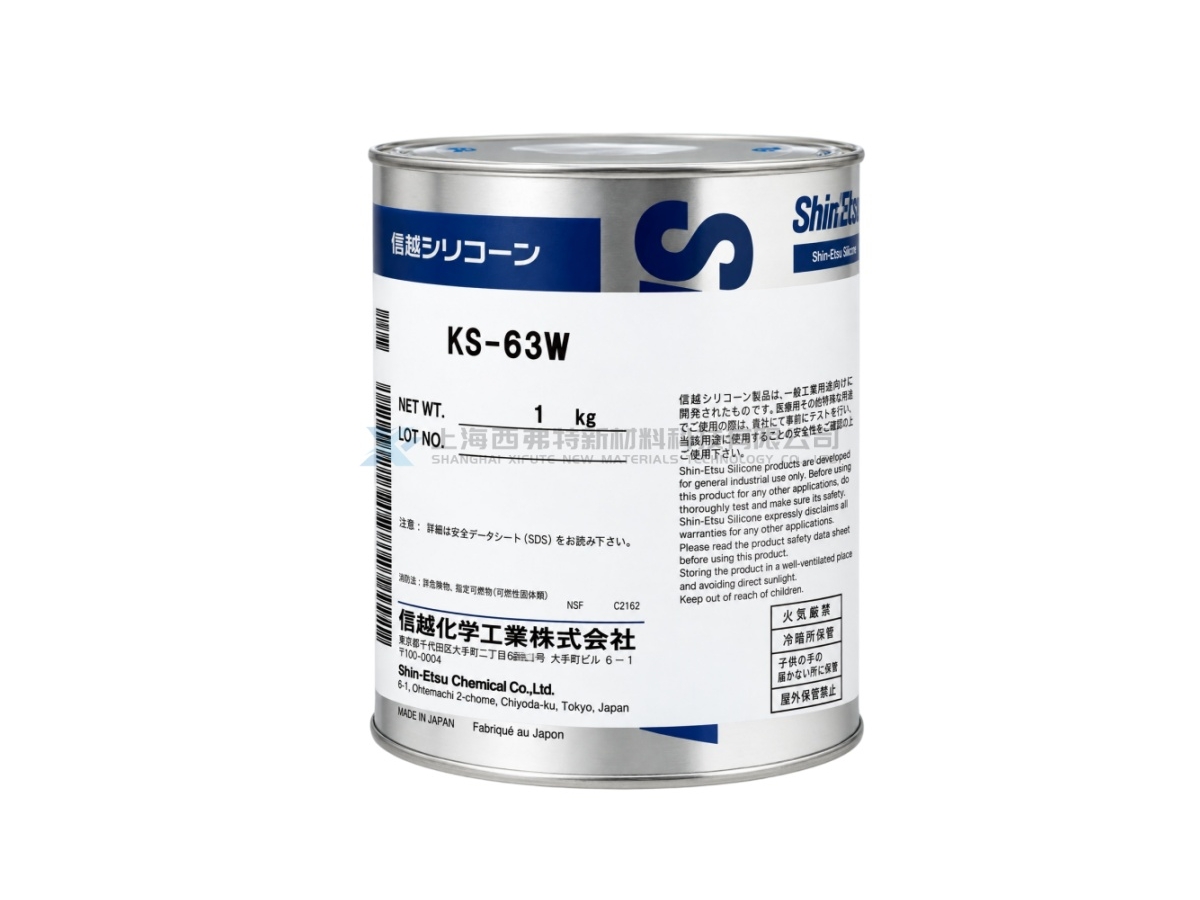

Shin-Etsu KS-63W Silicone Oil Compound for Electrical Insulation and Sealing
KS-63W is a general-purpose silicone oil compound for electrical insulation and sealing from Shin-Etsu Silicone. It has a white grease-like appearance and provides excellent electrical properties, water repellency and chemical stability, making it particularly suitable for electrical and electronic equipment. The product maintains stable performance over a wide temperature range from -50°C to 200°C. Its typical worked consistency at 25°C is approximately 225, with a specific gravity of about 1.02. KS-63W also offers high volume resistivity and low dielectric loss, supporting insulation, moisture protection and leakage prevention in electronic assemblies. Its low-molecular-weight silicone content ΣD3–D10 is controlled to 100 ppm or less.
Product Details
Product Features
Excellent Electrical Insulation:Typical dielectric breakdown strength is approximately 3.8 kV/0.1 mm, with volume resistivity of about 130 TΩ·m.
Good Water Repellency:Helps protect electrical parts against moisture and water ingress.
High Chemical Stability:Chemically inert silicone compound suitable for long-term sealing and protection.
Wide Temperature Range:Suitable for approximately -50°C to 200°C.
Low Volatility:Low volatile loss helps maintain long-term sealing and electrical insulation performance.
Controlled Low-Molecular Siloxanes:ΣD3–D10 content is 100 ppm or less.
Product Applications
Electrical Insulation:For terminals, electrical components and other areas requiring insulation protection.
Electronic Equipment Sealing:For connectors, housings and electronic assemblies requiring moisture-resistant sealing.
Moisture and Water Protection:Suitable for protecting electrical parts from humidity and water exposure.
Connector & Terminal Protection:For connection areas requiring both insulation and moisture resistance.
General Industrial Electrical Equipment:The Shin-Etsu SDS identifies its recommended use as electrical insulation and sealing for general industrial applications.
| Item | KS-63W |
|---|---|
| Product Type | Silicone Oil Compound for Electrical Insulation / Sealing |
| Brand | Shin-Etsu |
| Model | KS-63W |
| Appearance | White Grease |
| Specific Gravity at 25°C | Approx. 1.02 |
| Worked Consistency at 25°C | 225 |
| Oil Separation | 2.9% |
| Dielectric Breakdown Strength | 3.8 kV / 0.1 mm |
| Volume Resistivity | 130 TΩ·m |
| Dielectric Constant | 2.84 at 60 Hz |
| Dissipation Factor | 2.4×10⁻⁴ at 60 Hz |
| Thermal Conductivity | 0.19 W/m·K |
| Volatile Content | 0.1% |
| Volatility Test Condition | 200°C × 24 h |
| Low-Molecular Siloxanes ΣD3–D10 | ≤100 ppm |
| Service Temperature Range | -50°C to 200°C |
