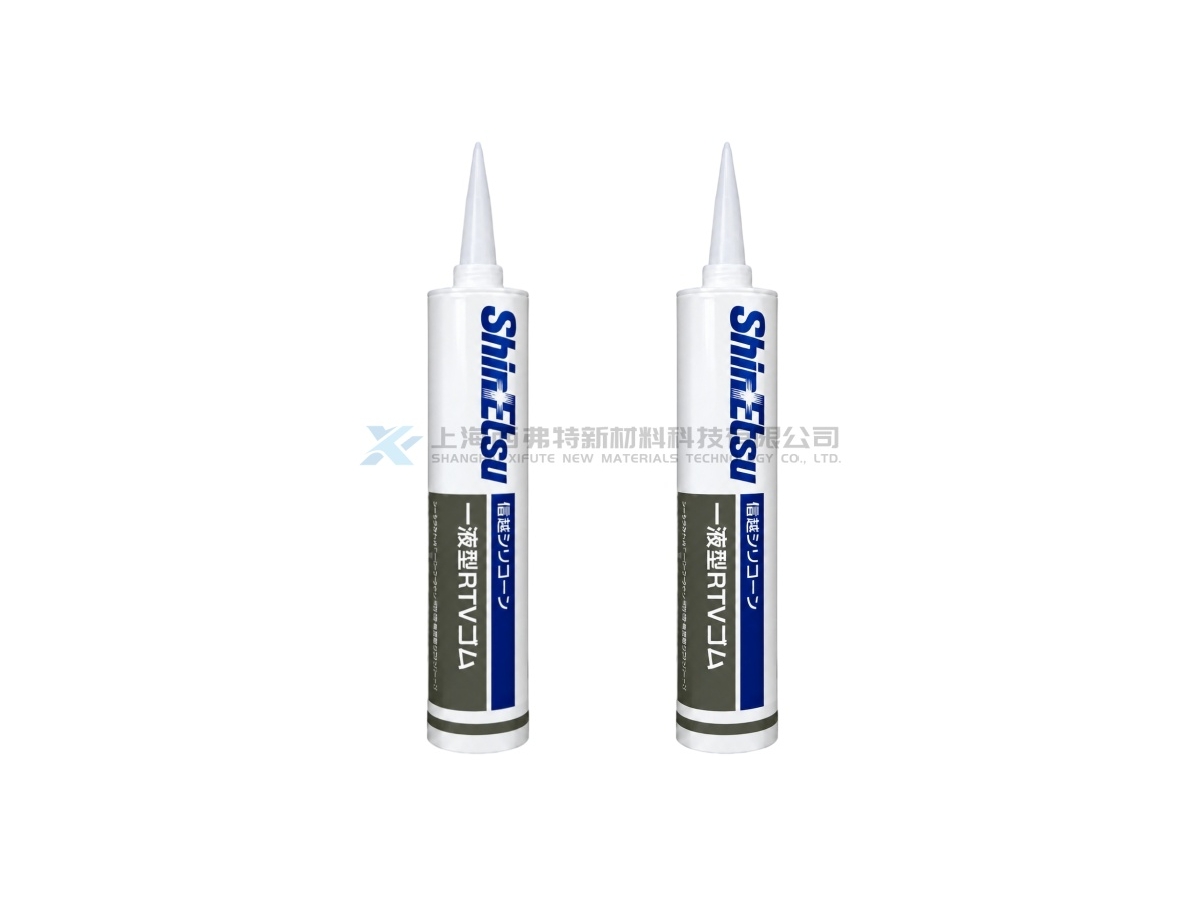

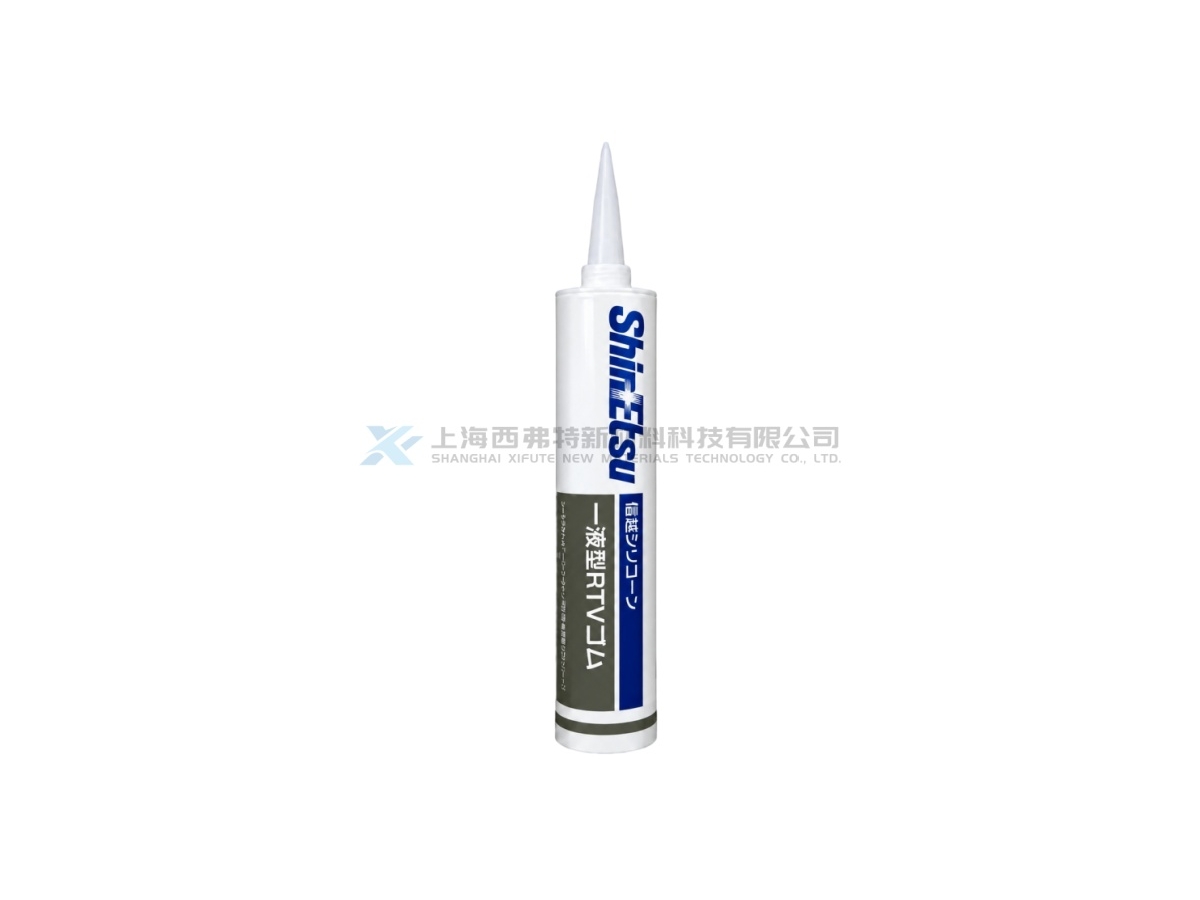

Shin-Etsu Pure Sealant S High Cleanliness RTV Silicone Sealant
Shin-Etsu Pure Sealant S is a one-component room-temperature curing silicone sealing material developed for applications requiring high cleanliness. It reacts with moisture in the air and cures at room temperature to form an elastic sealing material with excellent adhesion. Pure Sealant S-type is an acetone-type RTV silicone sealant designed for sealing clean room joints and airtight sealing around air filters in semiconductor manufacturing and precision electronic material production environments. The product features extremely low low-molecular-weight siloxane emission, helping reduce molecular contamination risks in clean manufacturing environments. The cured product shows approximately 40 ppm low-molecular-weight siloxane content. Pure Sealant S is a one-component material that can be directly applied from cartridges without mixing. It provides excellent durability, heat resistance, weather resistance and adhesion to various substrates.
Product Details
Product Features
High Cleanliness Performance:Extremely low low-molecular-weight siloxane emission for clean room applications
Low Organic Contamination Design:Reduces contamination risks in semiconductor manufacturing
Excellent Adhesion:Adheres well to most common substrates
One-Component Application:No mixing required, easy cartridge application
Excellent Durability:Provides heat resistance, weather resistance and long-term stability
Elastic Sealing Performance:Forms flexible silicone rubber after curing
Suitable for Precision Manufacturing:Designed for semiconductor and clean environment applications
Product Applications
Semiconductor Manufacturing Equipment:Airtight sealing of semiconductor production equipment
Clean Room Facilities:Sealing of interior joints and structural connections
Precision Electronics Manufacturing:Protection and sealing in electronic material production areas
Air Filter Systems:Sealing around clean room air filters
Equipment Housing and Components:Low-contamination sealing applications
High Cleanliness Industrial Equipment:Applications requiring strict chemical contamination control
| Item | Pure Sealant S |
|---|---|
| Product Type | One Component Silicone Sealant |
| Brand | Shin-Etsu |
| Model | Pure Sealant S-type |
| Curing Method | Moisture Room Temperature Curing |
| Type | Acetone Type |
| Appearance Before Curing | Paste |
| Fluidity | None |
| Tack-Free Time | 3 min (23℃/50%RH) |
| Cured Condition | Elastic Rubber |
| Density (23℃) | 1.05 g/cm³ |
| Hardness Durometer A | 37 |
| Elongation at Break | 360% |
| Tensile Strength | 2.60 MPa |
| Modulus at 50% Elongation | 0.50 N/mm² |
| Tensile Stress at Maximum Load | 0.70 N/mm² |
| Elongation at Maximum Load | 100% |
| Cohesive Failure | 100% |
| Low-Molecular-Weight Siloxane Content | 40 ppm |
| Colors | Light Gray / Ivory / White |
| Packaging | 330ml Cartridge (20 pcs/box) |
