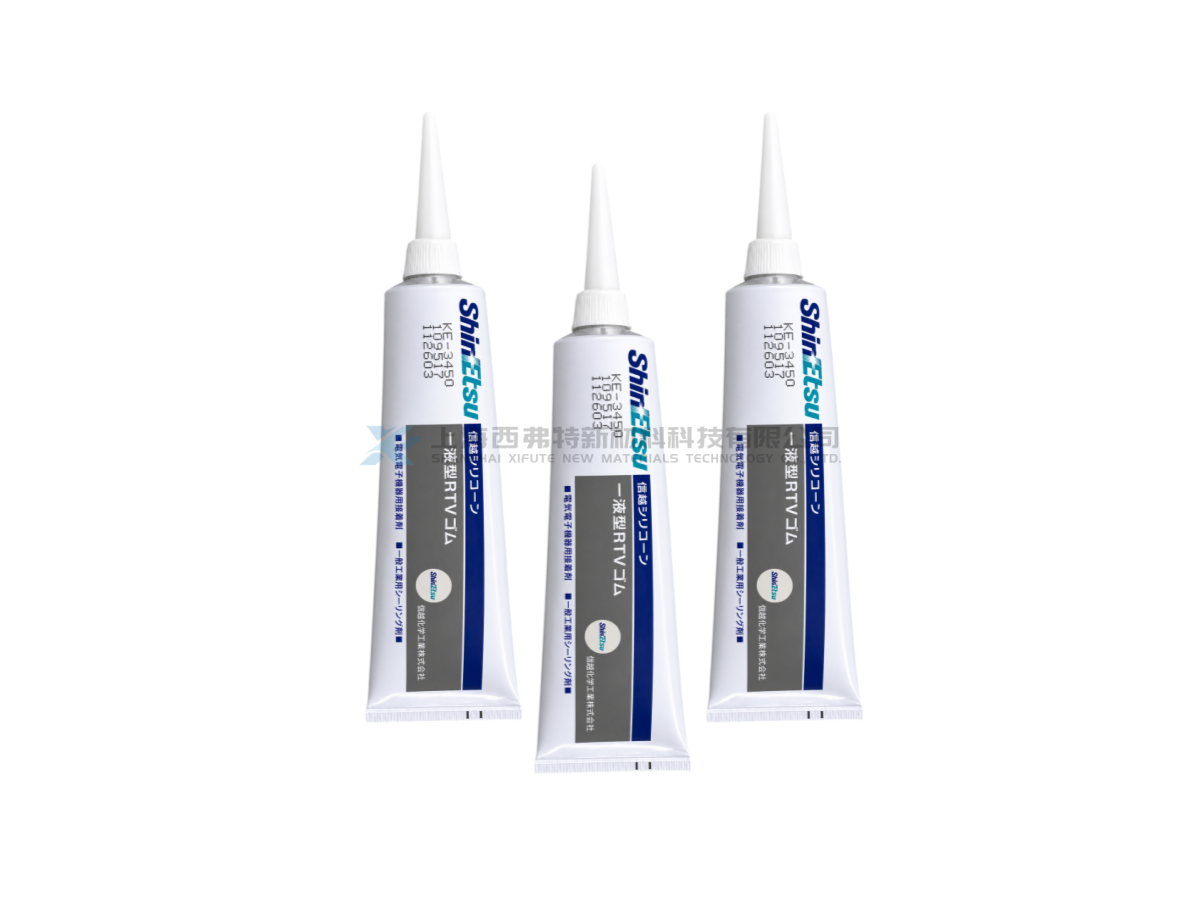

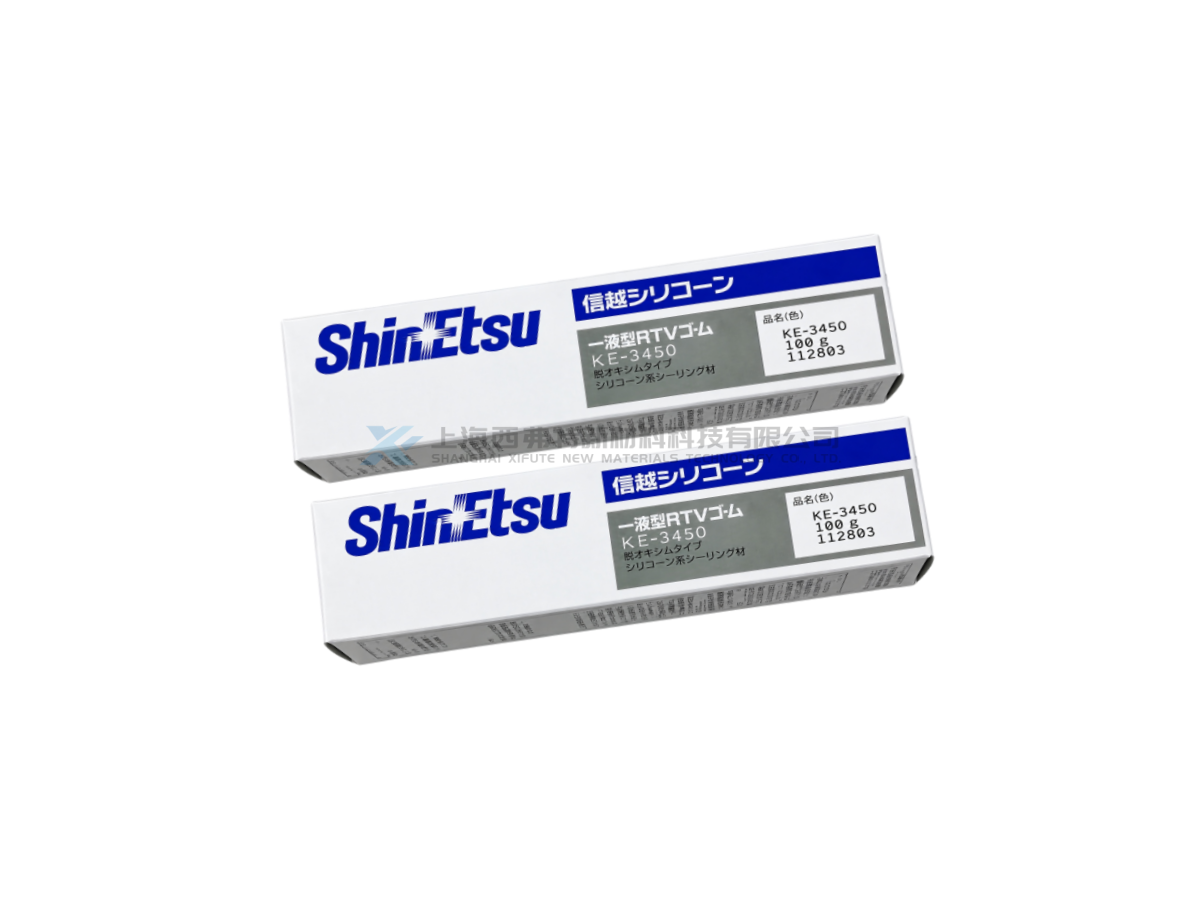

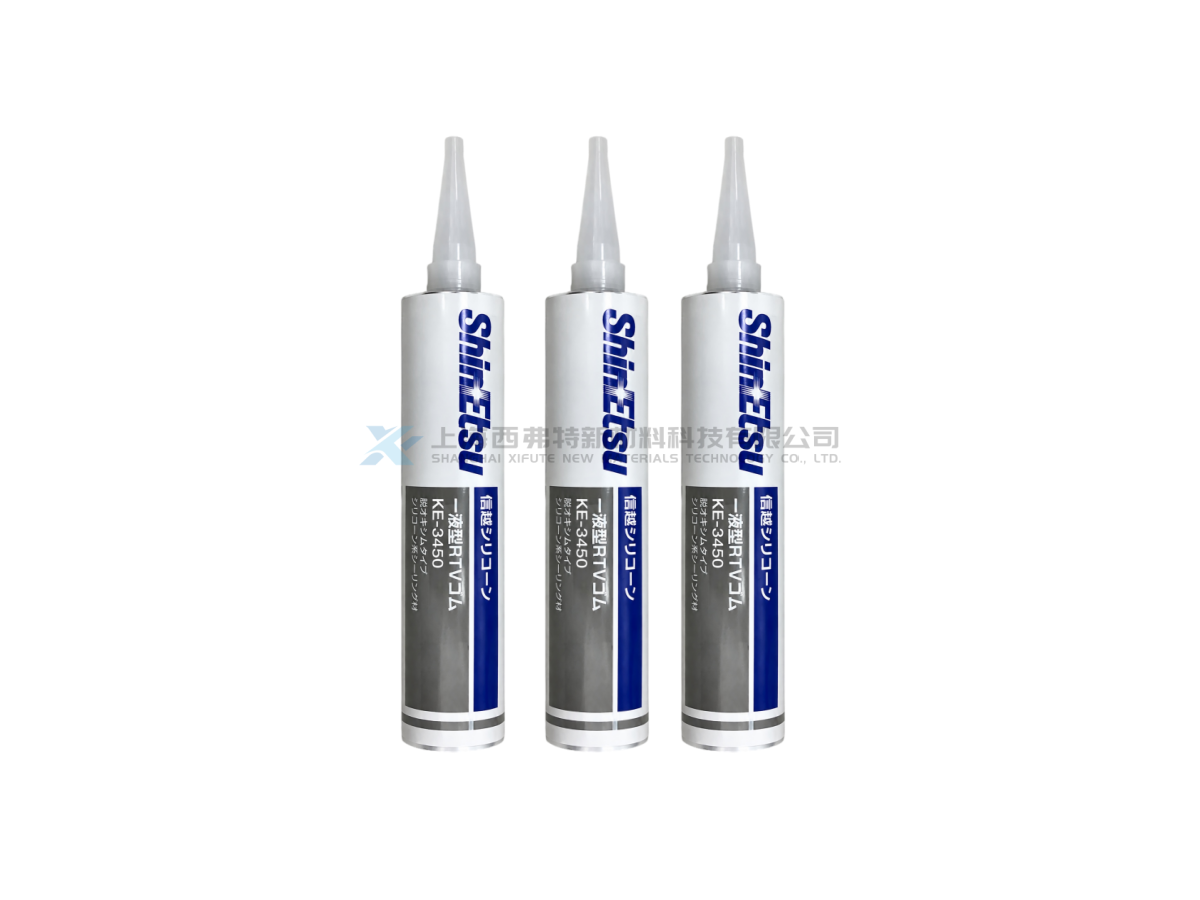

Shin-Etsu KE-3450 One-Component Flame Retardant Liquid Silicone Rubber Adhesive Sealant
Shin-Etsu KE-3450 is a one-component room-temperature curing liquid silicone rubber adhesive sealant developed by Shin-Etsu Chemical. It uses a one-component condensation curing system, which reacts with moisture in the air after dispensing and cures at room temperature without heating equipment. KE-3450 provides excellent flame resistance (UL94 V-0), electrical insulation, heat resistance, cold resistance and weather resistance. It is suitable for fixing and sealing electronic components such as circuit boards and power adapters. The product reduces low molecular weight siloxanes that may cause electrical contact problems. It also provides excellent adhesion to various substrates and is non-corrosive to metals, making it suitable for reliable electronic and electrical applications.
Product Details
Product Features
UL94 V-0 Flame Retardant:Meets flame resistance requirements for electrical and electronic applications
One-Component Room Temperature Cure:No mixing or heating equipment required
Excellent Electrical Insulation:Suitable for electronic component protection
Heat and Cold Resistance:Maintains performance under wide temperature conditions
Excellent Weather Resistance:Provides long-term environmental durability
Reduced Low Molecular Siloxane:Minimizes electrical contact contamination risk
Non-Corrosive to Metals:Suitable for long-term metal contact
Wide Material Compatibility:Good adhesion to metals, plastics, glass and ceramics
Product Applications
Electronic Circuit Boards:Fixing and protecting electronic components
Power Adapters:Bonding and sealing internal components
Electronic Equipment Sealing:Protection against moisture and dust
Industrial Equipment:Component fixing and sealing
Electrical Components:Insulation, vibration damping and protection
Automotive Electronics:Electronic components requiring heat and weather resistance
| Item | KE-3450 |
|---|---|
| Product Type | One-Component Liquid Silicone Rubber Adhesive Sealant |
| Brand | Shin-Etsu Chemical |
| Model | KE-3450 |
| Cure Type | One-Component Condensation Cure (Acetone Type) |
| Curing Method | Moisture Room Temperature Cure |
| Appearance | Gray |
| Consistency | Paste |
| Density (23℃) | 1.17 g/cm³ |
| Tack-Free Time | Approx. 4 min |
| Hardness | Shore A 42 |
| Tensile Strength | 2.5 MPa |
| Elongation at Break | 390% |
| Lap Shear Strength (Al/Al) | 1.6 MPa |
| Flame Rating | UL94 V-0 |
| Low Molecular Siloxane Content | ΣD3–D10 ＜300 ppm |
| Volume Resistivity | 1 TΩ·m |
| Dielectric Strength | 30 kV/mm |
| Dielectric Constant (50Hz) | 3.2 |
| Thermal Conductivity | 0.28 W/m·K |
| Operating Temperature Range | -40℃～180℃ |
