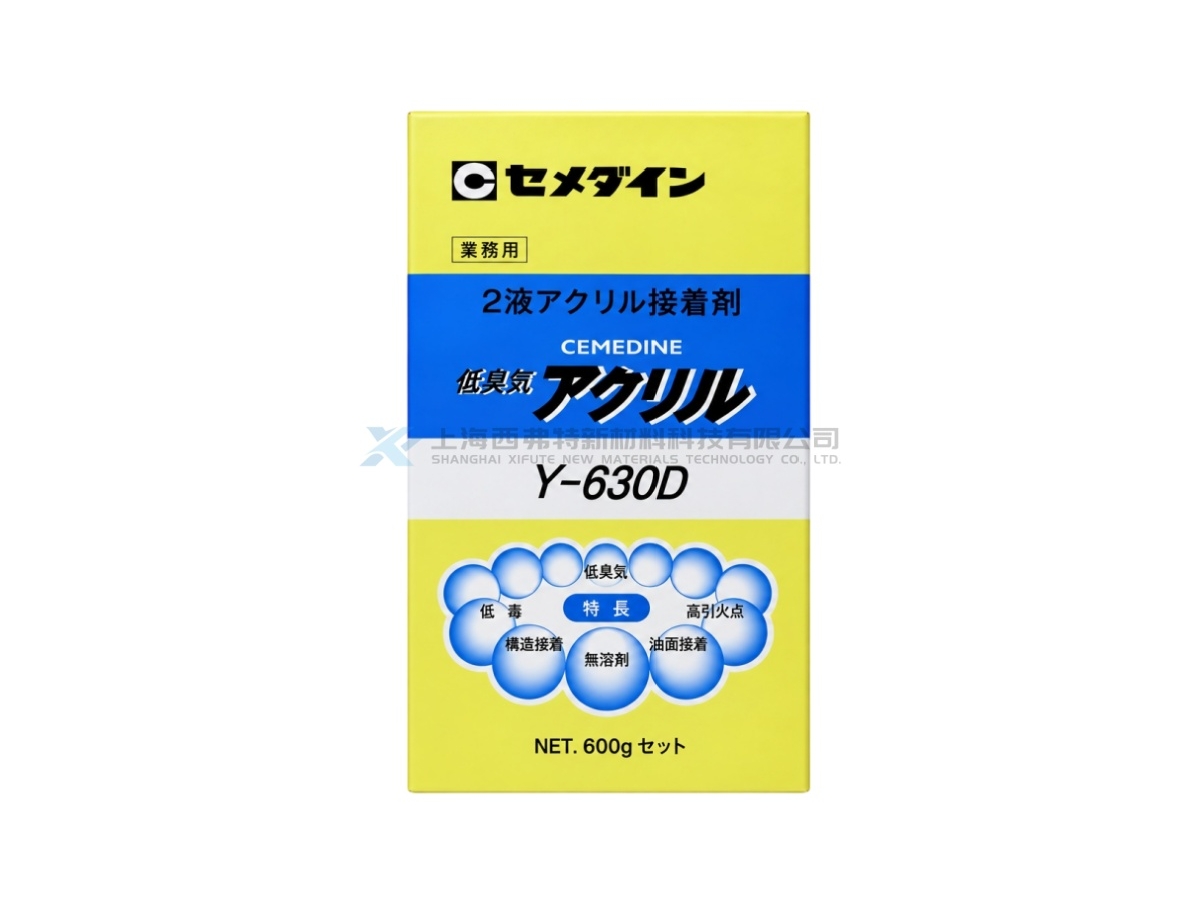

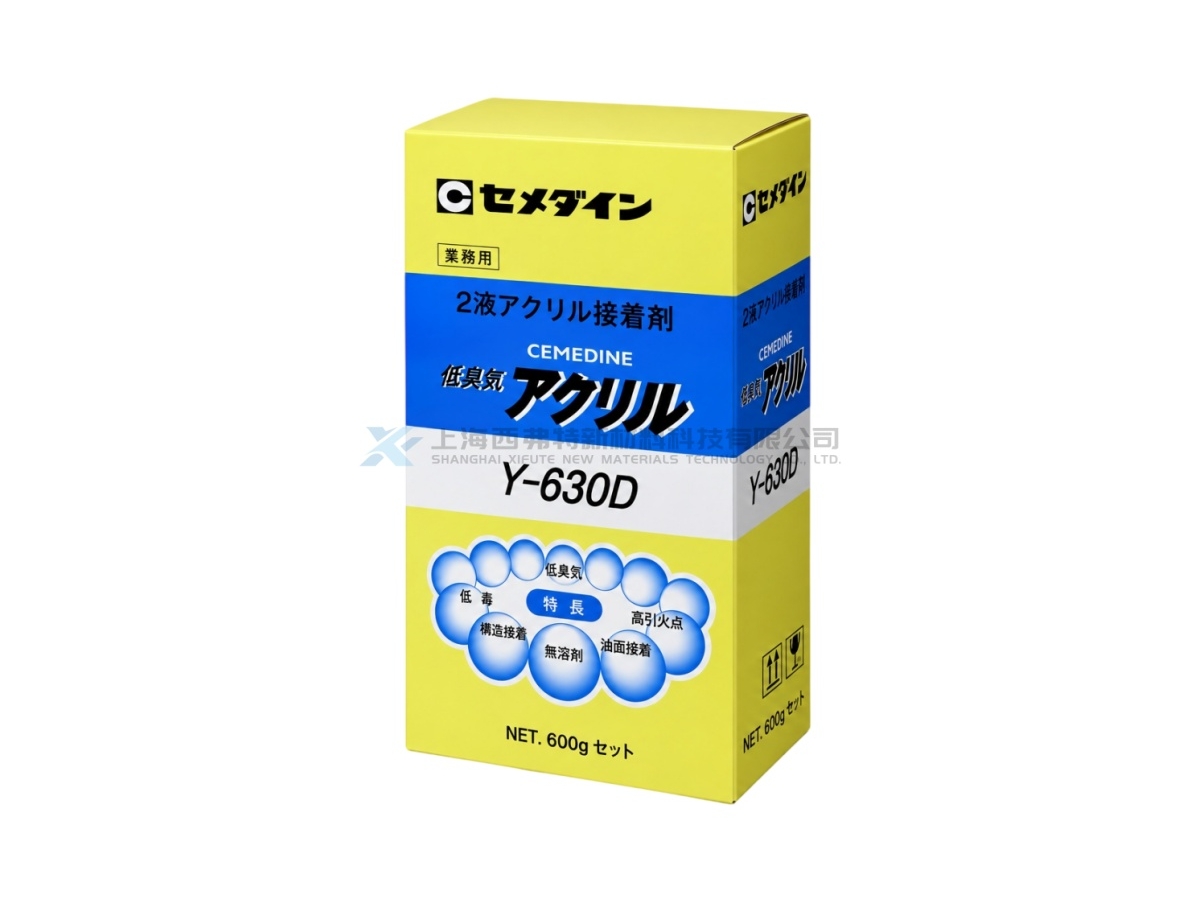

CEMEDINE Y630D Metal Lock High-Strength High-Heat-Resistance Second-Generation Acrylic Structural Adhesive
CEMEDINE Y630D is a second-generation acrylic structural adhesive (SGA) in the Metal Lock flexible-type series. Although it is grouped with Y618LD and Y618H as a flexible-series product, CEMEDINE specifically identifies Y630D as a high-strength / high-heat-resistance grade. Y630D uses a two-component acrylic resin system mixed at a 1:1 ratio. Both Part A and Part B have a viscosity of approximately 4,000 mPa·s at 23°C. At 23°C, the pot life is approximately 1 min 30 sec, and the set time is approximately 4 min 30 sec, making it suitable for fast industrial assembly. The adhesive provides a tensile shear strength of approximately 25.3 MPa, a T-peel strength of approximately 4.6 N/mm, and a glass transition temperature of approximately 118°C. Its cured hardness is Shore D 83, with an elastic modulus of approximately 2414 MPa and breaking strength of approximately 32.1 MPa.
Product Details
Product Features
High Structural Strength:Tensile shear strength of approximately 25.3 MPa.
High Heat Resistance:Glass transition temperature of approximately 118°C.
Fast Room-Temperature Cure:Approx. 1 min 30 sec pot life and 4 min 30 sec set time at 23°C.
Good Peel Resistance:T-peel strength of approximately 4.6 N/mm.
1:1 Mixing Ratio:Equal-part mixing for convenient industrial application.
Metal Lock Performance:The series offers high toughness, structural strength, low odor and adhesion on slightly oily surfaces.
Product Applications
Thin Steel Reinforcement:Bonding reinforcement steel to thin steel sheets.
Speaker Magnetic Assemblies:Bonding metal parts to magnets in speaker magnetic circuits.
Metal Structural Components:High-strength joining of metal parts.
Magnetic Components:Fast bonding of magnets to metal parts.
Heat-Resistant Industrial Assemblies:Applications requiring both structural strength and elevated-temperature performance.
Fast Production Lines:Suitable for rapid positioning and short production cycles.
| Item | CEMEDINE Y630D |
|---|---|
| Product Type | Second-Generation Acrylic Structural Adhesive (SGA) |
| Brand | CEMEDINE |
| Model | Y630D |
| Series | Metal Lock |
| Product Category | Flexible Type |
| Grade | High Strength / High Heat Resistance |
| Main Component | Acrylic Resin |
| Part A Appearance | Light Yellow |
| Part B Appearance | Light Green |
| Part A Viscosity | 4,000 mPa·s at 23°C |
| Part B Viscosity | 4,000 mPa·s at 23°C |
| Mixing Ratio | A:B = 1:1 |
| Pot Life | Approx. 1 min 30 sec at 23°C |
| Set Time | Approx. 4 min 30 sec at 23°C |
| Tensile Shear Strength | 25.3 MPa |
| T-Peel Strength | 4.6 N/mm |
| Hardness | Shore D 83 |
| Glass Transition Temperature | 118°C |
| Elastic Modulus | 2414 MPa |
| Breaking Strength | 32.1 MPa |
| Elongation at Break | 2% |
