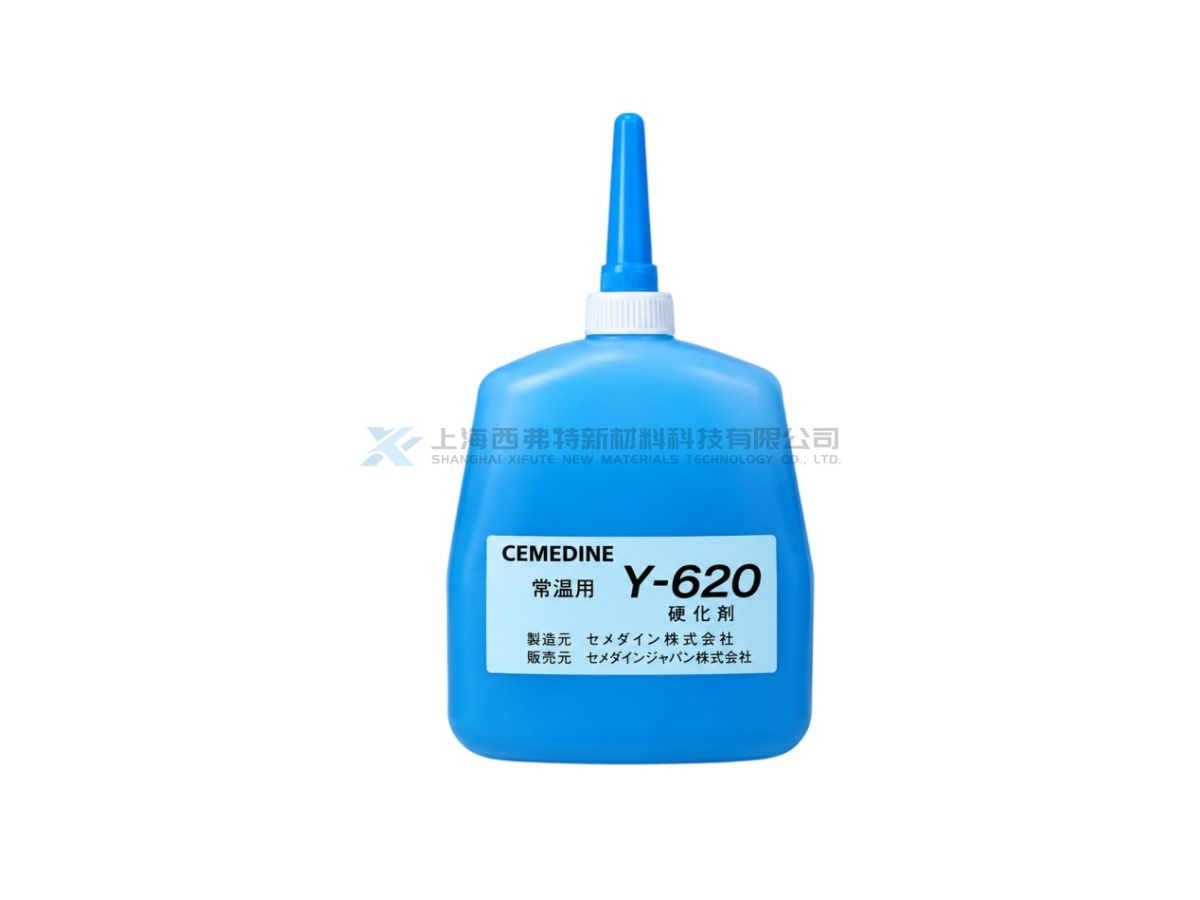

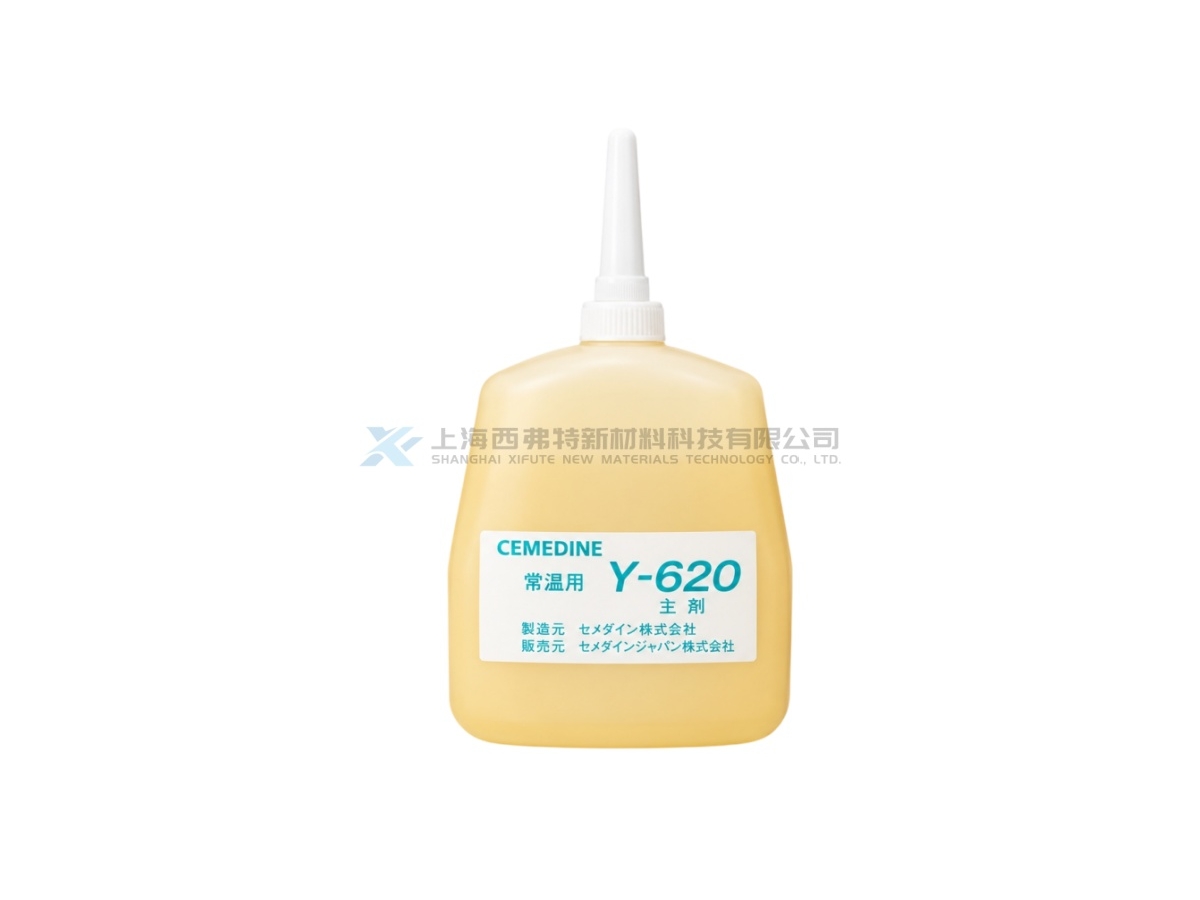

CEMEDINE Y620 Metal Lock Slow-Curing Second-Generation Acrylic Structural Adhesive
CEMEDINE Y620 is a second-generation acrylic structural adhesive (SGA) in the Metal Lock general-purpose series, specifically positioned as the slow-curing grade. The Metal Lock series is characterized by high toughness, structural bonding strength, room-temperature curing, low odor and adhesion on slightly oily surfaces. Both Part A and Part B of Y620 have a viscosity of approximately 8,000 mPa·s at 23°C, with a standard mixing ratio of 1:1. At 23°C, the pot life is approximately 6 minutes and the set time is approximately 20 minutes, giving Y620 more working time than Y600, Y600H and Y610. Y620 provides a tensile shear strength of approximately 21.1 MPa, a T-peel strength of approximately 4.2 N/mm, and an elongation at break of approximately 25%, providing a useful balance between structural strength and flexibility.
Product Details
Product Features
Slow-Curing Grade:Approx. 6 min pot life and 20 min set time at 23°C.
High-Toughness Structural Bonding:Suitable for demanding industrial assemblies.
Good Peel Resistance:T-peel strength of approximately 4.2 N/mm.
1:1 Mixing Ratio:Equal-part mixing for convenient application.
Low Odor:Lower odor than conventional odorous SGA systems.
Oil-Tolerant Bonding:Can develop adhesion on slightly oily surfaces.
Product Applications
Dissimilar Material Bonding:Metal-to-CFRP and other mixed-material assemblies.
Automotive & Vehicle Assembly:Structural bonding of vehicle components.
Steel Furniture:Assembly of steel office furniture.
Sheet Metal Bonding:Bonding of steel and other metal sheets.
Sports Equipment:Assembly of golf clubs and related products.
Large Industrial Assemblies:Suitable where longer positioning and adjustment time is required.
| Item | CEMEDINE Y620 |
|---|---|
| Product Type | Second-Generation Acrylic Structural Adhesive (SGA) |
| Brand | CEMEDINE |
| Model | Y620 |
| Series | Metal Lock |
| Grade | Slow-Curing Type |
| Main Component | Acrylic Resin |
| Part A Appearance | Light Yellow |
| Part B Appearance | Blue |
| Part A Viscosity | 8,000 mPa·s at 23°C |
| Part B Viscosity | 8,000 mPa·s at 23°C |
| Mixing Ratio | A:B = 1:1 |
| Pot Life | Approx. 6 min at 23°C |
| Set Time | Approx. 20 min at 23°C |
| Tensile Shear Strength | 21.1 MPa |
| T-Peel Strength | 4.2 N/mm |
| Hardness | Shore D 66 |
| Glass Transition Temperature | 79°C |
| Elastic Modulus | 778 MPa |
| Breaking Strength | 16.1 MPa |
| Elongation at Break | 25% |

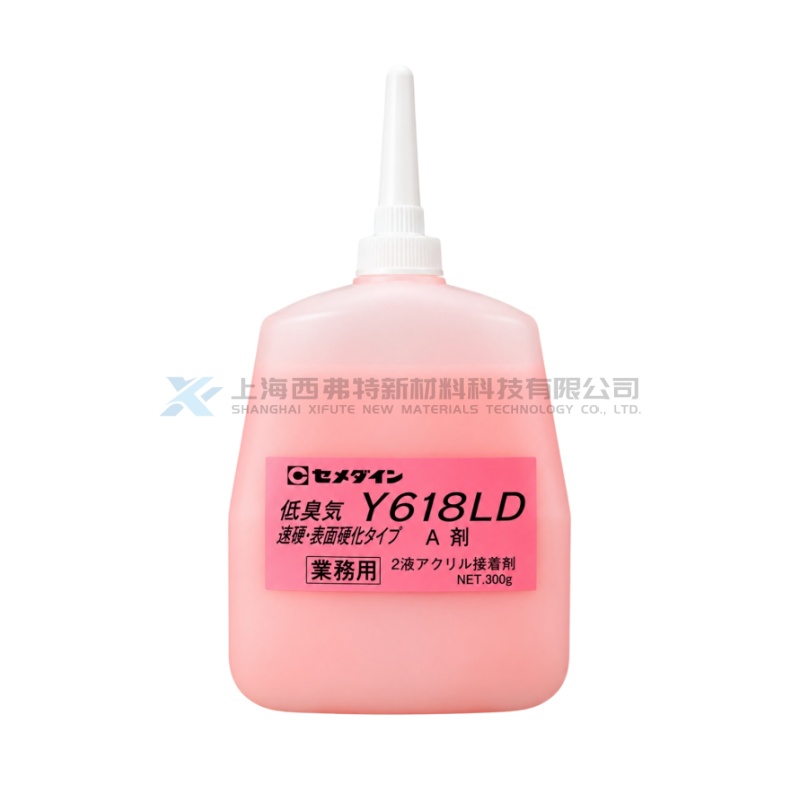

CEMEDINE Y618LD Metal Lock Flexible Low-Distortion Second-Generation Acrylic Structural Adhesive
