CEMEDINE Y618LD Metal Lock Flexible Low-Distortion Second-Generation Acrylic Structural Adhesive
CEMEDINE Y618LD is a second-generation acrylic structural adhesive (SGA) in the Metal Lock series, specifically classified as a flexible / low-distortion grade. CEMEDINE recommends this type for applications such as bonding reinforcement steel to thin steel panels and bonding metal to magnets in speaker magnetic assemblies. Y618LD combines structural bonding strength with flexibility, helping reduce distortion in thin panels and assemblies sensitive to thermal stress or dimensional change. This makes it particularly suitable where appearance quality and reduced warpage are important. Both Part A and Part B have a viscosity of 5,000 mPa·s at 23°C, with a standard mixing ratio of 1:1. At 23°C, the pot life is approximately 2 minutes and the set time is approximately 7 minutes.
Product Details
Product Features
Low-Distortion Design:Suitable for thin panels and assemblies sensitive to warpage and appearance changes.
High Toughness Structural Bonding:Combines structural strength with flexibility.
High Peel Strength:T-peel strength of approximately 5.9 N/mm.
Fast Room-Temperature Cure:Approx. 2 min pot life and 7 min set time at 23°C.
Low Odor:Lower odor than conventional odorous acrylic adhesive systems.
Oil-Tolerant Bonding:Can develop adhesion on slightly oily surfaces.
Product Applications
Thin Steel Panel Reinforcement:Bonding reinforcement steel to thin steel sheets.
Speaker Magnetic Assemblies:Bonding metal components to magnets.
Metal Structural Components:For joints requiring both strength and flexibility.
Thin Panel Assemblies:Suitable where warpage and visual distortion must be minimized.
Thermal Shock Applications:For assemblies exposed to temperature cycling.
Industrial Fast Assembly:Suitable for short positioning times and rapid production processes.
| Item | CEMEDINE Y618LD |
|---|---|
| Product Type | Second-Generation Acrylic Structural Adhesive (SGA) |
| Brand | CEMEDINE |
| Model | Y618LD |
| Series | Metal Lock |
| Grade | Flexible / Low-Distortion Type |
| Main Component | Acrylic Resin |

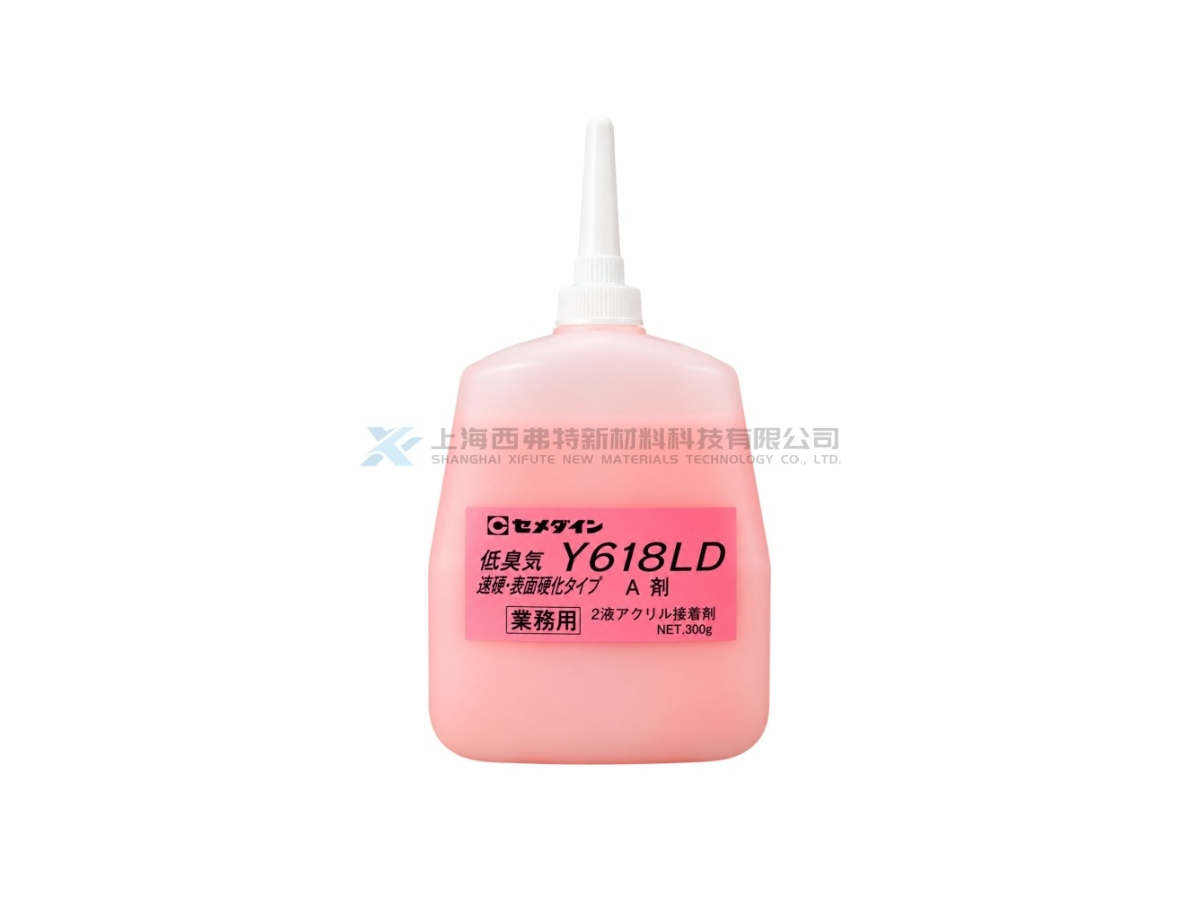

| Part A Appearance | Red |

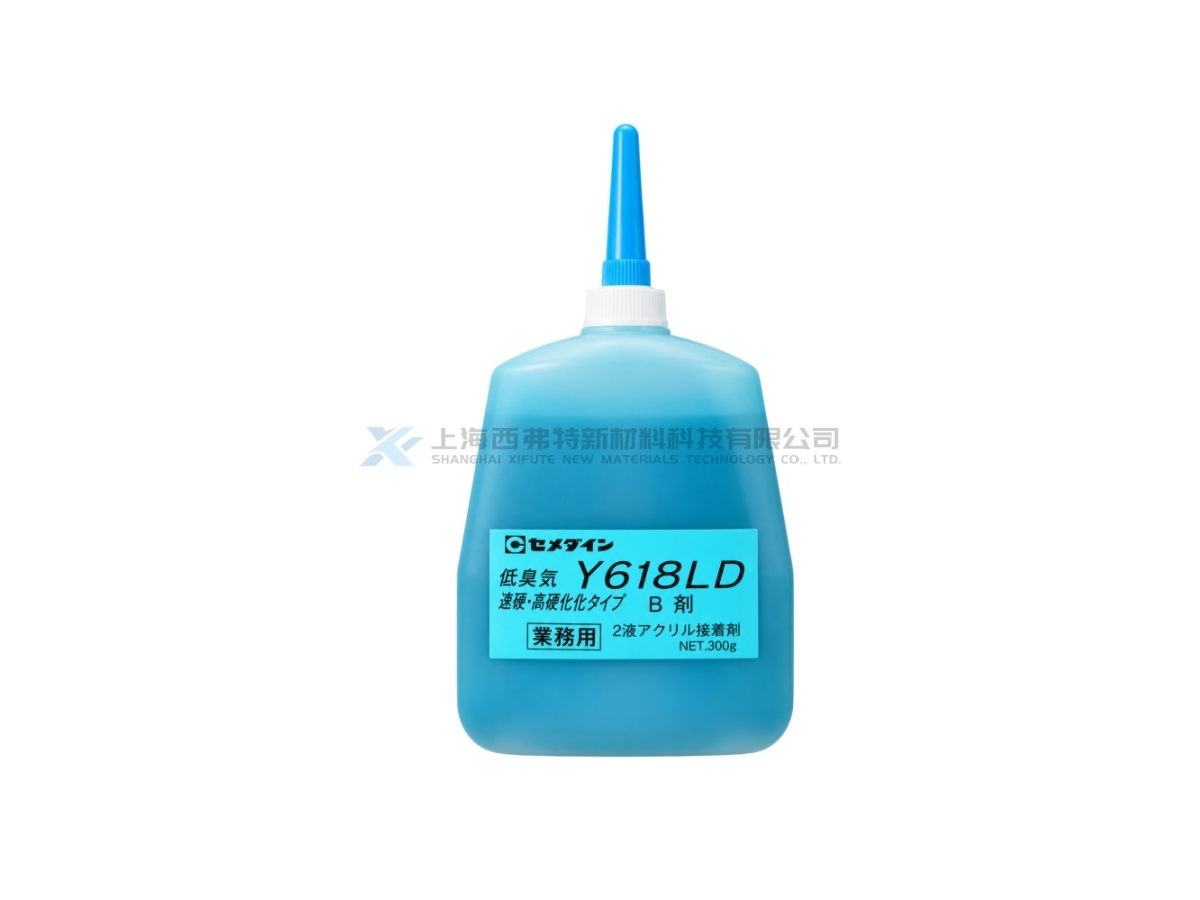

| Part B Appearance | Blue |
| Part A Viscosity | 5,000 mPa·s at 23°C |
| Part B Viscosity | 5,000 mPa·s at 23°C |
| Mixing Ratio | A:B = 1:1 |
| Pot Life | Approx. 2 min at 23°C |
| Set Time | Approx. 7 min at 23°C |
| Tensile Shear Strength | 14.2 MPa |
| T-Peel Strength | 5.9 N/mm |
| Hardness | Shore D 47 |
| Glass Transition Temperature | 61°C |
| Elastic Modulus | 451 MPa |
| Breaking Strength | 10.5 MPa |
| Elongation at Break | 40% |

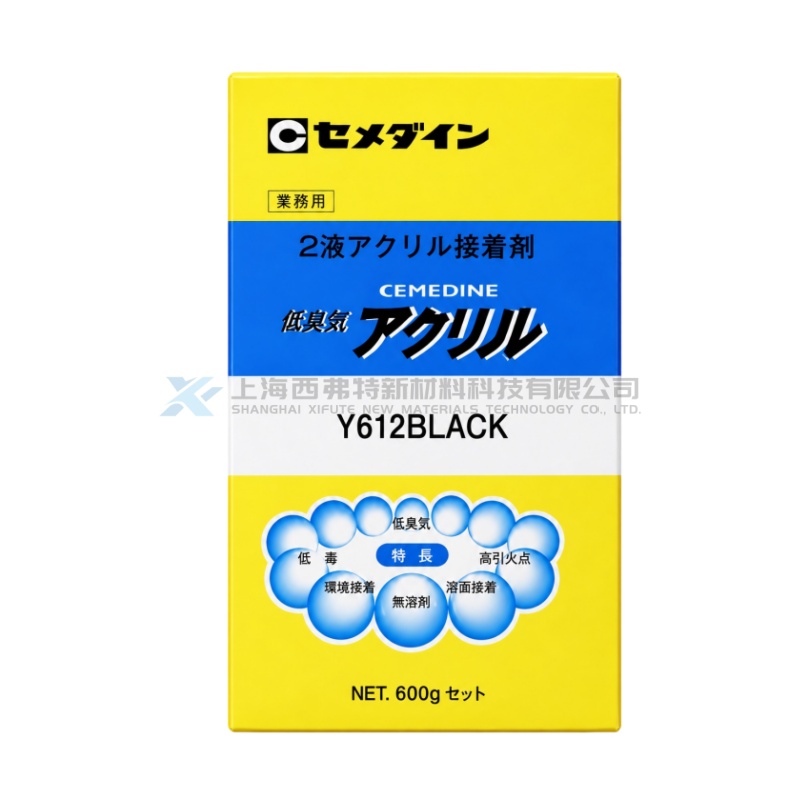

CEMEDINE Y612 BLACK Metal Lock High-Viscosity High-Heat-Resistance Second-Generation Acrylic Structural Adhesive
