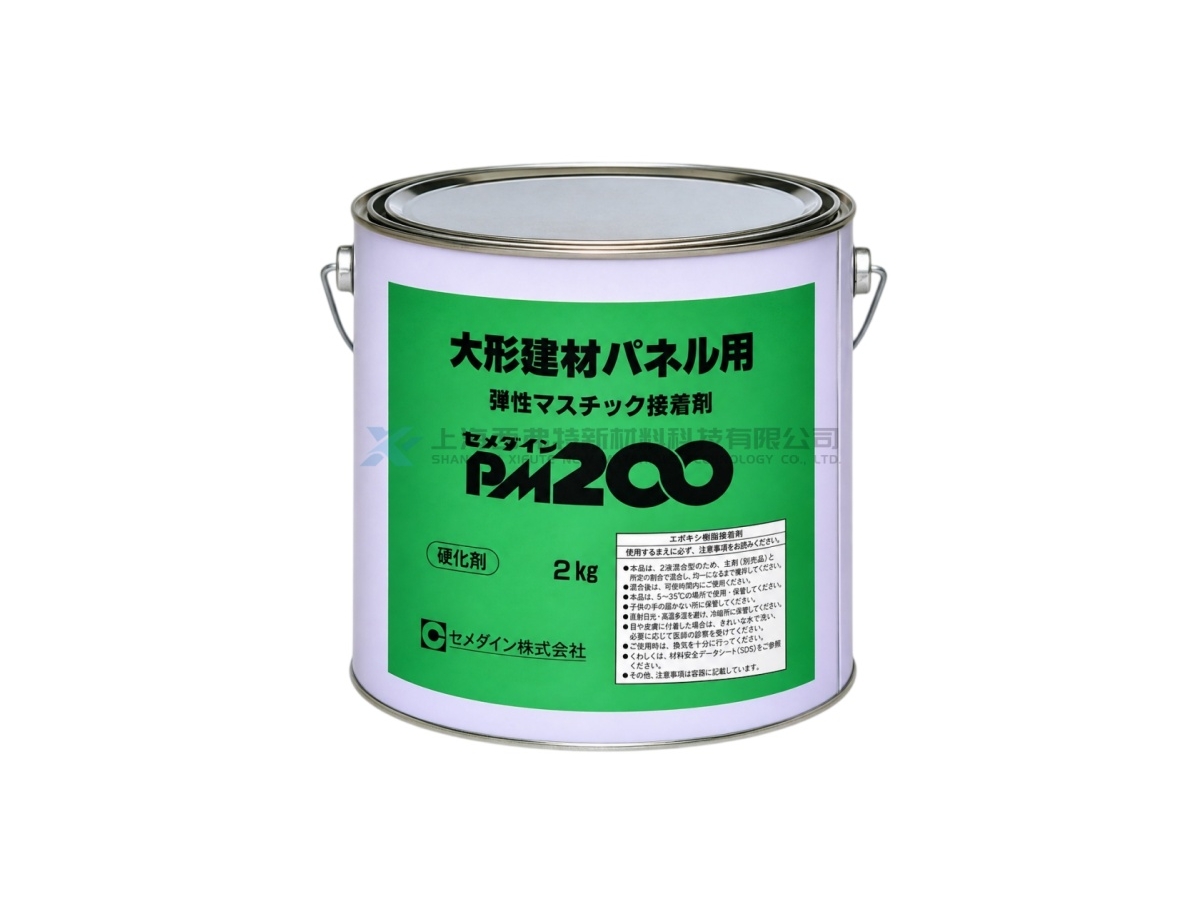

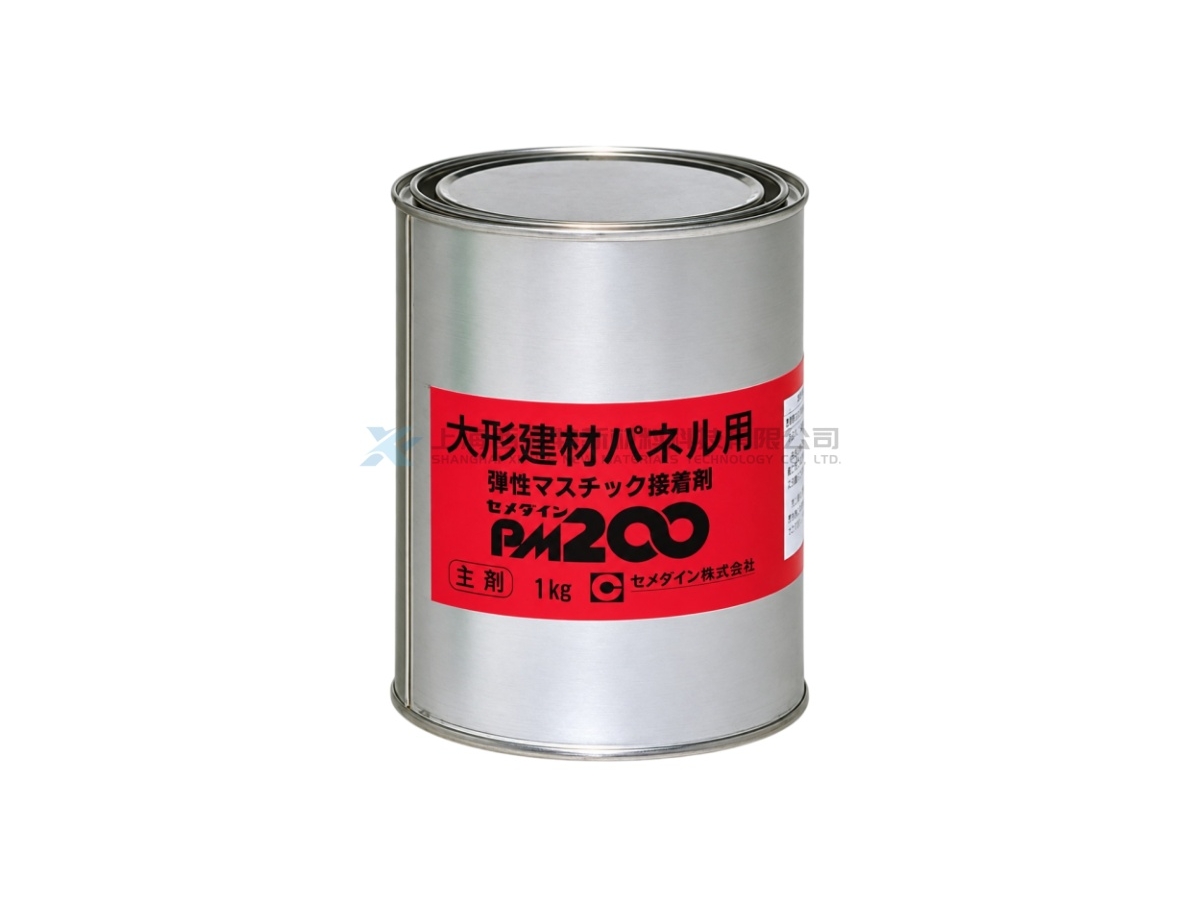

CEMEDINE PM200 Two-Component High-Viscosity Modified Silicone Elastic Adhesive
CEMEDINE PM200 is a two-component modified silicone resin elastic adhesive designed for large architectural panel applications. Unlike the flow-type PM210, PM200 is a high-viscosity, non-sag grade, making it suitable for vertical surfaces and large components. The adhesive provides high durability and elastic bonding performance, helping accommodate stress caused by differences in thermal expansion between bonded materials. CEMEDINE specifically lists bonding of materials with different thermal expansion coefficients as one of PM200's key characteristics. PM200 is used as a two-component system with a standard weight mixing ratio of 1:2. The current CEMEDINE architectural product page lists a mixed viscosity of approximately 170 Pa·s at 23°C and a bonding time of approximately 30 minutes at 23°C.
Product Details
Product Features
High Durability:Suitable for long-term architectural and industrial bonding.
High-Viscosity Non-Sag Grade:Suitable for vertical and large-panel applications.
Elastic Bonding:Forms a flexible adhesive layer that helps accommodate movement.
Suitable for Dissimilar Materials:Designed for bonding substrates with different thermal expansion coefficients.
Sufficient Positioning Time:Approx. 30 minutes bonding time at 23°C.
Two-Component Reactive System:Cures after mixing base and hardener at the specified ratio.
Product Applications
Large Architectural Panels:Bonding exterior panels and large construction boards.
Large Tiles:Bonding large-format tiles and architectural finishing materials.
Wood:Bonding wood components and composite structures.
Rigid Plastics:Suitable for selected rigid plastics; PE and PP are excluded.
Metal Components:Bonding metals to other architectural substrates.
Dissimilar Material Assemblies:Elastic bonding where thermal expansion coefficients differ.
| Item | CEMEDINE PM200 |
|---|---|
| Product Type | Two-Component Modified Silicone Elastic Adhesive |
| Brand | CEMEDINE |
| Model | PM200 |
| Application Type | Large Architectural Panel Adhesive |
| Grade | High-Viscosity / Non-Sag Type |
| Base Appearance | White Paste |
| Hardener Appearance | Dark Gray / Black Paste |
| Mixing Ratio by Weight | Base : Hardener = 1 : 2 |
| Mixed Viscosity | Approx. 170 Pa·s at 23°C |
| Base Density | 1.3 g/cm³ |
| Hardener Density | 1.2 g/cm³ |
| Bonding Time | Approx. 30 min at 23°C |
| Usable Working Time | Approx. 120 min at 23°C, 3kg mixed |
| Standard Coverage | 500–600 g/m² for non-porous substrates |
| Compatible Materials | Wood, Rigid Plastics, Metals, Tiles, etc. |
| Not Recommended For | Polyethylene (PE), Polypropylene (PP) |

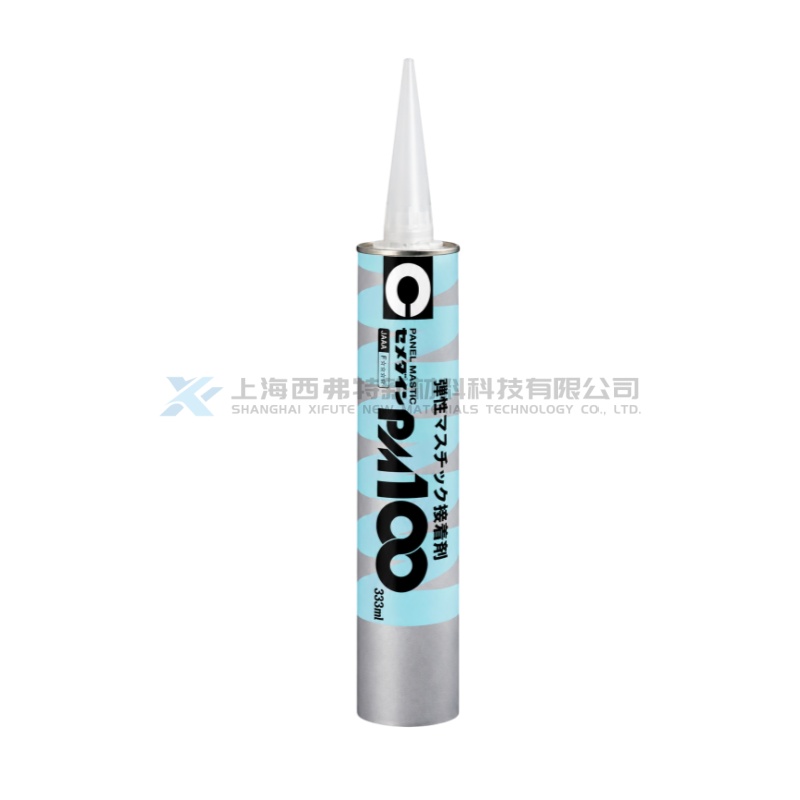

CEMEDINE PM100 One-Component Modified Silicone Elastic Adhesive
