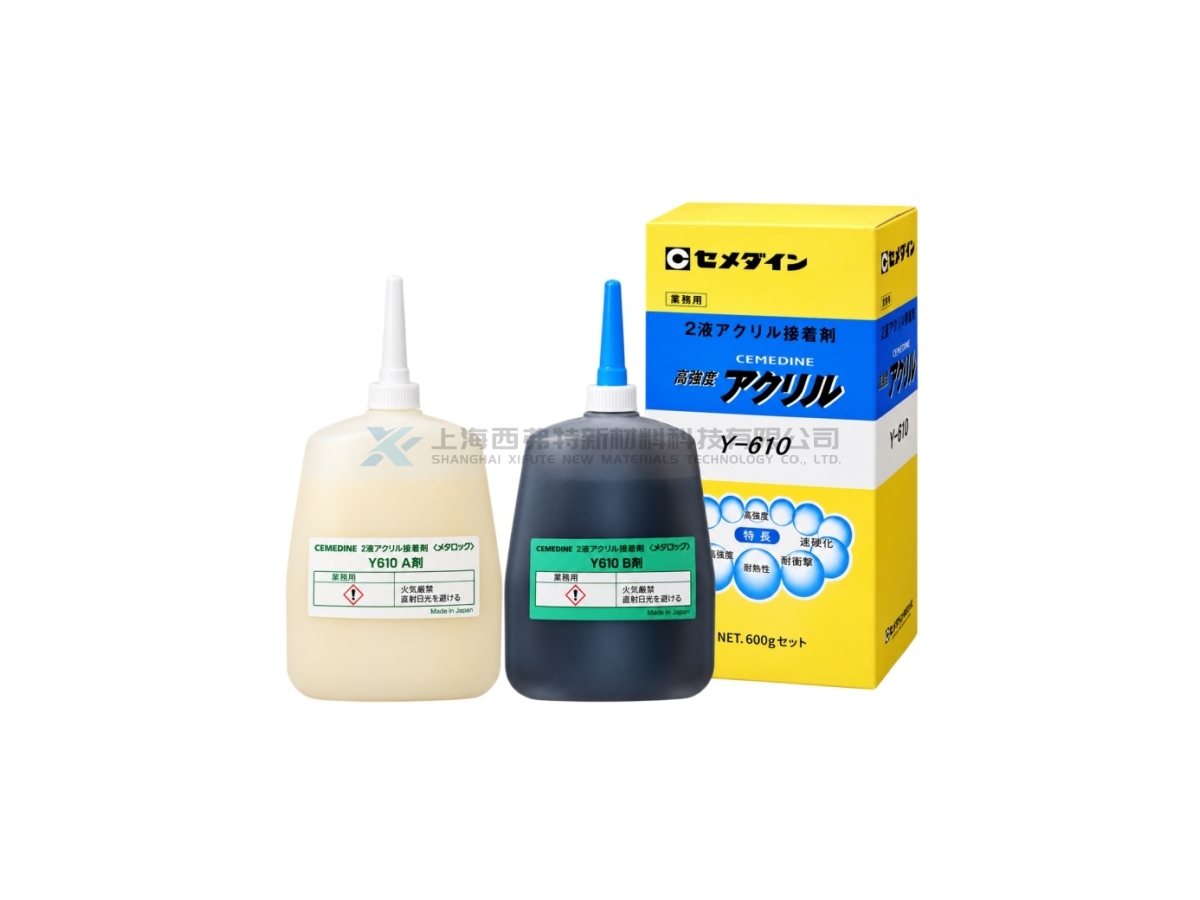

CEMEDINE Y610 Metal Lock High-Strength Second-Generation Acrylic Structural Adhesive
CEMEDINE Y610 is a second-generation acrylic structural adhesive (SGA) in the Metal Lock general-purpose series. Y610 is positioned as the high-strength grade, offering a combination of structural bonding performance, toughness and rapid room-temperature curing. Both Part A and Part B have a viscosity of approximately 5,500 mPa·s at 23°C. The standard mixing ratio is 1:1, with a pot life of approximately 3 minutes at 23°C and a set time of approximately 6 minutes. The Metal Lock series is designed to provide high toughness, structural strength, low odor and fast curing, while maintaining adhesion even on slightly oily surfaces. Typical applications include metal-to-CFRP bonding, steel furniture assembly, vehicle assembly, golf-club assembly and sheet-metal bonding.
Product Details
Product Features
High-Strength Grade:Y610 provides a tensile shear strength of approximately 26.0 MPa.
High Toughness Structural Bonding:Suitable for industrial joints exposed to mechanical loads.
Fast Room-Temperature Cure:Approx. 3 min pot life and 6 min set time at 23°C.
1:1 Mixing Ratio:Equal-part mixing for convenient application.
Low Odor:Lower odor than conventional odorous acrylic adhesive systems.
Oil-Tolerant Bonding:Maintains adhesion on slightly oily surfaces.
Product Applications
Dissimilar Material Bonding:For metal-to-CFRP and other mixed-material assemblies.
Automotive & Vehicle Assembly:Structural bonding of vehicle components.
Sheet Metal Bonding:Bonding steel and other metal sheets.
Steel Furniture:Assembly bonding of metal office furniture.
Sports Equipment:Assembly of golf clubs and other sports products.
Industrial Structural Parts:For applications requiring high strength and fast setting.
| Item | CEMEDINE Y610 |
|---|---|
| Product Type | Second-Generation Acrylic Structural Adhesive (SGA) |
| Brand | CEMEDINE |
| Model | Y610 |
| Series | Metal Lock |
| Grade | High-Strength Type |
| Main Component | Acrylic Resin |

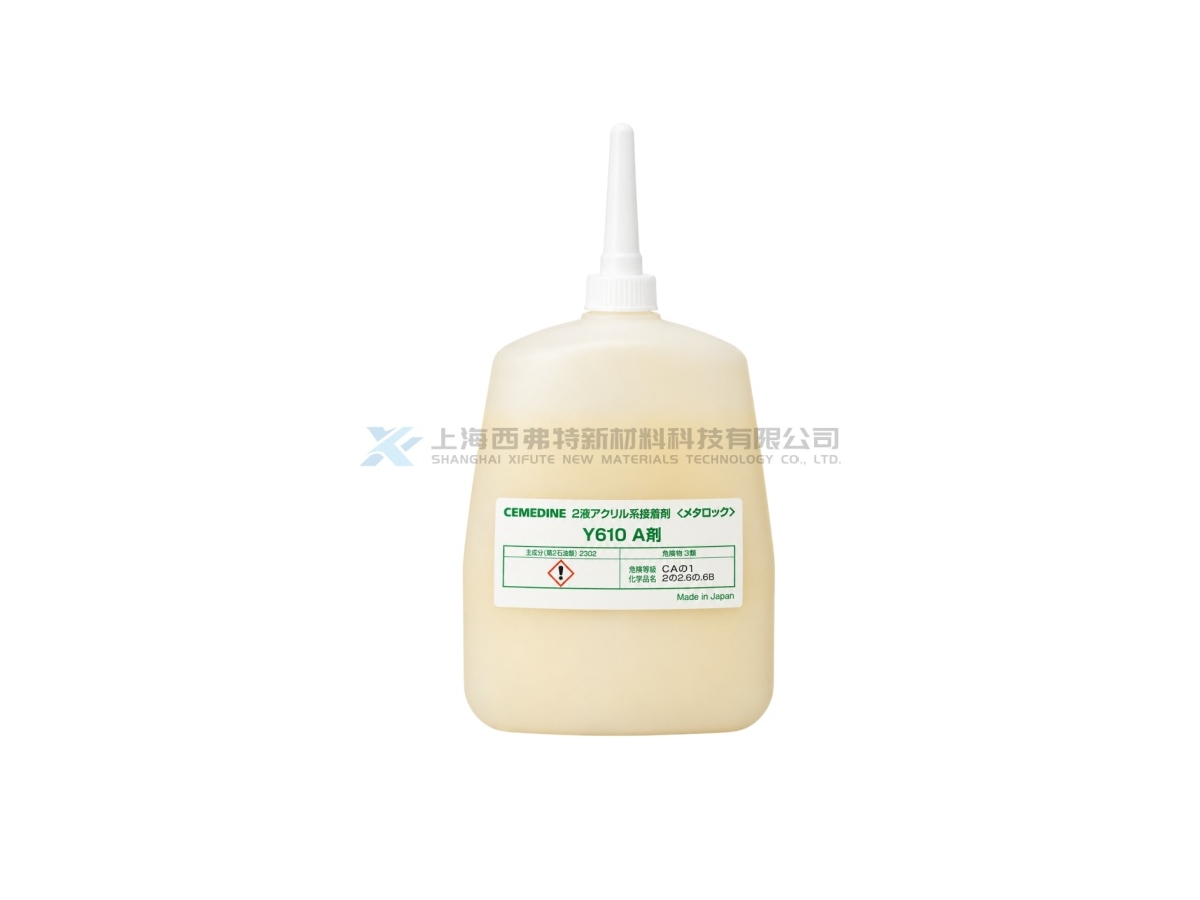

| Part A Appearance | White |

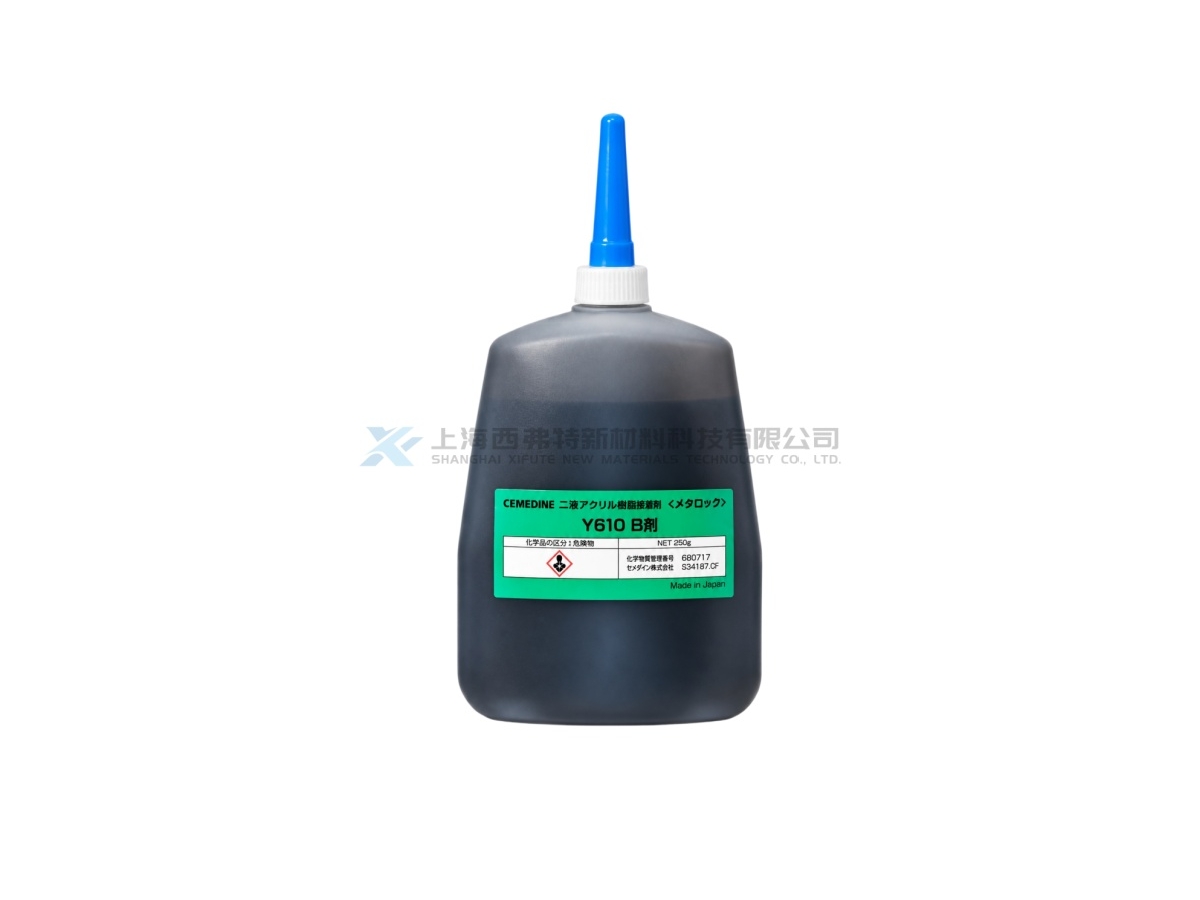

| Part B Appearance | Gray |
| Part A Viscosity | 5,500 mPa·s at 23°C |
| Part B Viscosity | 5,500 mPa·s at 23°C |
| Mixing Ratio | A:B = 1:1 |
| Pot Life | Approx. 3 min at 23°C |
| Set Time | Approx. 6 min at 23°C |
| Tensile Shear Strength | 26.0 MPa |
| T-Peel Strength | 3.7 N/mm |
| Hardness | Shore D 72 |
| Glass Transition Temperature | 90°C |
| Elastic Modulus | 935 MPa |
| Breaking Strength | 19.0 MPa |
| Elongation at Break | 6% |

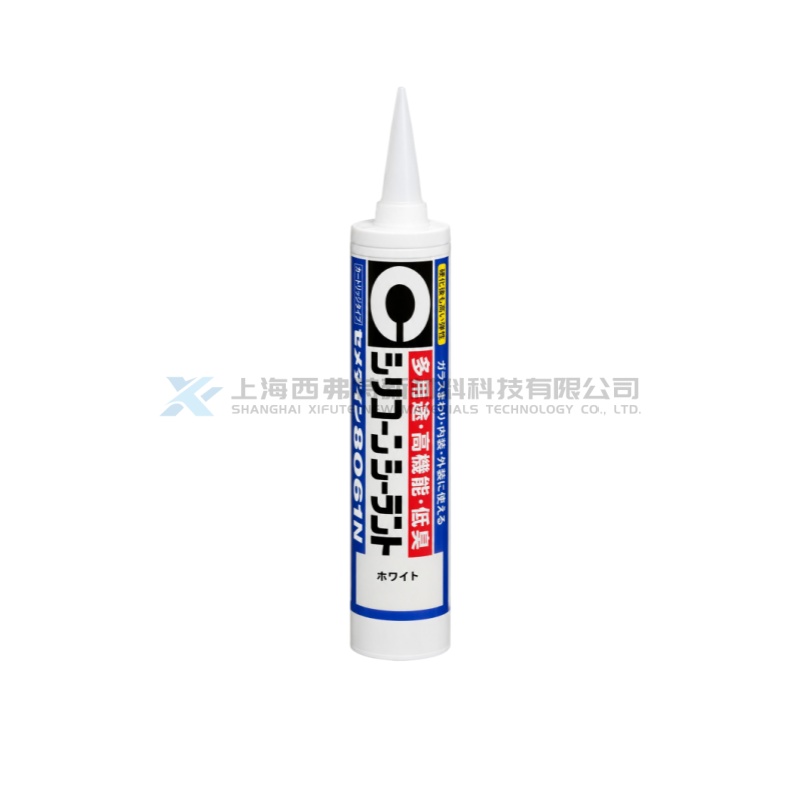

CEMEDINE 8051N Multi-Purpose Low-Odor Silicone Sealant
