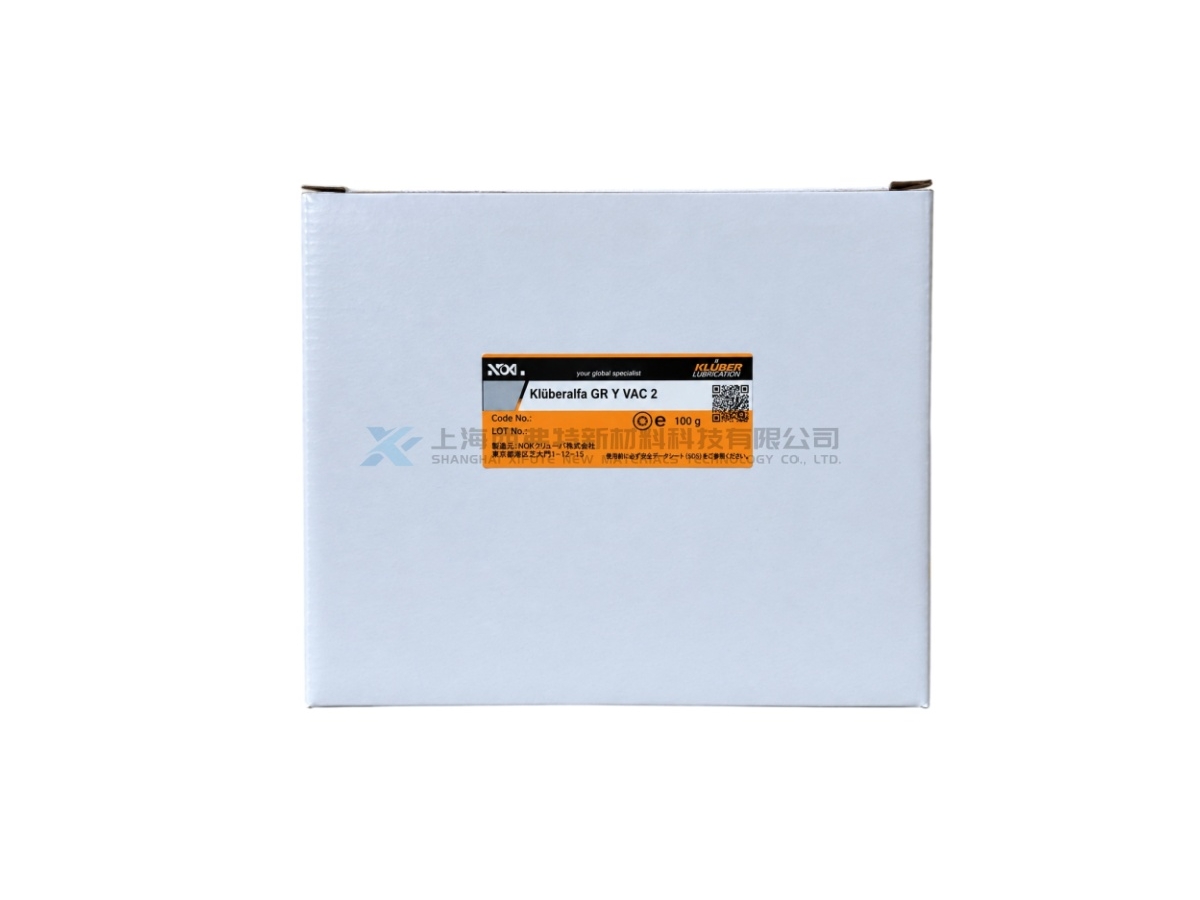

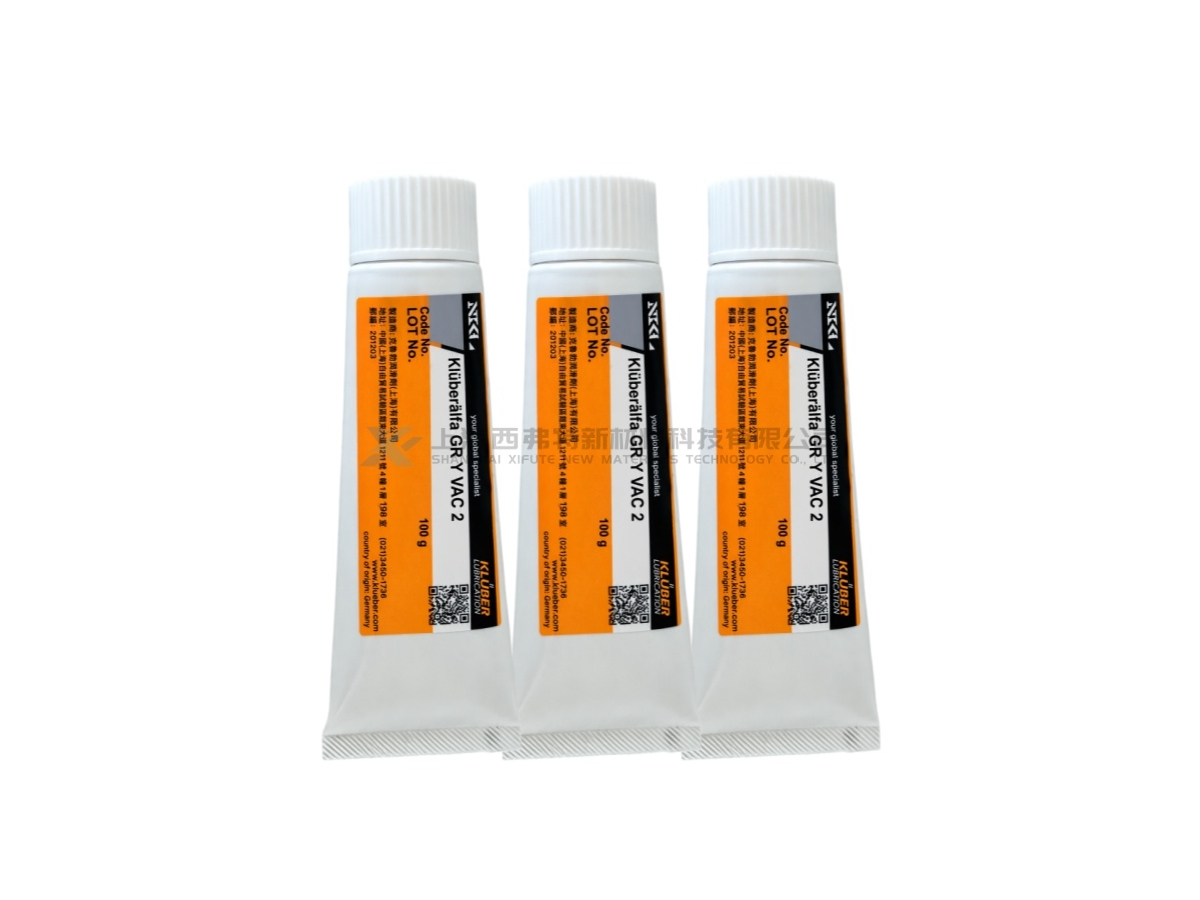

Klüberalfa GR Y VAC 2 High-Vacuum PFPE/PTFE Specialty Grease
Klüberalfa GR Y VAC 2 is a special long-term grease for vacuum applications developed by Klüber Lubrication. It is based on perfluorinated polyether (PFPE) oil with a PTFE thickener, and is a white, homogeneous grease with an NLGI grade of 2. The product is designed to provide very low evaporation under vacuum and ultra-high-vacuum conditions. NOK Klüber Japan specifies a vapor pressure of approximately 7.0×10⁻¹¹ Pa at 20°C, while Klüber’s 2025 global product information lists 6.71×10⁻⁸ hPa at 100°C. Its recommended service temperature range is -20°C to 250°C. The PFPE/PTFE system also offers high thermal stability and good resistance to aggressive media. These lubricants are generally neutral toward most elastomers and plastics, although Klüber specifically notes an exception for perfluorinated rubber and recommends compatibility testing before series use.
Product Details
Product Features
Low Evaporation Under Ultra-High Vacuum:Helps minimize lubricant loss and contamination in high-vacuum systems.
PFPE/PTFE Formulation:Uses PFPE base oil with PTFE thickener for high thermal and chemical stability.
High Thermal Stability:Suitable for service temperatures from approximately -20°C to 250°C.
Resistance to Aggressive Media:Provides good resistance to many chemicals, solvents, fuels and other aggressive media.
Good Material Compatibility:Generally neutral toward most plastics and elastomers; compatibility testing is recommended, especially with perfluorinated rubber.
Long-Term Lubrication:The GR Y VAC series is offered in different NLGI classes for component-specific lifetime lubrication; VAC 2 is NLGI 2.
Product Applications
Semiconductor Manufacturing Equipment:For bearings, sliding mechanisms and sealing components operating under vacuum.
Vacuum Pumps & Vacuum Systems:Suitable for vacuum pumps, vacuum deposition machines and continuous vacuum coating equipment.
Clean Rooms & Sputtering Equipment:For systems requiring low lubricant evaporation and strict contamination control.
Electron Microscopes & Vacuum Metallurgy Equipment:Suitable for precision machinery operating under high-vacuum conditions.
Bearings, Oil Seals & O-Rings:For rolling bearings, sliding components and sealing parts in vacuum machinery.
| Item | Klüberalfa GR Y VAC 2 |
|---|---|
| Product Type | High-Vacuum PFPE/PTFE Specialty Grease |
| Brand | Klüber / NOK Klüber |
| Model | GR Y VAC 2 |
| Article No. | 090189 |
| Base Oil | PFPE |
| Thickener | PTFE |
| Color | White |
| Texture | Homogeneous |
| NLGI Grade | 2 |
| Worked Penetration | 265–295 ×0.1 mm at 25°C |
| Density | Approx. 1.98 g/cm³ at 20°C |
| Vapor Pressure | 7.0×10⁻¹¹ Pa at 20°C, NOK Klüber Japan |
| Vapor Pressure | 6.71×10⁻⁸ hPa at 100°C, Klüber 2025 PI |
| Service Temperature Range | -20°C to 250°C |
| Oil Separation | ≤12 wt% at 200°C × 30 h |
| Evaporation Loss | ≤1 wt% at 204°C × 22 h |
