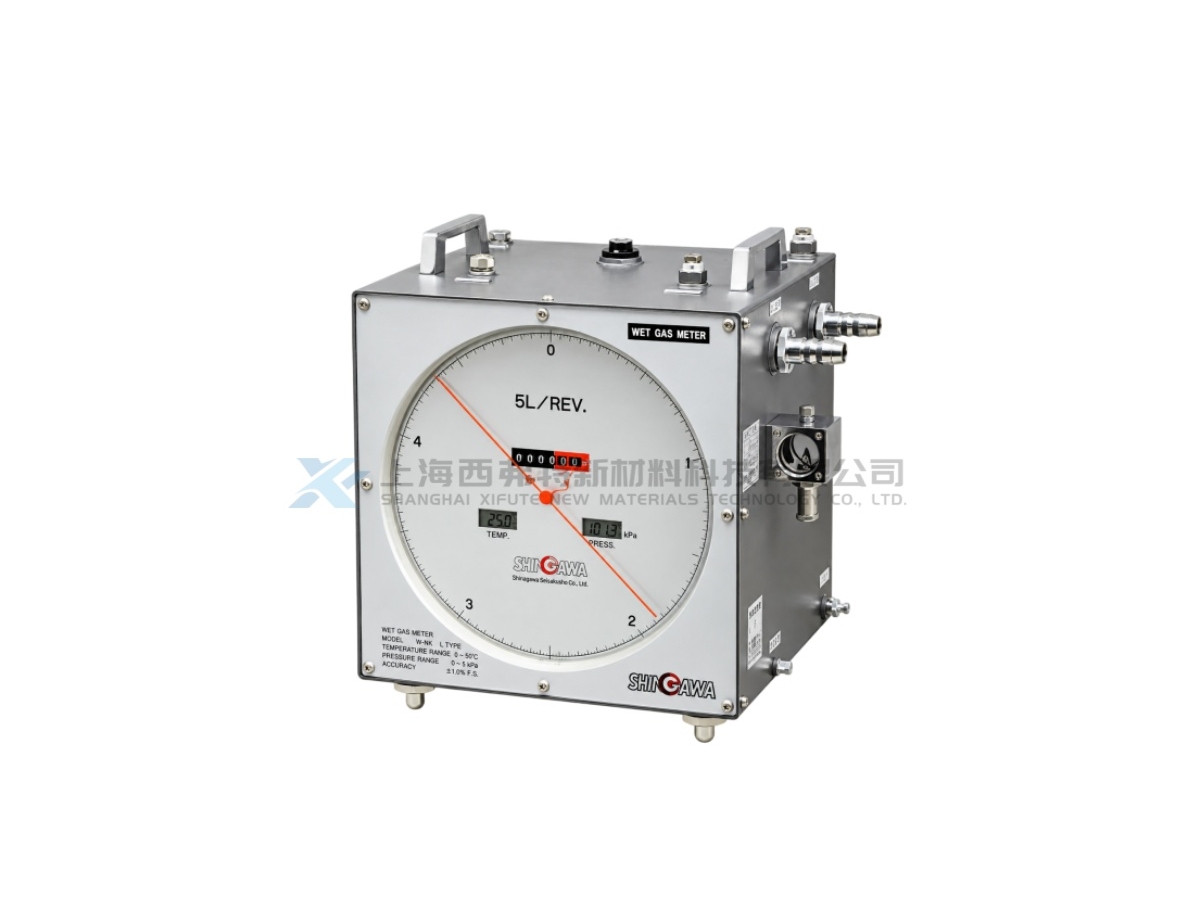

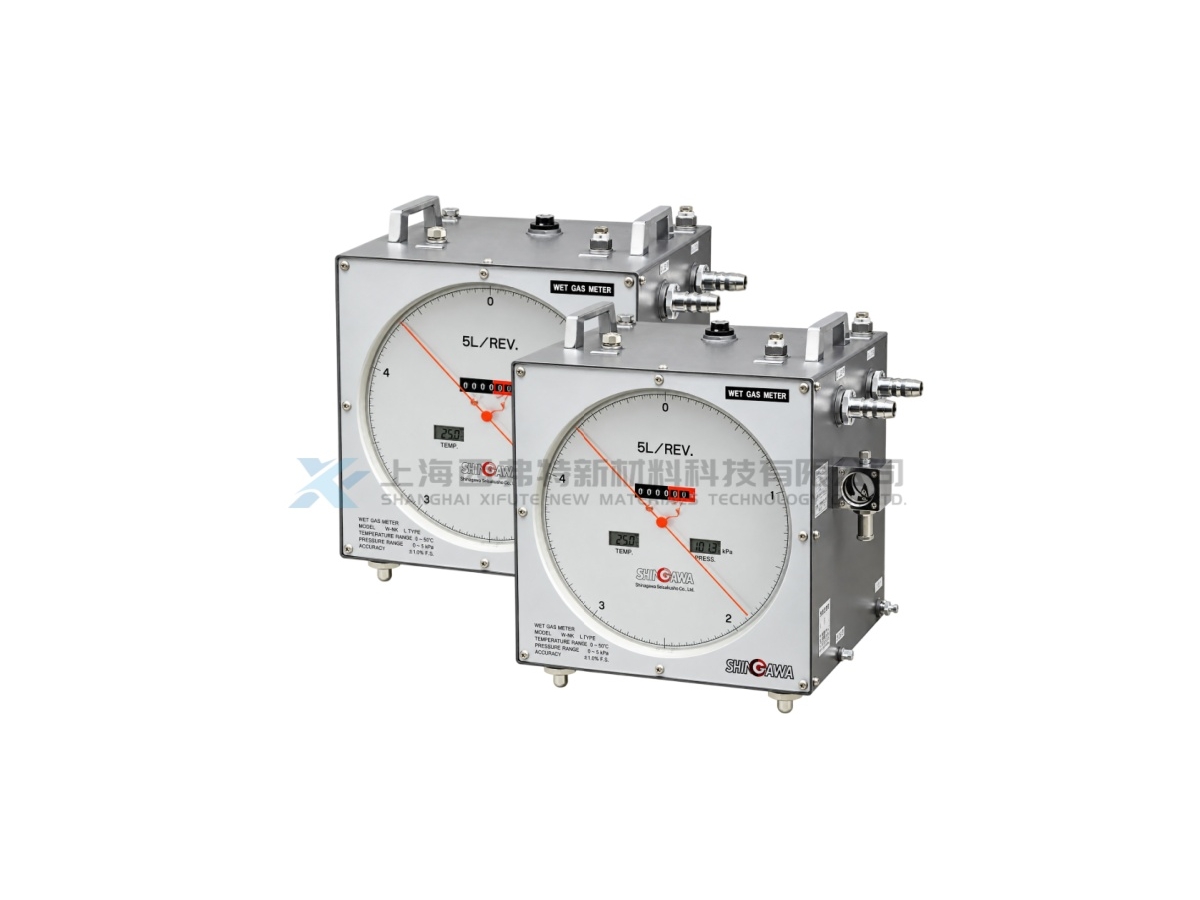

Product Name: SHINAGAWA W-NK-0.5BE Wet Gas Meter
Designed for low-flow gas volume and totalized flow measurement in laboratory experiments and environmental measurement applications. Product Introduction: The W-NK-0.5BE is a wet gas meter in SHINAGAWA's W-NK series, designed mainly for experimentation and environmental measurement. It measures gas volume through the rotation of a liquid-sealed measuring drum, providing a wide low-flow measuring range and stable repeatability. The BE anti-corrosion type uses SUS304 stainless steel for the casing, measuring drum, and machined parts, with argon welding and soldering at the joints.
Product Details
Product Features:
・Low-flow measurement range of 0.016–5 L/min
・Fine minimum scale of 1 mL
・Stable repeatability of ±0.1% to ±0.15%, depending on flow range
・SUS304 stainless-steel anti-corrosion construction
・Low pressure loss of approximately 150 Pa
・Optional pulse output and manometer available
Applications:
・Laboratories: Gas flow and total volume measurement
・Environmental measurement: Sampling gas and environmental monitoring equipment
・Research and development: Gas flow experiments and performance testing
・Measurement systems: Low-flow gas measurement and calibration support
・Analytical equipment: Flow monitoring in gas analysis systems
| Item | W-NK-0.5BE |
|---|---|
| Product Type | Wet Gas Meter |
| Measuring Range | 0.016–5 L/min (1–300 L/h) |
| Drum Capacity | 0.5 L |
| One Revolution | 0.5 L |
| Minimum Scale | 1 mL |
| Connector Outside Diameter | φ11.5 mm |
| Pressure Loss | 150 Pa |
| Operating Pressure Range | 0–10 kPa |
| Operating Temperature Range | 4℃–50℃ |
| Repeatability (≥1/2 Qmax) | ±0.15% (standard deviation) |
| Repeatability (<1/2 Qmax) | ±0.1% (standard deviation) |
| Casing Material | SUS304 Stainless Steel |
| Measuring Drum Material | SUS304 Stainless Steel |
| Machined Parts Material | SUS304 Stainless Steel |
| Jointing | Argon Welding / Soldering |
| Dimensions | W288 × D198 × H235 mm |
| Weight | 4.8 kg |
| Weight with Filled Water | 7.2 kg |
CEMEDINE SUPER X NO.8008
CEMEDINE SUPER X NO.8008L Low-Viscosity Elastic Adhesive
CEMEDINE SUPER X NO.8008L NEO Elastic Adhesive
CEMEDINE SUPER X NO.8008LL
CEMEDINE 3000RS Medium-Viscosity Instant Adhesive
CEMEDINE EP001K Elastic Epoxy Adhesive
CEMEDINE EP330 Two-Part Mixed Type Epoxy Adhesive
CEMEDINE High Super 30 CA-193
CEMEDINE High Super5 CA-186

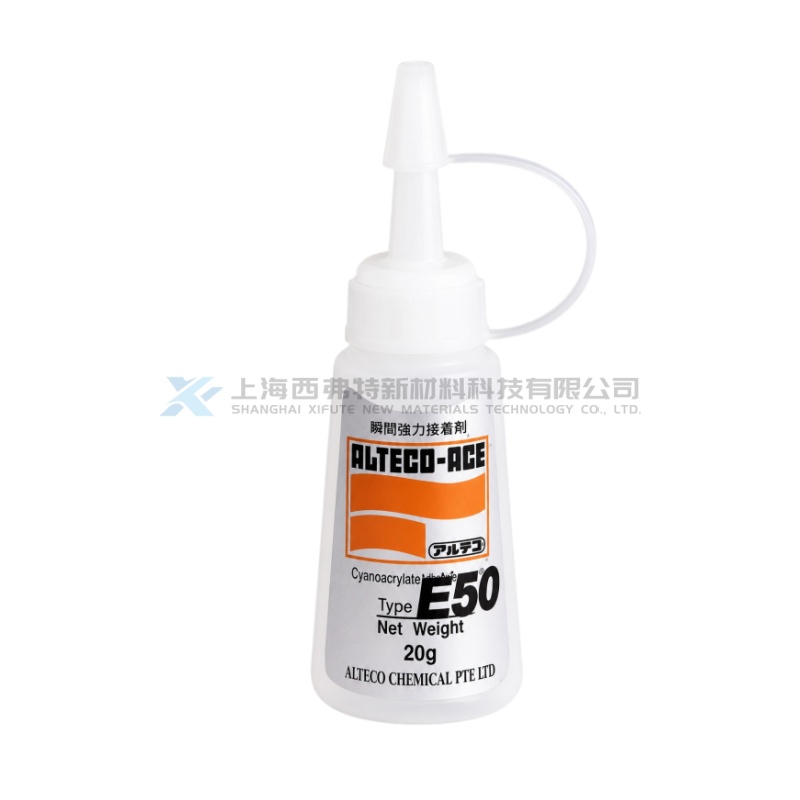

ALTECO E50 General-Purpose Medium-Viscosity Instant Adhesive
