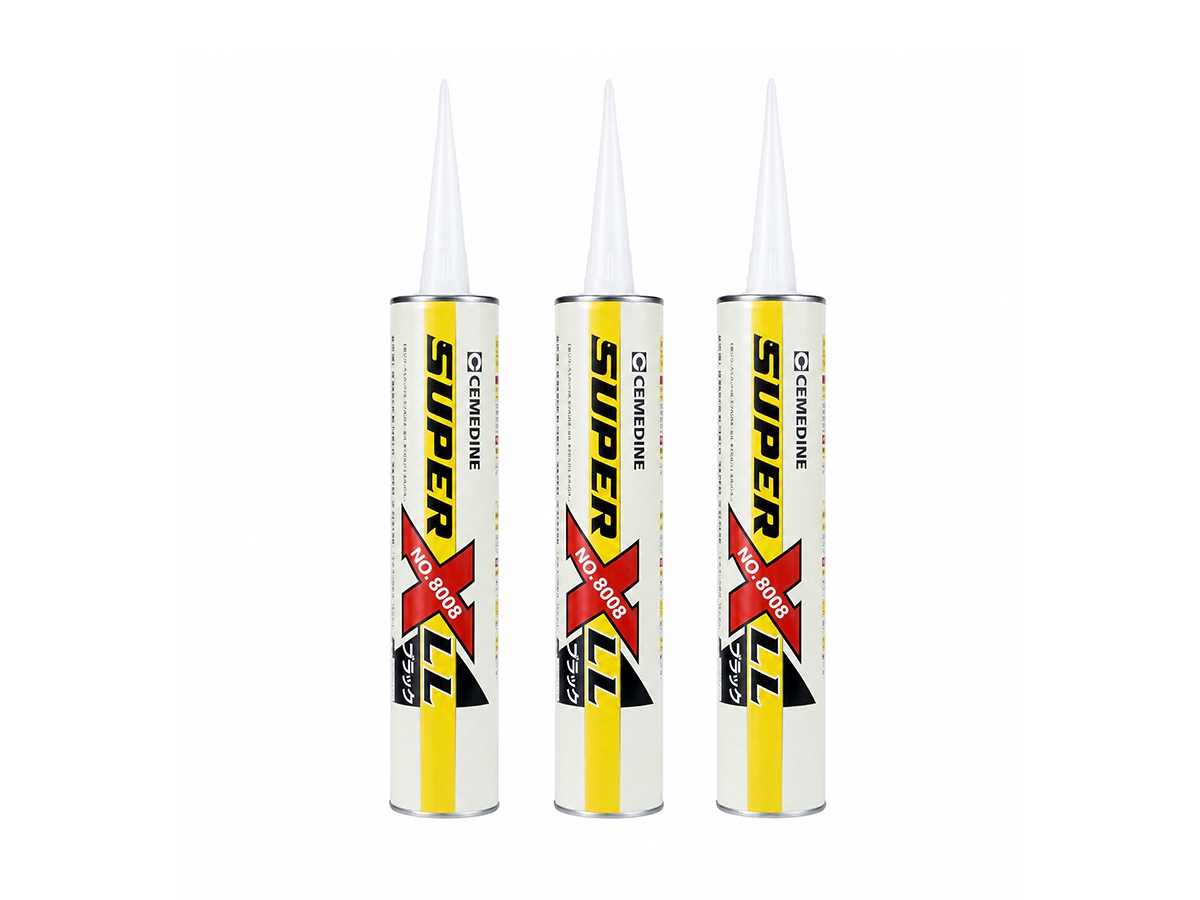

CEMEDINE SUPER X NO.8008LL
Cemedine (Japan) Super X No.8008.It is an epoch-making one-component adhesive that cures quickly at room temperature. Integrating three ideal properties—"adhesive bonding", "elastic bonding" and "solvent-free"—it is praised as the ideal benchmark for adhesives.
Product Details
Adhesive Bonding
It starts curing when in contact with moisture in the air, and enters the adhesive stage about 10 minutes after application. Bonding at this time enables instant fixing, eliminating the need for temporary fixing procedures.
One-component, Solvent-free, Fast-curing at Room Temperature
Being one-component, solvent-free and fast-curing at room temperature, it ensures convenient, safe and clean application.
Wide Bonding Compatibility
It exhibits excellent bonding performance on various materials such as metals, plastics, rubbers and ceramics, without the need to change adhesives for different materials.
Durability
As an elastic adhesive, it has both "high toughness and flexibility", and can follow the deformation of bonded objects caused by expansion and contraction. It maintains excellent durability in the temperature range from low (-60℃) to high (120℃).
Safety and Reliability
Free of low-molecular-weight cyclic siloxane (Siloxane Free).
Bonding scenarios that require initial fast strength
Bonding of dissimilar materials with different thermal expansion coefficients
Bonding that requires durability such as resistance to thermal cycling
| Project | Parameters |
| Product Name | SUPER X NO.8008LL |
| Main Component | Acrylic modified silicone resin |
| Viscosity（Pa･s/23℃） | 19 |
| Density（g/cm3） | 1.22 |
| Touch Drying Time（23℃） | 12分 |
|
Tensile Shear Bond Strength（MPa） |
3.3 |
|
T-peel Bond Strength（N/mm） |
1.0 |
| Hardness (SHORE A) | 34 |
| Glass Transition Temperature（℃） | -59 |
| Break Strength（MPa） | 0.9 |
| Break Elongation（%） | 200 |
| Volume Resistivity（Ω･cm） | 1.0×10¹² |
| Dielectric Constant(100Hz) | 6.56 |
| Dielectric Tangent（100Hz） | 0.25 |
| Packaging & Capacity Specification | 333ml/each |
