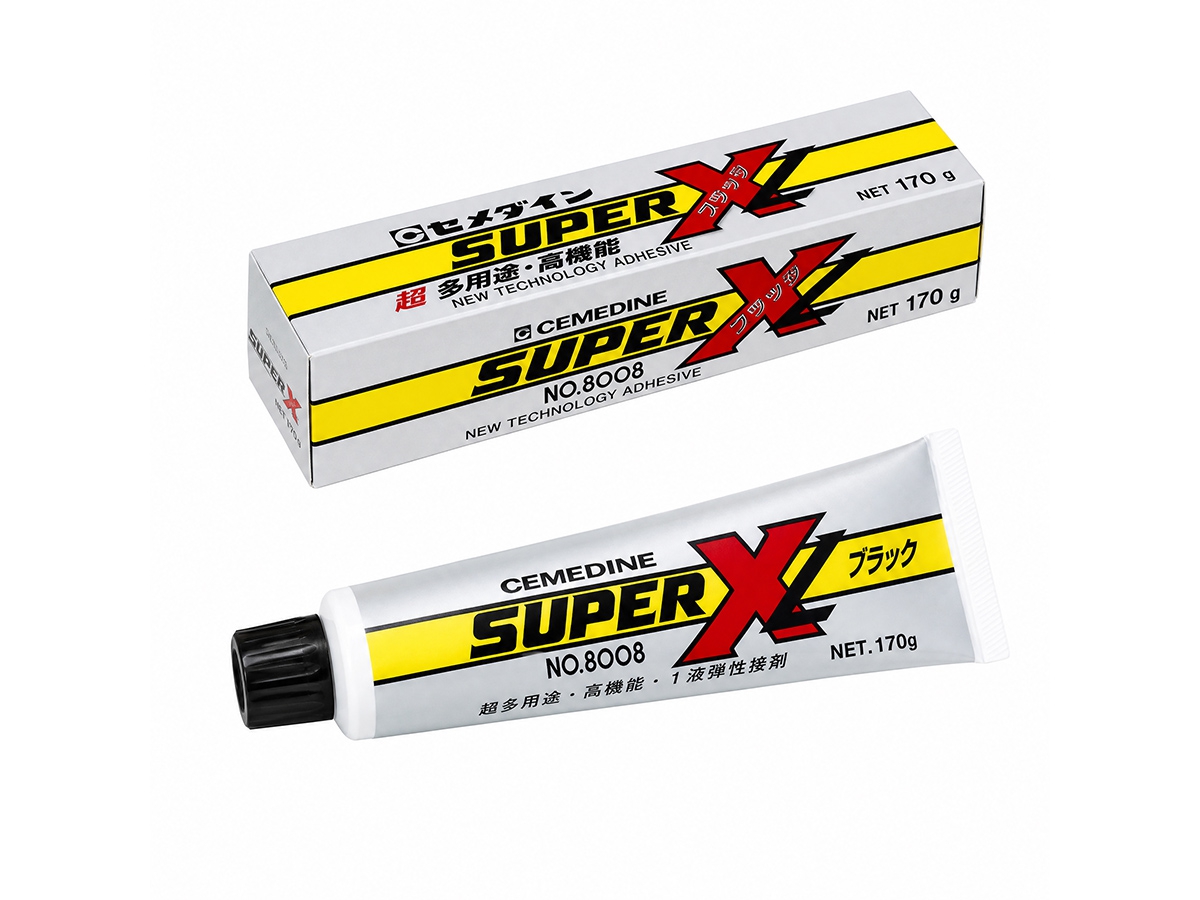

CEMEDINE SUPER X NO.8008L Low-Viscosity Elastic Adhesive
With a viscosity of approximately 22 Pa·s (compared to 85 Pa·s for the standard type), it is much lower than the standard type. It has good application fluidity, can penetrate small gaps or complex structures, and is easy to apply evenly.
Product Details
An epoch-making one-component, room-temperature fast-curing adhesive that integrates three ideal properties: "adhesive bonding", "elastic bonding" and "solvent-free", and is known as the ideal benchmark for adhesives.
Adhesive Bonding
Curing starts upon contact with moisture in the air. It enters the adhesive stage in approximately 10 minutes after application. Bonding at this stage enables instant fixing, eliminating the need for temporary fixing procedures.
One-component, Solvent-free, Room-temperature Fast-curing
Being one-component, solvent-free and fast-curing at room temperature, it ensures convenient, safe and clean application.
Wide Bonding Compatibility
Exhibits excellent bonding performance on various materials such as metals, plastics, rubbers and ceramics, eliminating the need to switch adhesives for different materials.
Durability
As an elastic adhesive, it possesses both "high toughness and flexibility", allowing it to follow the deformation of bonded materials caused by expansion and contraction. It maintains excellent durability in the temperature range from -60℃ to 120℃.
Safety and Reliability
Free of low-molecular-weight cyclic siloxane (Siloxane Free).
Bonding requiring initial fast strength
Bonding of dissimilar materials with different thermal expansion coefficients
Bonding requiring durability such as resistance to thermal cycling (alternating cold and hot conditions)
| Project | Parameters |
| Product Name | SUPER X NO.8008L |
| Main Component | Acrylic modified silicone resin |
| Viscosity（Pa･s/23℃） | 22 |
| Density（g/cm3） | 1.25 |
| Touch Drying Time（23℃） | 11分 |
|
Tensile Shear Bond Strength（MPa） |
3.5 |
|
T-peel Bond Strength（N/mm） |
2.1 |
| Hardness（SHORE A) | 35 |
| Glass Transition Temperature（℃） | -68 |
| Break Strength（MPa） | 1.3 |
| Break Elongation（%） | 320 |
| Volume Resistivity（Ω･cm） | 1.2×10¹² |
| Dielectric Constant(100Hz) | 6.99 |
| Dielectric Tangent（100Hz） | 0.24 |
| Packaging & Capacity Specifications | 170g per pack, 333ml per pack |
