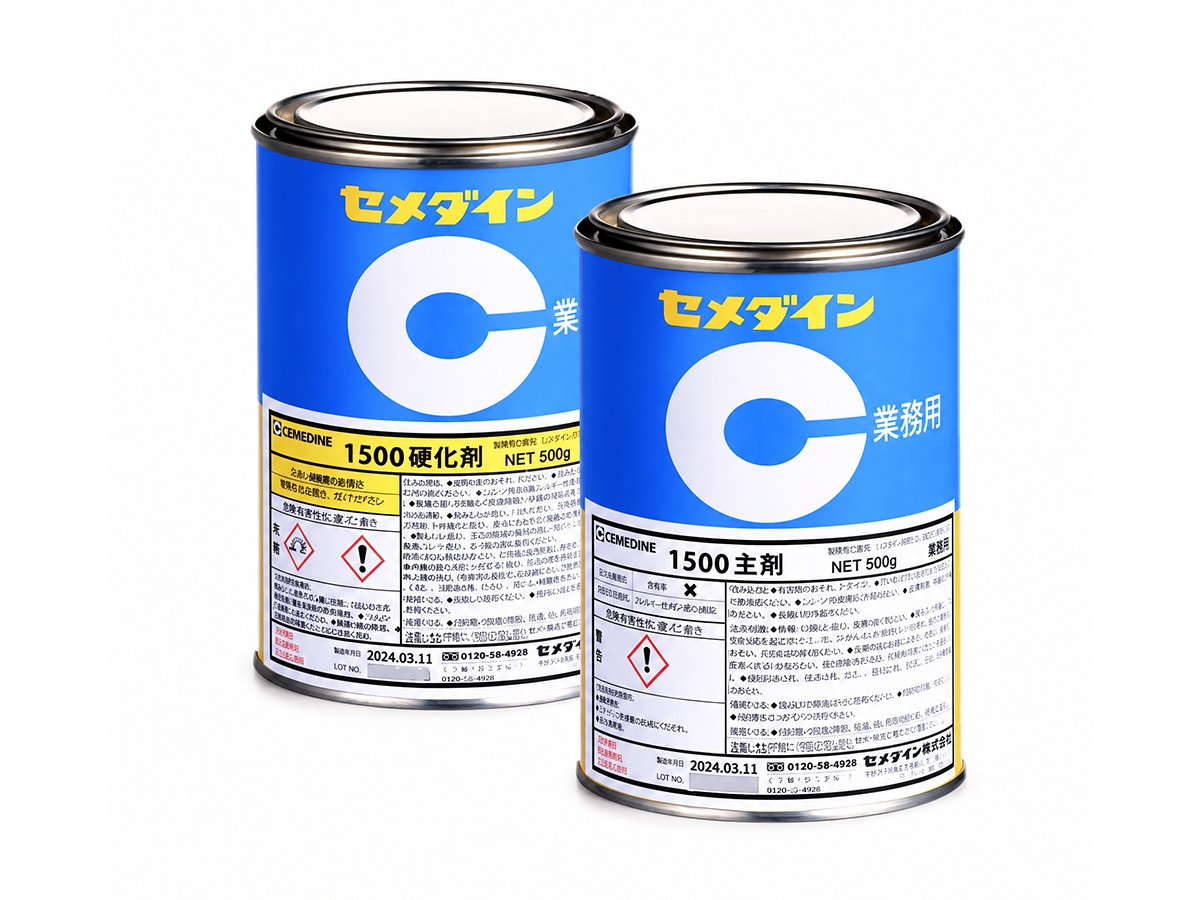

CEMEDINE 1500 Two-Part Mixed Epoxy Adhesive
CEMEDINE 1500 is an industrial standard-type two-component reactive epoxy adhesive consisting of an epoxy resin and a polyamide hardener. The two components are mixed at a 1:1 ratio. It provides a relatively long working time, low curing shrinkage, high bonding strength, good durability and excellent electrical insulation, making it suitable for industrial assembly and large-area bonding.
Product Details
Product Features
Two-component, solvent-free reactive epoxy system
High bonding strength with low curing shrinkage and good durability
Up to approximately 1 hour working time for coating, positioning and assembly
Good heat resistance, chemical resistance and electrical insulation
Applicable Industries / Equipment
Electronics & Electrical: Electronic parts, electrical assemblies, insulating components and sealing areas
Machinery Manufacturing: Metal parts, mechanical assemblies, precision equipment and components
Automotive & Transportation: Automobiles, vehicles, vessels and related structural parts
Construction: Composite building materials, structural assemblies and components
Precision Manufacturing: Precision equipment, industrial assemblies and craft products
| Project | Unit | 1500 Primary Agent | 1500 Hardener | Super Primary Agent | Super Hardener |
|---|---|---|---|---|---|
| Usage/Characteristics/Unique | — | Standard type | Standard type | Standard type ※ Household (DIY) adhesive | Standard type ※ Household (DIY) adhesive |
| type | — | Two-component mixed reactive epoxy adhesives | |||
| principal component | — | Epoxy resin | polyamide | Epoxy resin | polyamide |
| Appearance | — | pale yellow and transparent | light brown and transparent | light brown and transparent | light brown and transparent |
| Viscosity | Pa·s/23℃ | 13 | 42 | 100 | 50 |
| density | g/cm³ | 1.16 | 0.97 | 1.14 | 0.99 |
| Mixing ratio | — | 1 : 1 | 1 : 1 | ||
| Standard curing conditions | — | 23℃×1 | 23℃×1 | ||
| Usable time | — | Within 1 hour | Within 1 hour | ||
| Time to reach practical strength | — | 6 hours | 6 hours | ||
| Tensile shear bond strength | MPa | 15.7 | 15.1 | ||
| T-peel bond strength | N/mm | 0.4 | — | ||
| Hardness (Shore D) | — | 82 | — | ||
| Glass transition temperature | ℃ | 54 | — | ||
| Water absorption rate | % | 0.8 | — | ||
| linear expansion rate | /K | 7.1×10⁻⁵ | — | ||
| Volume resistivity (electrical property) | Ω·cm | 7.1×10¹⁵ | — | ||
| Capacity Specifications | — | 500g/can, 1kg set, 1kg/can, 3kg/can, 15kg/can | 500g/can, 1kg set, 1kg/can, 3kg/can, 15kg/can | 15g kit/tube, 110g kit/tube | — |
