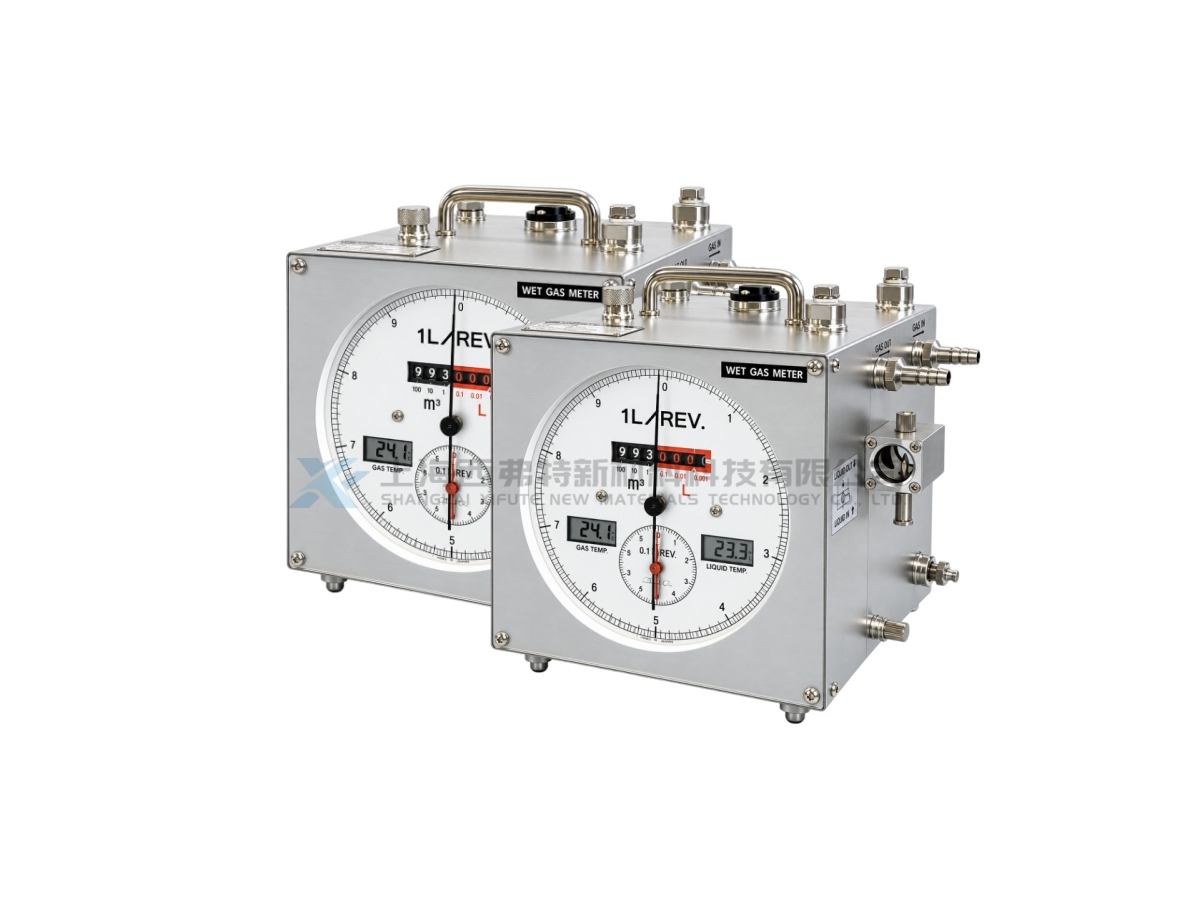

SHINAGAWA W-NK-1BE Wet Gas Meter
The W-NK-1BE is a wet gas meter in the SHINAGAWA W-NK series, mainly designed for experimentation and environmental measurement. Gas entering the meter drives the internal measuring drum, allowing gas flow and totalized volume to be measured through the fixed volume of the drum. The BE type features stainless steel construction with argon welding and soldering for applications requiring corrosion resistance.
Product Details
Product Features:
・Low-flow measuring range of 0.033–10 L/min
・Fine minimum scale of 1 mL
・Stable repeatability of ±0.1% to ±0.15%, depending on the flow range
・SUS304 stainless steel casing, measuring drum and machined parts
・Low pressure loss of 150 Pa
・Optional pulse output and manometer available
Applications:
・Laboratories: Gas flow and total volume measurement
・Environmental measurement: Environmental gas and sampling gas measurement
・Research and development: Gas flow experiments and performance testing
・Analytical equipment: Flow monitoring in gas analysis systems
・Measurement equipment: Low-flow gas measurement
| Item | W-NK-1BE |
|---|---|
| Product Type | Wet Gas Meter |
| Measuring Range | 0.033–10 L/min (2–600 L/h) |
| Drum Capacity | 1 L |
| One Revolution | 1 L |
| Minimum Scale | 1 mL |
| Connector Outside Diameter | φ11.5 mm |
| Pressure Loss | 150 Pa |
| Operating Pressure Range | 0–10 kPa |
| Operating Temperature Range | 4℃–50℃ |
| Repeatability (≥1/2 Qmax) | ±0.15% (Standard Deviation) |
| Repeatability (<1/2 Qmax) | ±0.1% (Standard Deviation) |
| Casing Material | SUS304 Stainless Steel |
| Measuring Drum Material | SUS304 Stainless Steel |
| Machined Parts Material | SUS304 Stainless Steel |
| Jointing | Argon Welding / Soldering |
| Dimensions | W318 × D218 × H263 mm |
| Weight | 5.8 kg |
| Weight with Filled Water | 9.5 kg |
