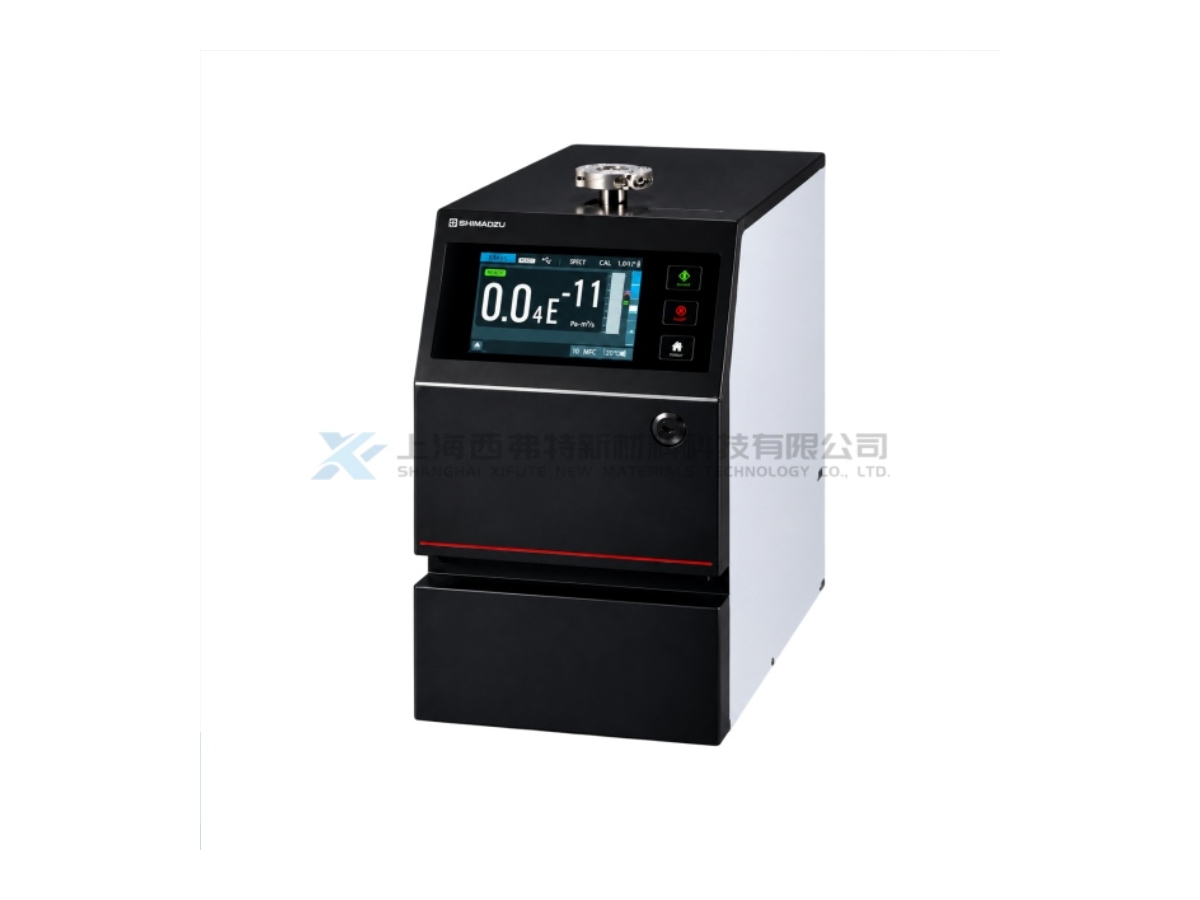

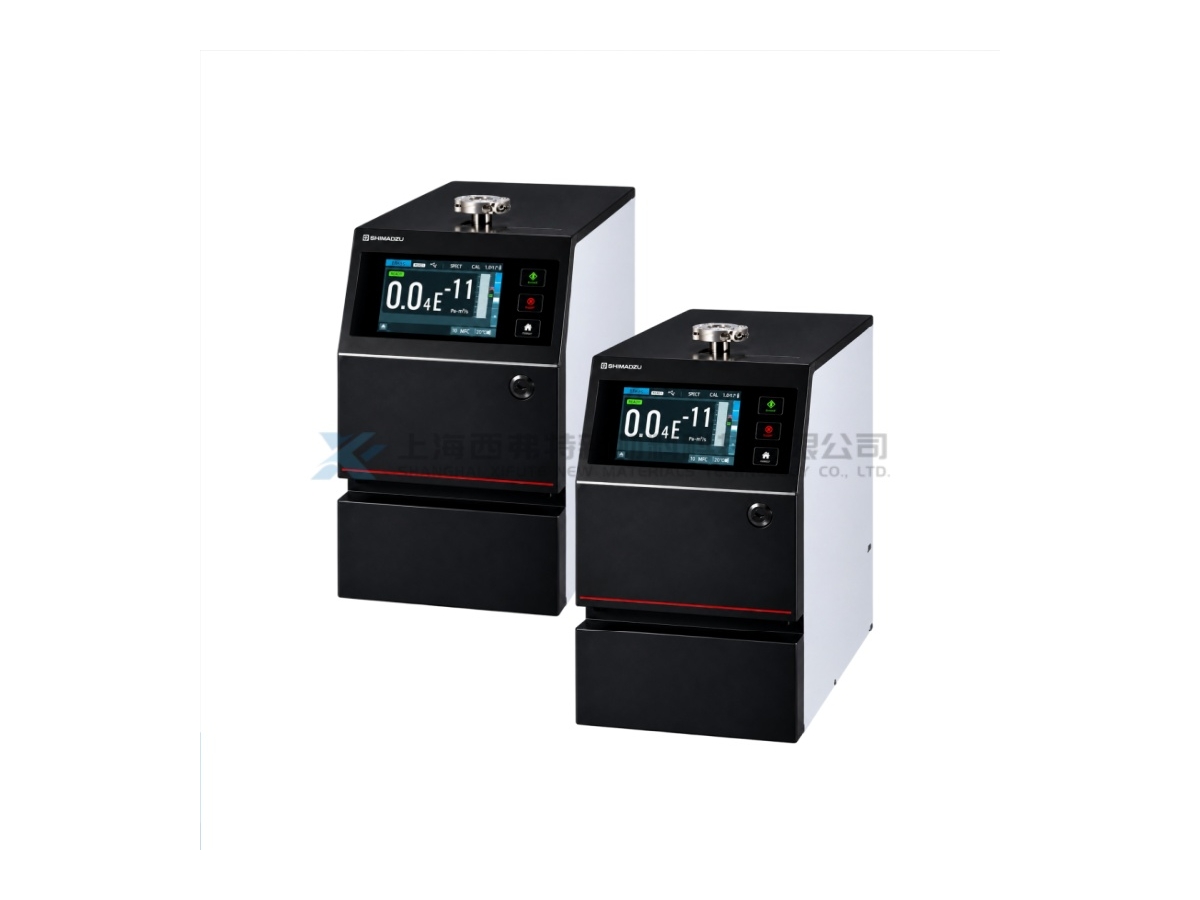

SHIMADZU MSE-2600 Transportable General-Purpose Helium/Hydrogen Mass Spectrometer Leak Detector
The SHIMADZU MSE-2600 is a transportable general-purpose mass spectrometer leak detector designed for a wide range of applications, from equipment maintenance to integration into automated inspection systems. It supports both helium and hydrogen as tracer gases. Its helium detection sensitivity is less than 8.00 × 10⁻¹³ Pa·m³/s. The helium leak-rate display range is 10⁻¹³ to 10⁰ Pa·m³/s, while the hydrogen range is 10⁻⁹ to 10⁰ Pa·m³/s, allowing quantitative measurement of both very small and relatively large leaks. The MSE-2600 incorporates SHIMADZU's 270° deflection analysis tube, two yttria-coated iridium filaments, and temperature-compensated automatic sensitivity tuning. The 270° analysis design contributes to high measurement accuracy and strong background recovery performance. Its vacuum system combines a molecular drag pump and an oil rotary vacuum pump. The helium pumping speed at the test port is 5.2 L/s, helping reduce response and background-recovery time during leak inspection.
Product Details
Product Features
High Detection Sensitivity:Helium sensitivity of <8.00 × 10⁻¹³ Pa·m³/s supports quantitative detection of extremely small leaks.
Helium and Hydrogen Detection:Supports both helium and hydrogen tracer gases for flexible leak-test processes.
270° Deflection Analysis Tube:SHIMADZU's 270° mass-analysis design provides high ion selectivity and accurate measurements.
5.2 L/s Helium Pumping Speed:High test-port helium pumping speed helps reduce inspection and recovery time.
Transportable General-Purpose Design:The main unit weighs approximately 52 kg, making it suitable for field maintenance as well as system integration.
Automation-Friendly Interfaces:RS-232C, RS-485, EXT-UNIT and configurable digital I/O allow connection to automated inspection systems.
Product Applications
Vacuum Equipment Maintenance:For leak inspection of vacuum systems, vacuum furnaces, piping and related equipment.
Welded Pipes and Hermetic Components:Suitable for vacuum spray testing of welded piping, flexible tubes and hermetic seals.
Semiconductor and Electronic Equipment:For semiconductor manufacturing equipment and electronic products requiring high leak tightness.
Automotive Components:Suitable for air-conditioning systems, battery-related components and other automotive parts requiring airtightness.
Compressors and Heat Exchangers:With the sniffer method, the system can inspect components that cannot be evacuated, including compressors, heat exchangers and condensers.
Automated Production Lines:Communication interfaces and digital I/O make the MSE-2600 suitable for integration into automated leak-test equipment and manufacturing lines.
| Item | SHIMADZU MSE-2600 |
|---|---|
| Product Type | Transportable General-Purpose Helium/Hydrogen Mass Spectrometer Leak Detector |
| Brand | SHIMADZU |
| Model | MSE-2600 |
| Detection Gas | Helium / Hydrogen |
| Helium Detection Sensitivity | <8.00 × 10⁻¹³ Pa·m³/s |
| Helium Leak Rate Display Range | 10⁻¹³ to 10⁰ Pa·m³/s |
| Hydrogen Leak Rate Display Range | 10⁻⁹ to 10⁰ Pa·m³/s |
| Analysis Tube | 270° Deflection Type |
| Magnetic Flux Density | 0.17 T |
| Filament | Yttria-Coated Iridium × 2 |
| Sensitivity Calibration | Temperature-Compensated Automatic Tuning |
| High-Vacuum Pump | Molecular Drag Pump |
| Molecular Drag Pump Structure | 70 L/s |
| Fore Pump | Oil Rotary Vacuum Pump |
| Fore Pump Capacity | 30 L/min at 50 Hz |
| Vacuum Gauge | 2 Pirani Gauge Systems |
| Maximum Test-Port Pressure | 1,000 Pa |
| Test-Port Connection | NW25KF |
| Helium Pumping Speed | 5.2 L/s |
| Main Unit Mass | Approx. 52 kg |
| Power Supply | AC 100/110/120/200/220/230/240 V |
| Frequency | 50/60 Hz |
| Voltage Tolerance | ±10% |
| Power Consumption | 400 VA |
| Communication | RS-232C / RS-485 |
| External Interface | EXT-UNIT |
| Digital I/O | 4 Inputs / 12 Outputs, NPN/PNP Selectable |
| Typical Applications | Maintenance, Vacuum Leak Testing, Airtightness Inspection, Production-Line Integration |
