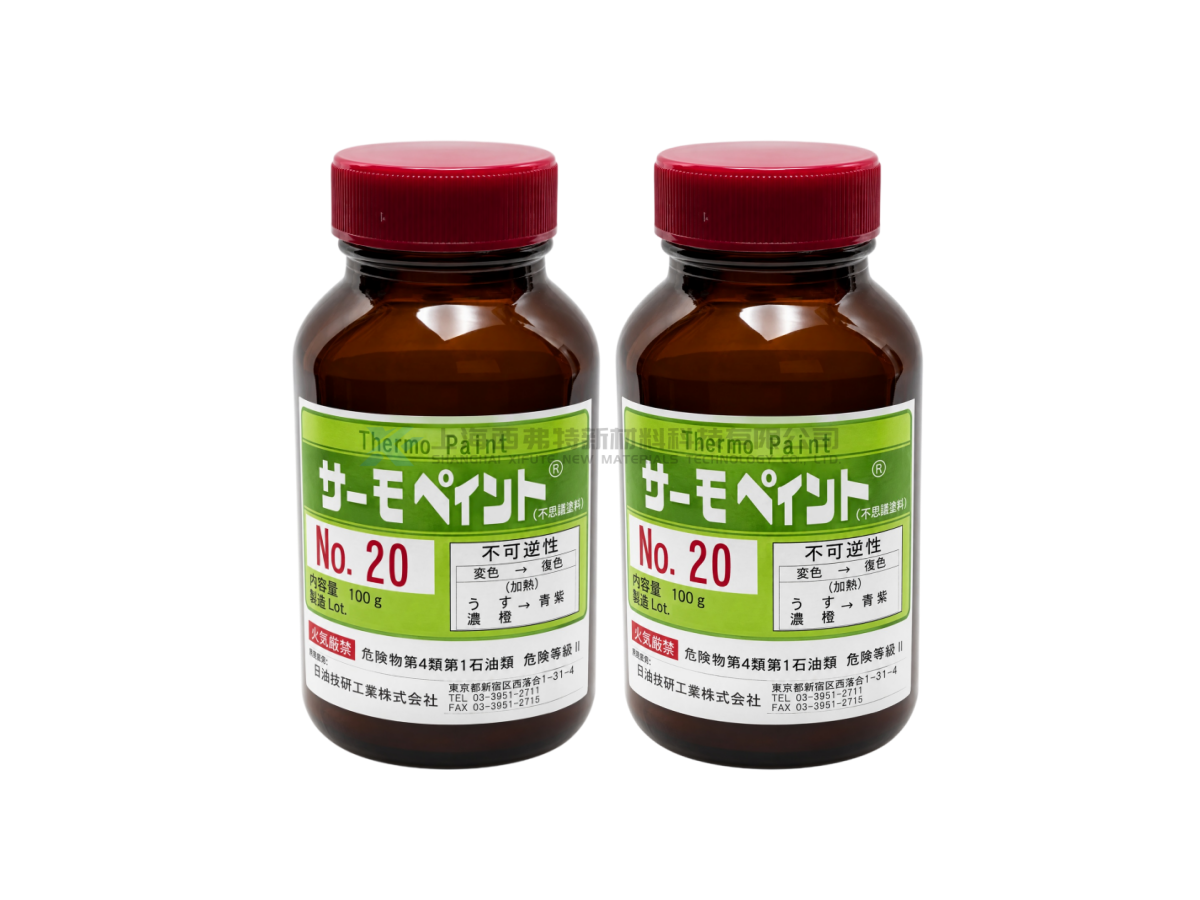

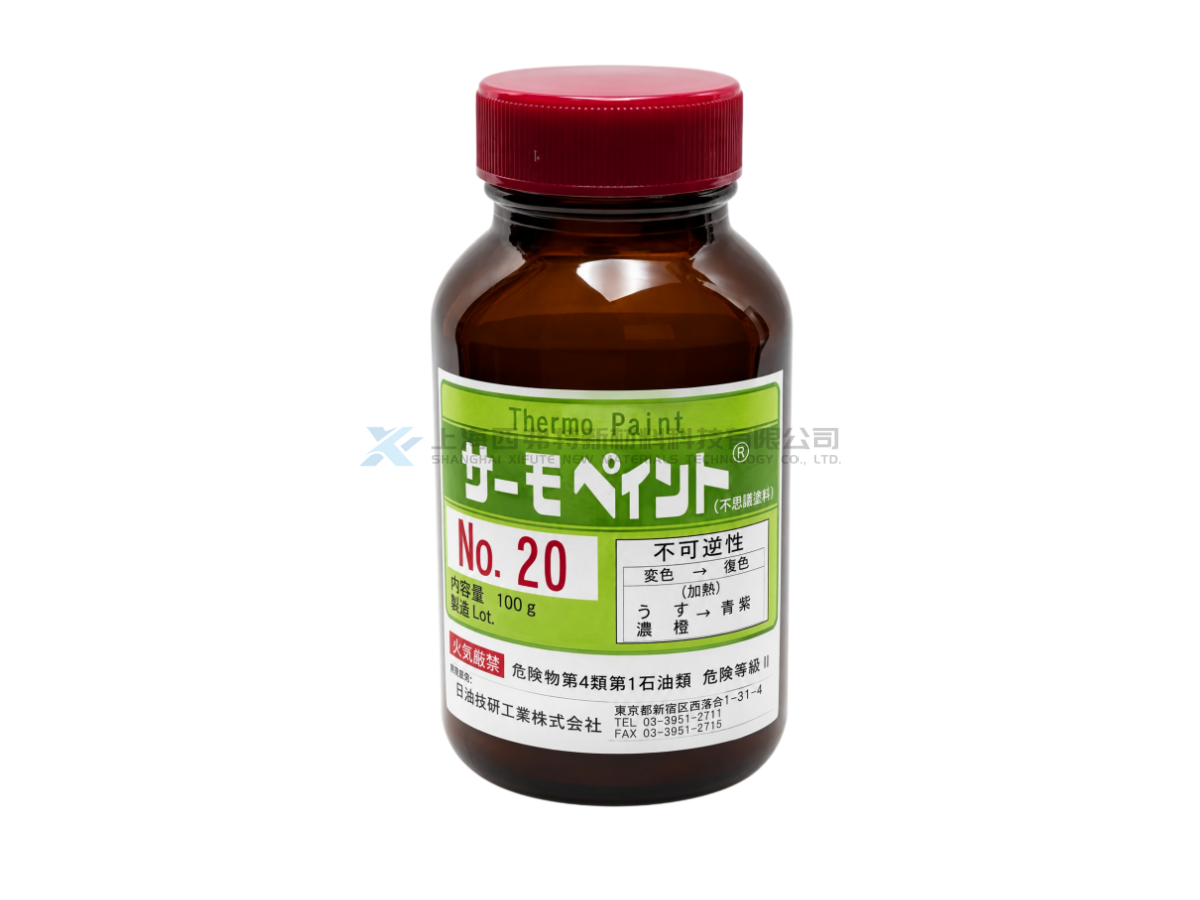

Nigk Corporation Thermo Paint No.20 Temperature-Monitoring Paint
Thermo Paint No.20 is a temperature-management coating manufactured by Nichiyu Giken Kogyo Co., Ltd. It is intended for machinery, industrial components and selected test areas where temperature conditions need to be monitored. The product is supplied as a pale yellow-orange liquid coating formulated with pigments, resin and organic solvents. The formulation contains a hexaamminecobalt(III) phosphate complex, pigments, resin and organic solvents such as toluene, xylene and ethylbenzene. The product has a density of approximately 1.1, is poorly soluble in water and soluble in organic solvents, making it suitable for localized coating on equipment and components. Thermo Paint No.20 is a solvent-based industrial coating. Adequate ventilation is required during use, and the product should be kept away from heat, sparks, open flames and other ignition sources.
Product Details
Product Features
Temperature Management: Designed specifically for monitoring temperature conditions on machinery and industrial components.
Pale Yellow-Orange Coating: Supplied as a pale yellow-orange liquid for easy identification of coated monitoring areas.
Liquid Application: Can be applied to selected areas depending on equipment shape and monitoring requirements.
Solvent-Based Formulation: Uses pigments, resin and organic solvents for industrial surface coating applications.
Stable Under Normal Conditions: Chemically stable under normal handling and storage conditions.
Product Applications
Industrial Equipment Monitoring: Suitable for production machinery and equipment requiring temperature-condition monitoring.
Mechanical Components: Can be applied to bearing housings, metal parts and other selected monitoring locations.
Maintenance Inspection: Suitable for routine equipment inspection and maintenance involving temperature checks.
Industrial Testing: Suitable for mechanical testing, heat-resistance evaluation and other temperature-monitoring applications.
Production-Line Management: Suitable for designated monitoring areas on factory machinery and production equipment.
| Item | Thermo Paint No.20 |
|---|---|
| Product Type | Temperature-Monitoring Paint |
| Model | Thermo Paint No.20 |
| Physical State | Liquid |
| Color | Pale Yellow-Orange |
| Odor | Organic Solvent Odor |
| Main System | Pigments, Resin and Organic Solvents |
| Hexaamminecobalt(III) Phosphate Complex | Approx. 26% (20–30%) |
| Pigment Content | 1–5% |
| Resin Content | 5–10% |
| Toluene Content | Approx. 54% (50–60%) |
| Xylene Content | Approx. 5.8% (3.0–9.0%) |
| Ethylbenzene Content | Approx. 5.8% (3.0–9.0%) |
| 1-Butanol Content | 0.1–1% |
| MIBK Content | Approx. 0.20% (0.10–1.0%) |
| Boiling / Initial Boiling Point | 111°C |
| Flash Point, Closed Cup | 9.5°C |
| Kinematic Viscosity | 0.375 m²/s |
| Density | Approx. 1.1 |
| Water Solubility | Poorly Soluble |
| Organic Solvent Solubility | Soluble |

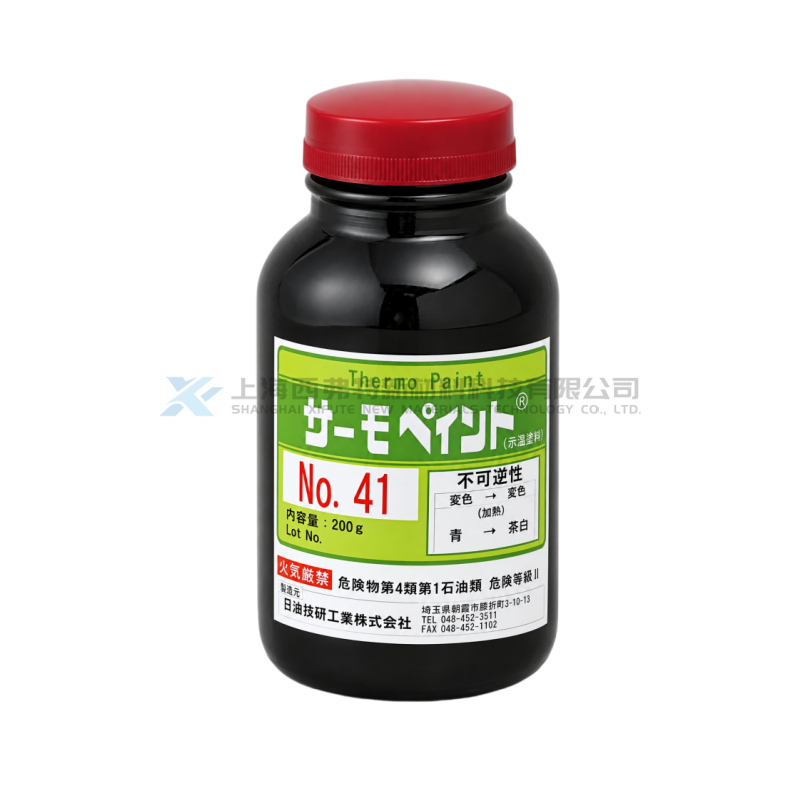

Nigk Corporation Thermo Paint No.41 Temperature-Monitoring Paint

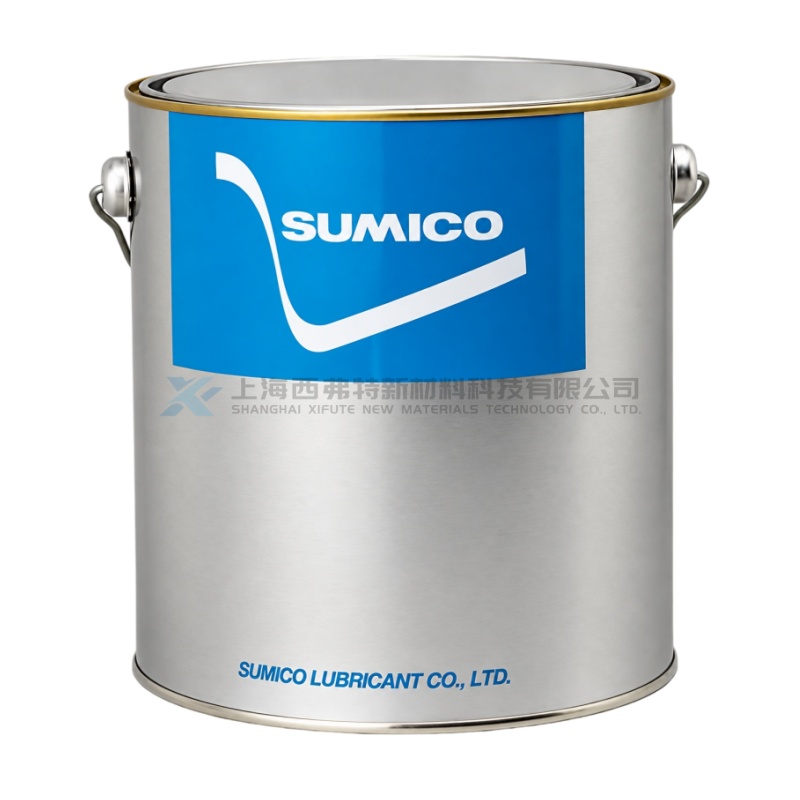

SUMICO Moly Powder PB Molybdenum Disulfide Solid Lubricant Powder
