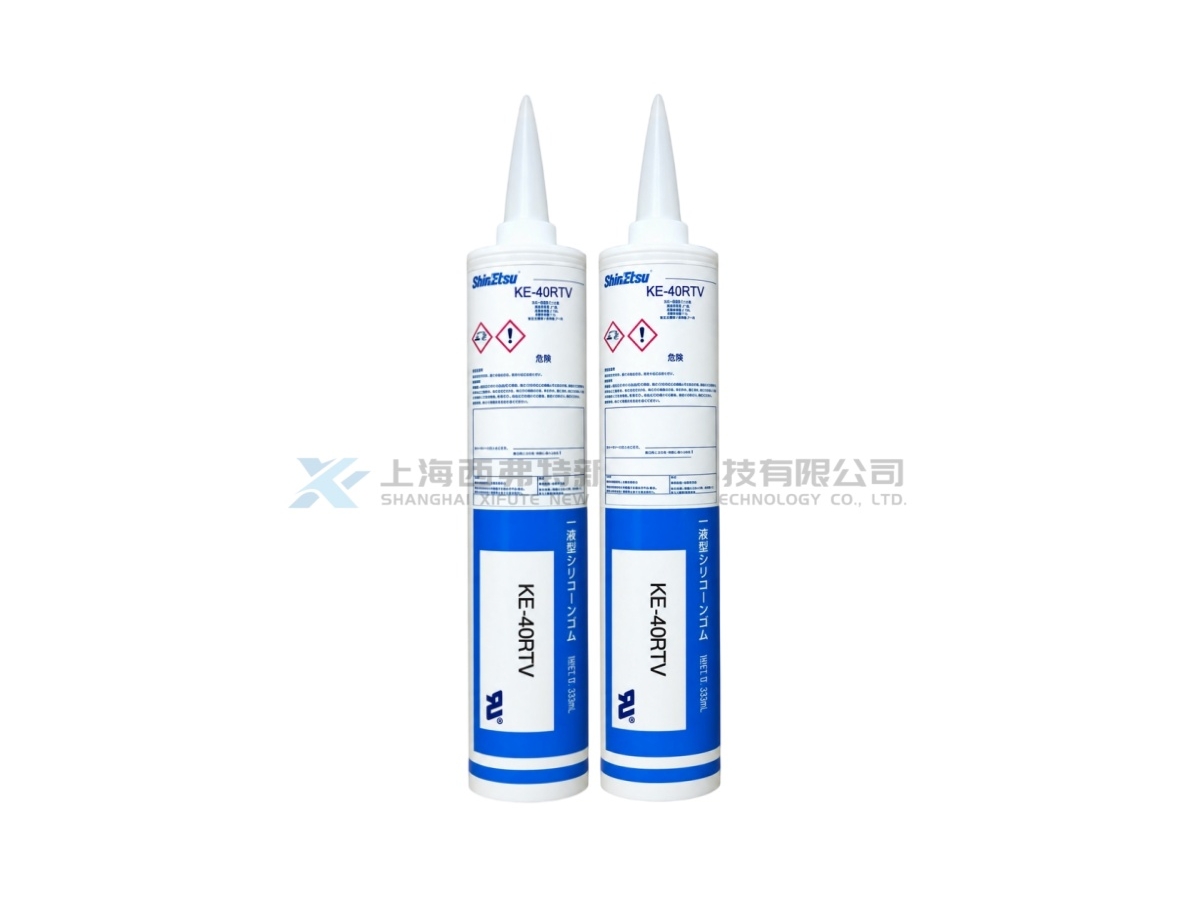

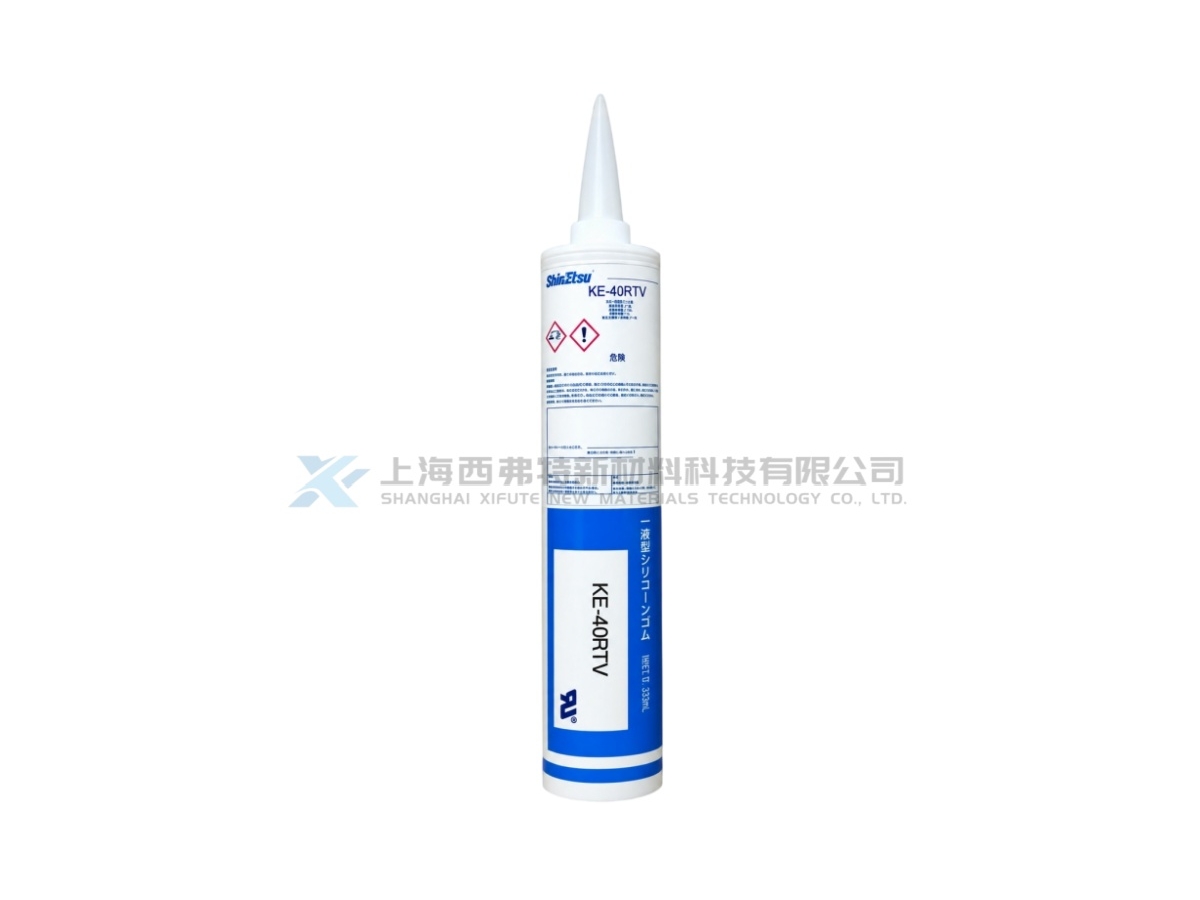

Shin-Etsu KE-40RTV Flame-Retardant RTV Silicone Adhesive Sealant
KE-40RTV is a one-component, room-temperature vulcanizing silicone adhesive sealant developed by Shin-Etsu Chemical Co., Ltd. It features a neutral condensation cure system, thixotropic consistency, low odor, and non-corrosive properties. The product provides good adhesion to metals, plastics, glass, and ceramics without primer. After curing, it forms a tough and durable elastomer with UL 94 V-0 flame retardancy, making it suitable for electronic sealing, industrial bonding, and form-in-place gasketing.
Product Details
Product Features
・One-component, room-temperature curing
・UL 94 V-0 flame-retardant rating
・Good high- and low-temperature resistance
・Thixotropic, non-sagging paste
・Low odor, neutral cure, and non-corrosive
・Good electrical insulation properties
・Good adhesion to various substrates
Applications
・Electrical & Electronics: Electronic component sealing, insulation protection
・Industrial Equipment: Equipment housings, joint bonding and sealing
・Metal Processing: Metal component bonding and sealing
・Plastic Products: Plastic housings, structural component fixing
・Sealing Components: Form-in-place gasketing, joint sealing
|
Property |
KE-40RTV |
|---|---|
|
Product Type |
One-Component Silicone Adhesive/Sealant |
|
Cure Type |
Condensation, Room-Temperature Cure |
|
Color |
Gray, White |
|
Appearance |
Thixotropic Paste |
|
Density (23°C) |
1.58 g/cm³ |
|
Cure Conditions |
7 days at 23°C, 50% RH |
|
Tack-Free Time |
12 min |
|
Hardness (Shore A) |
60 |
|
Tensile Strength |
2.90 MPa |
|
Elongation at Break |
200% |
|
Shear Strength |
1.00 MPa |
|
Volume Resistivity |
1 TΩ·m |
|
Dielectric Strength |
25 kV/mm |
|
Dielectric Constant (50Hz) |
3.9 |
|
Dielectric Dissipation Factor (50Hz) |
1×10⁻² |
|
Thermal Conductivity |
0.42 W/(m·K) |
|
Usable Temperature Range |
-40°C to 180°C |
|
Flame Retardancy |
UL 94 V-0 |
