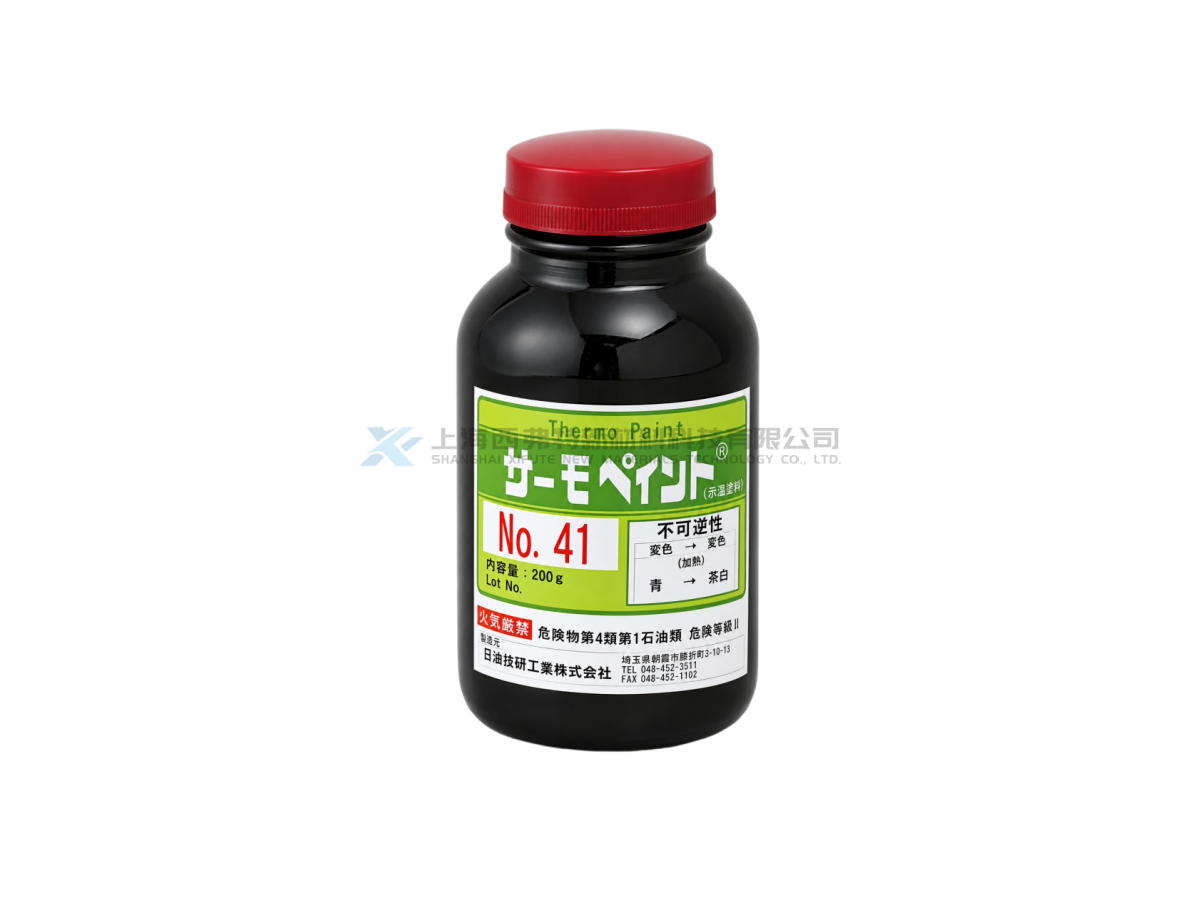

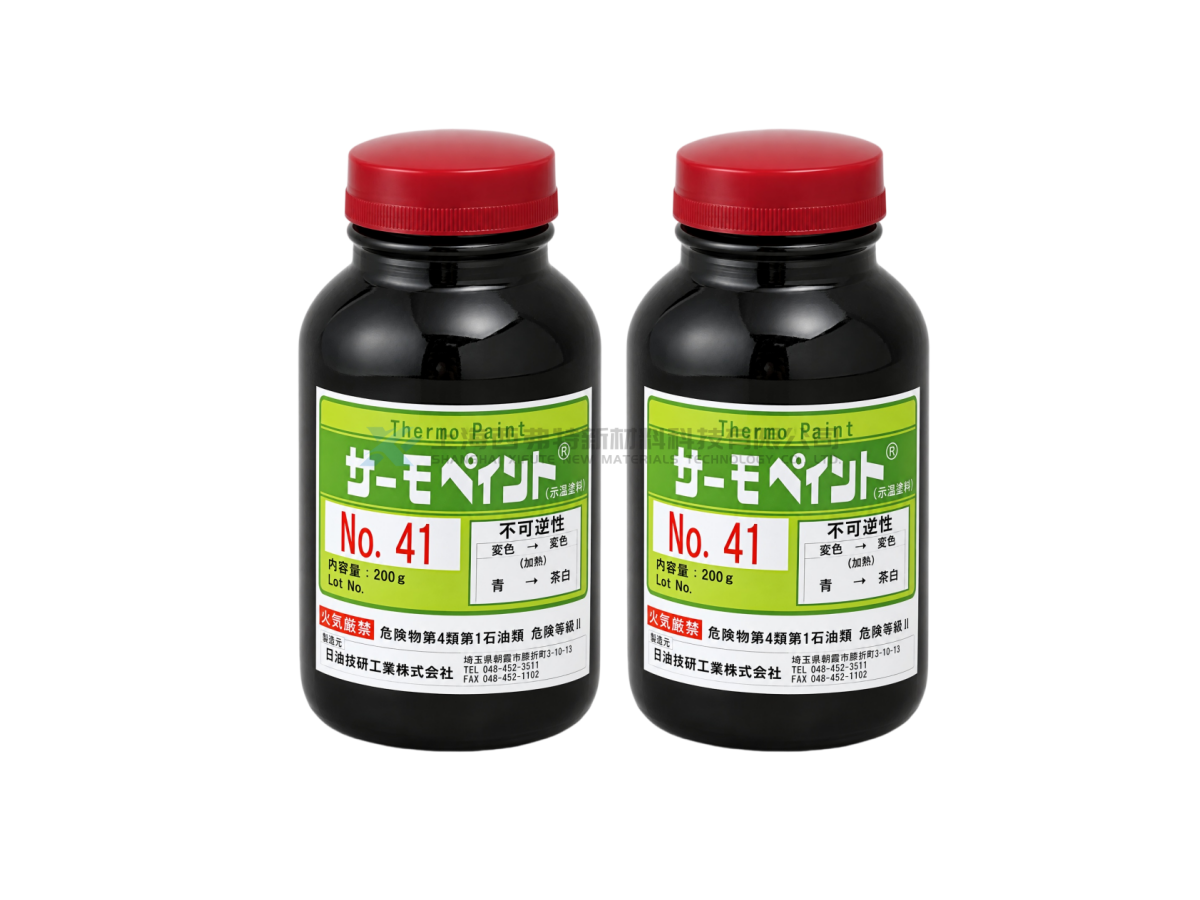

Nigk Corporation Thermo Paint No.41 Temperature-Monitoring Paint
Thermo Paint No.41 is a temperature-management coating manufactured by Nichiyu Giken Kogyo Co., Ltd. It is intended for machinery, industrial components and selected test areas where temperature conditions need to be monitored. The product is supplied as a blue liquid coating formulated with pigments, resin and organic solvents. The product is a blue liquid with an organic-solvent odor, a density of approximately 1.1, poor solubility in water and solubility in organic solvents. Its liquid form allows application to selected areas of machinery and components. As a solvent-based temperature-monitoring coating, it should be used with adequate ventilation and kept away from sparks, open flames, heat and other ignition sources.
Product Details
Product Features
Temperature Management: Designed specifically for monitoring temperature conditions on machinery and industrial components.
Blue Coating: Supplied as a blue liquid for easy identification of coated monitoring areas.
Liquid Application: Can be applied to selected locations depending on equipment shape and monitoring requirements.
Solvent-Based Formulation: Uses a pigment, resin and organic-solvent system suitable for industrial surface coating.
Stable Under Normal Conditions: Chemically stable under normal handling and storage conditions.
Product Applications
Industrial Equipment Monitoring: Suitable for production machinery and equipment requiring temperature-condition monitoring.
Mechanical Components: Can be applied to bearing housings, metal parts and other selected monitoring locations.
Maintenance Inspection: Suitable for routine equipment inspection and maintenance involving temperature checks.
Industrial Testing: Suitable for mechanical testing, heat-resistance evaluation and other temperature-monitoring applications.
Production-Line Management: Suitable for designated monitoring areas on factory machinery and production equipment.
| Item | Thermo Paint No.41 |
|---|---|
| Product Type | Temperature-Monitoring Paint |
| Model | Thermo Paint No.41 |
| Physical State | Liquid |
| Color | Blue |
| Odor | Organic Solvent Odor |
| Main System | Pigments, Resin and Organic Solvents |
| Main Pigments | Phthalocyanine Blue, Titanium Dioxide |
| Resin Content | 5–15% |
| Toluene Content | Approx. 68% |
| Xylene Content | Approx. 6.8% |
| Ethylbenzene Content | Approx. 6.8% |
| 1-Butanol Content | 0.2–0.9% |
| MIBK Content | Approx. 0.50% |
| Boiling / Initial Boiling Point | 111°C |
| Flash Point, Closed Cup | 12.0°C |
| Vapor Pressure @ 26°C | 4,000 Pa |
| Density | Approx. 1.1 |
| Water Solubility | Poorly Soluble |
| Organic Solvent Solubility | Soluble |
