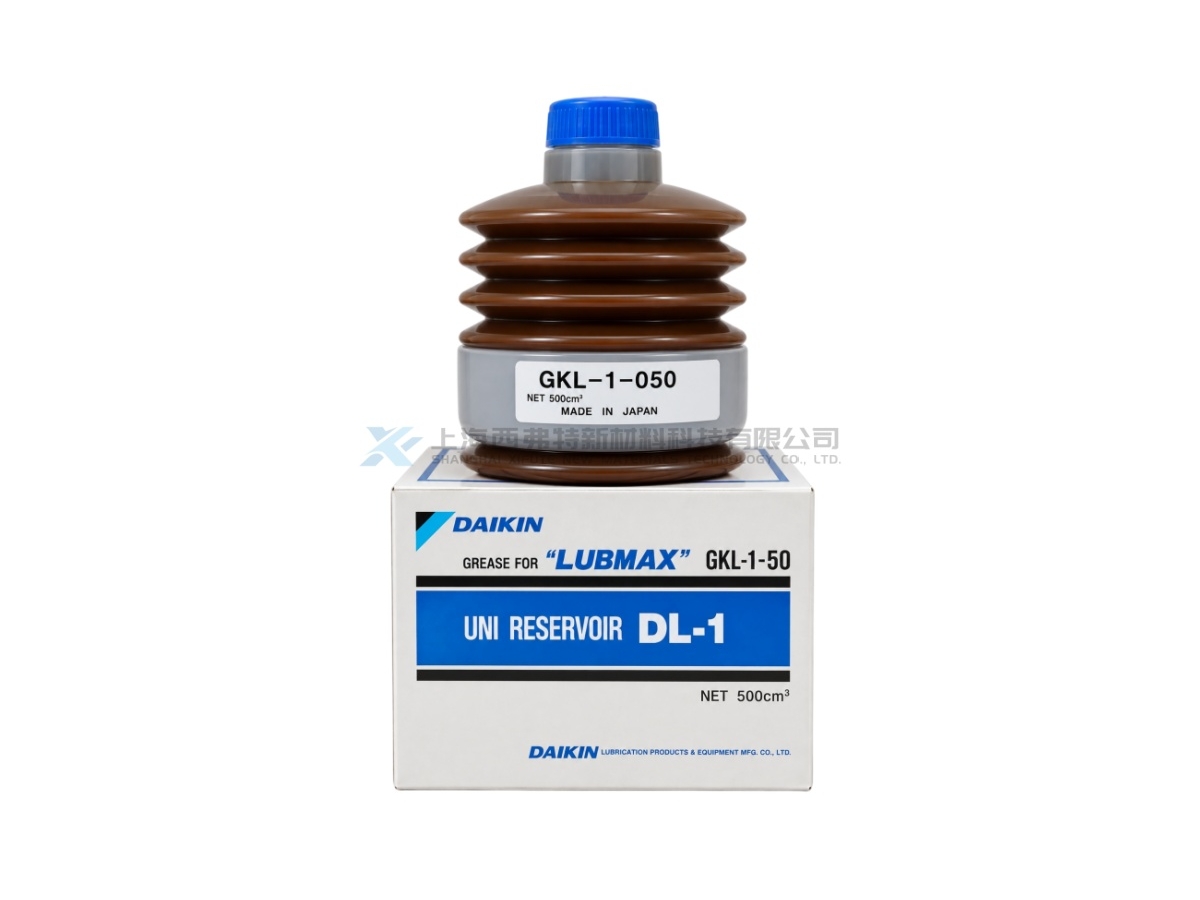

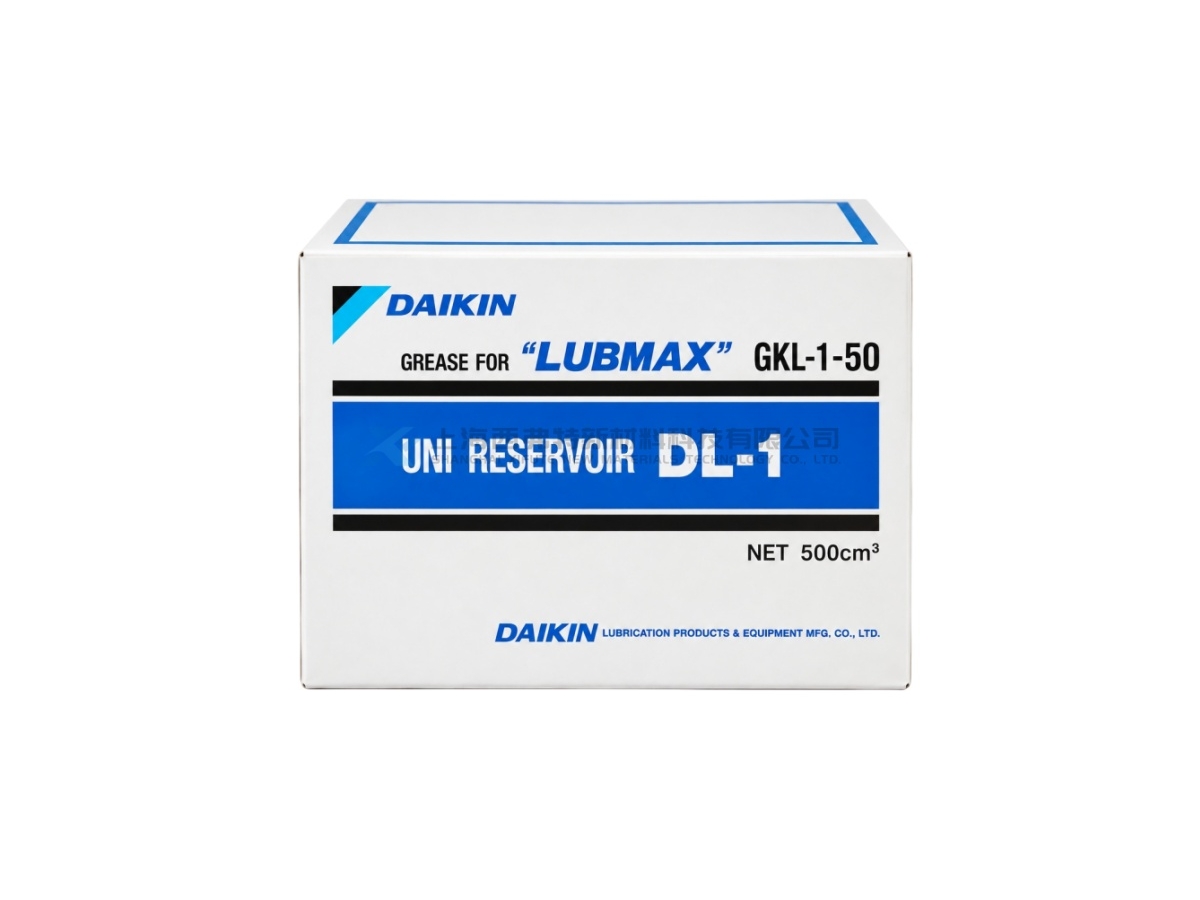

DAIKIN LUBMAX UNI RESERVOIR DL-1 (GKL-1-50) Lithium EP Grease Cartridge for Centralized Lubrication Systems
UNI RESERVOIR DL-1 (GKL-1-50) is a 500 cm³ bellows-type grease cartridge designed for DAIKIN LUBMAX centralized lubrication systems. In DAIKIN documentation, the model is shown as GKL-1-050, where the “1” corresponds to NLGI No.1 grease. The grease inside is KYODO YUSHI UNILUBE DL No.1. UNILUBE DL No.1 is an extreme-pressure multipurpose grease formulated with refined mineral oil and a lithium-soap thickener. It is designed for centralized lubrication and provides good extreme-pressure performance, water resistance and pumpability for steel-making and general industrial machinery. Compared with GKL-1-100, the main difference is cartridge capacity: GKL-1-100 is 1000 cm³, while GKL-1-050 is 500 cm³. Both use the same UNILUBE DL grease family, so the grease properties are not changed by cartridge size.
Product Details
Product Features
Good Extreme-Pressure Performance: Selected EP additives support stable lubrication under relatively high loads in bearings and other industrial components.
Good Water Resistance: The lithium-soap thickener provides good shear stability in the presence of water and moisture.
Good Pumpability: Low apparent viscosity supports smooth delivery through centralized lubrication piping and automatic grease systems.
Convenient Cartridge Replacement: The 500 cm³ bellows-type screw-in cartridge simplifies grease replenishment while helping reduce contamination by dust and air.
Suitable for Low-Temperature Centralized Lubrication: DAIKIN spare-parts references describe GKL-1-50 as a mineral-oil grease cartridge suitable for machine-tool centralized lubrication and low-temperature applications.
Product Applications
CNC Machine Tools: Suitable for machining centers, CNC lathes, grinding machines and other equipment fitted with compatible DAIKIN LUBMAX systems.
Centralized Lubrication Systems: Suitable for automatic systems that deliver controlled quantities of grease through piping to multiple lubrication points.
Electric Injection Molding Machines: Suitable for precision moving components and centralized lubrication systems in electric injection molding equipment.
Steel-Making Machinery: UNILUBE DL is suitable for steel-industry equipment and general industrial machinery.
Industrial Bearings and Sliding Mechanisms: Suitable for bearings, sliding surfaces and other industrial lubrication points requiring EP performance, water resistance and good pumpability.
| Item | UNI RESERVOIR DL-1 (GKL-1-50) |
|---|---|
| Product Type | Lithium EP Grease Cartridge for Centralized Lubrication |
| System Brand | DAIKIN LUBMAX |
| Grease Manufacturer | KYODO YUSHI |
| Cartridge Model | GKL-1-50 / GKL-1-050 |
| Corresponding Grease | UNILUBE DL No.1 |
| Thickener | Lithium Soap |
| Base Oil | Mineral Oil |
| NLGI Grade | No.1 |
| Worked Penetration | 325 |
| Service Temperature Range | -20°C to 130°C |
