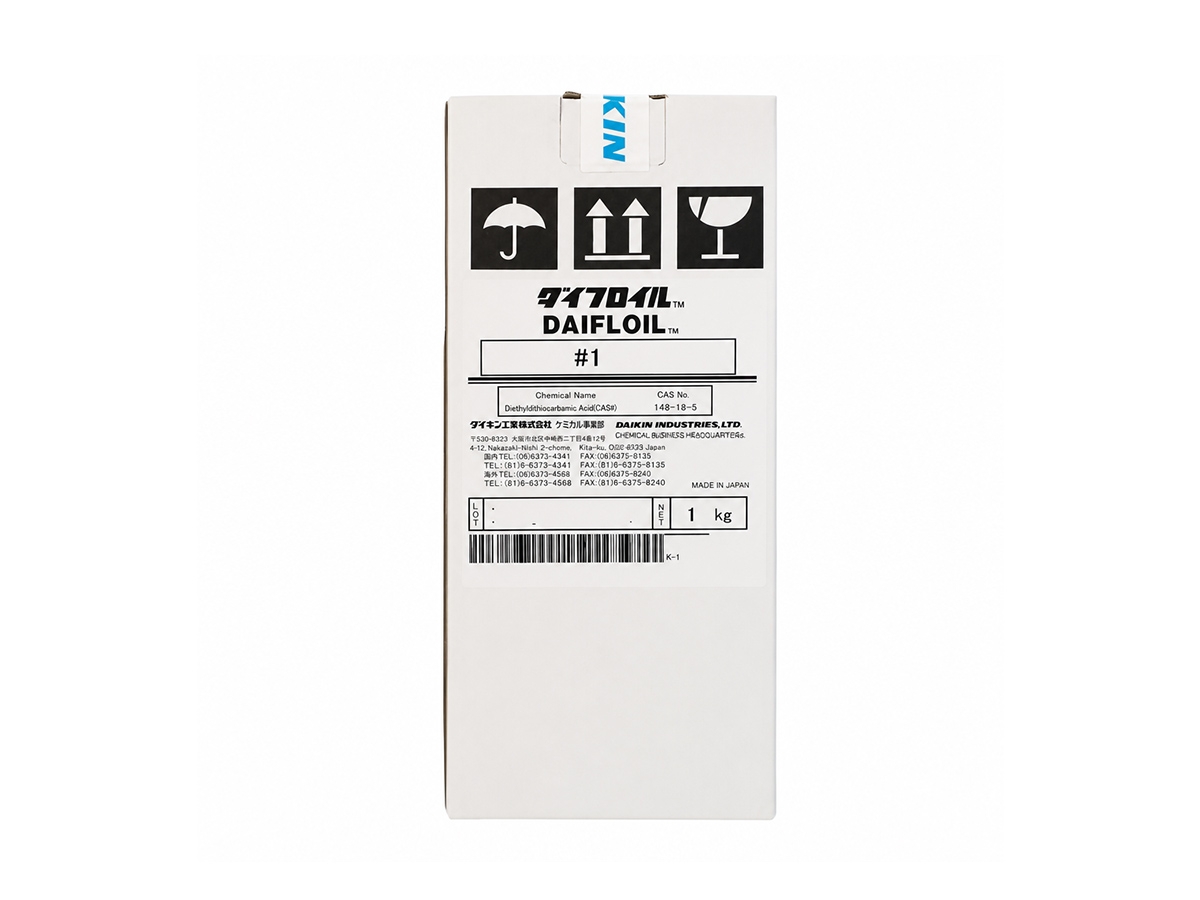

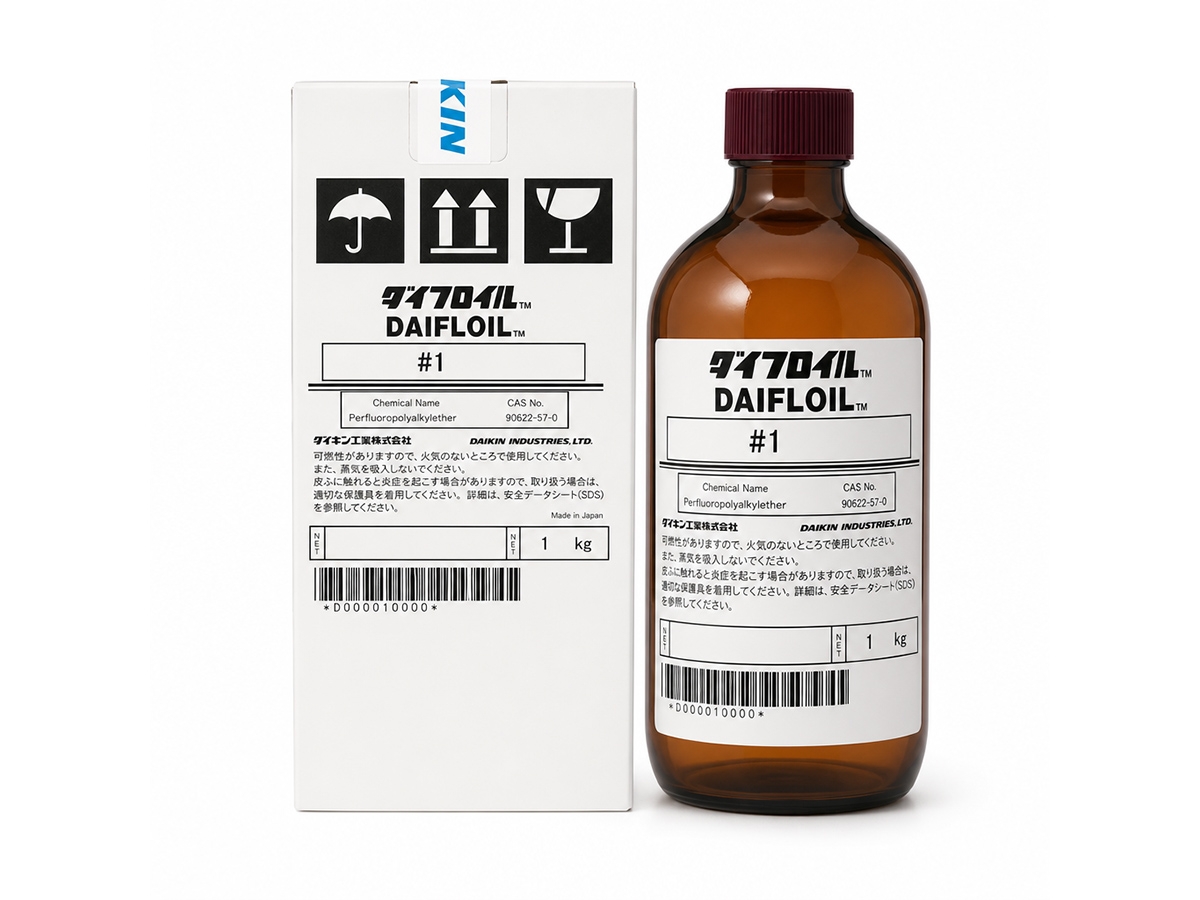

DAIFLOIL Series # 1 # 3 # 10 # 20 # 50 # 100 Fluorochlorine
DAIKIN DAIFLOIL #1, #3, #10, #20, #50, and #100 are low-molecular-weight compounds of chlorotrifluoroethylene. The DAIFLOIL series provides excellent heat resistance, chemical resistance, and good lubricity. Different grades are available according to viscosity and molecular weight, covering products from low-viscosity transparent oils to semi-transparent soft waxes and waxes.As the grade number increases, the average molecular weight and viscosity generally increase. #1 is a transparent light oil, #3 is a transparent medium oil, #10 and #20 are transparent heavy oils, #50 is a semi-transparent soft wax, and #100 is a semi-transparent wax. The structural formula is -(CF₂CFCl)n-. The series is intended for general industrial applications requiring heat resistance, chemical resistance, and lubricating performance.
Product Details
Product Features
Excellent heat resistance for industrial lubrication and functional-fluid applications
Excellent chemical resistance and good stability in various chemical environments
Good lubricity for reducing friction and supporting stable operation
Available in multiple grades: #1, #3, #10, #20, #50, and #100
Covers a wide consistency range from transparent light oil to semi-transparent wax
Low-molecular-weight chlorotrifluoroethylene compound with high chemical stability
Applicable Industries / Equipment
Industrial lubrication points requiring heat and chemical resistance
Precision mechanisms requiring different viscosity grades
Sliding, friction, and moving parts used in chemically demanding environments
Special industrial equipment requiring chlorofluorinated lubricating media
Sealing, lubrication, and functional-fluid applications requiring high chemical stability
Technical Specifications — #1
| Item | #1 |
|---|---|
| Average Molecular Weight（approx） | 500 |
| Appearance（25℃） | Transparent light oil |
| Pour Point（℃） | ≤-70 |
| Specific Gravity（25℃/25℃） | 1.850～1.890 |
| Viscosity（25℃，cP） | 10～30 |
| Kinematic Viscosity（25℃，cSt） | 5～15 |
| Refractive Index, nD | 1.397～1.403 |
| Surface Tension（25℃，mN/m） | 26～28 |
| Coefficient of Volume Expansion（1/℃） | 7.9×10⁻⁴ |
Technical Specifications — #3
| Item | #3 |
|---|---|
| Average Molecular Weight（approx） | 700 |
| Appearance（25℃） | Transparent medium oil |
| Pour Point（℃） | |
| Specific Gravity（25℃/25℃） | 1.900～1.930 |
| Viscosity（25℃，cP） | 35～100 |
| Kinematic Viscosity（25℃，cSt） | 20～50 |
| Refractive Index, nD | 1.405～1.407 |
| Surface Tension（25℃，mN/m） | 28～29 |
Technical Specifications— #10
| Item | #10 |
|---|---|
| Average Molecular Weight（approx） | 900 |
| Appearance（25℃） | Transparent heavy oil |
| Pour Point（℃） | -20～0 |
| Specific Gravity（25℃/25℃） | 1.～1.955 |
| Viscosity（25℃，cP） | 190～490 |
| Kinematic Viscosity（25℃，cSt） | 100～250 |
| Refractive Index, nD | 1.408～1. |
| Surface Tension（25℃，mN/m） | 29～30 |
Technical Specifications — #20
| Item | #20 |
|---|---|
| Average Molecular Weight（approx） | 1000 |
| Appearance（25℃） | Transparent heavy oil |
| Pour Point（℃） | 5～15 |
| Specific Gravity（25℃/25℃） | 1.960～1.975 |
| Viscosity（25℃，cP） | 700～3000 |
| Kinematic Viscosity（25℃，cSt） | 350～1500 |
| Refractive Index, nD | 1.412～1.414 |
| Surface Tension（25℃，mN/m） | 30～31 |
Technical Specifications — #50
| Item | #50 |
|---|---|
| Average Molecular Weight（approx） | 1100 |
| Appearance（25℃） | Translucent soft wax |
| Pour Point（℃） | 20～40 |
| Specific Gravity（25℃/25℃） | 1.945～1.965 |
| Viscosity（25℃，cP） | 35～140 |
| Kinematic Viscosity（100℃，cSt） | 20～70 |
Technical Specifications— #100
| Item | #100 |
|---|---|
| Average Molecular Weight（approx） | 1300 |
| Appearance（25℃） | 45～65 |
| Specific Gravity（25℃/25℃） | 1.970～1.995 |
| Viscosity（25℃，cP） | 150～300 |
| Kinematic Viscosity（100℃，cSt） | 80～420 |
