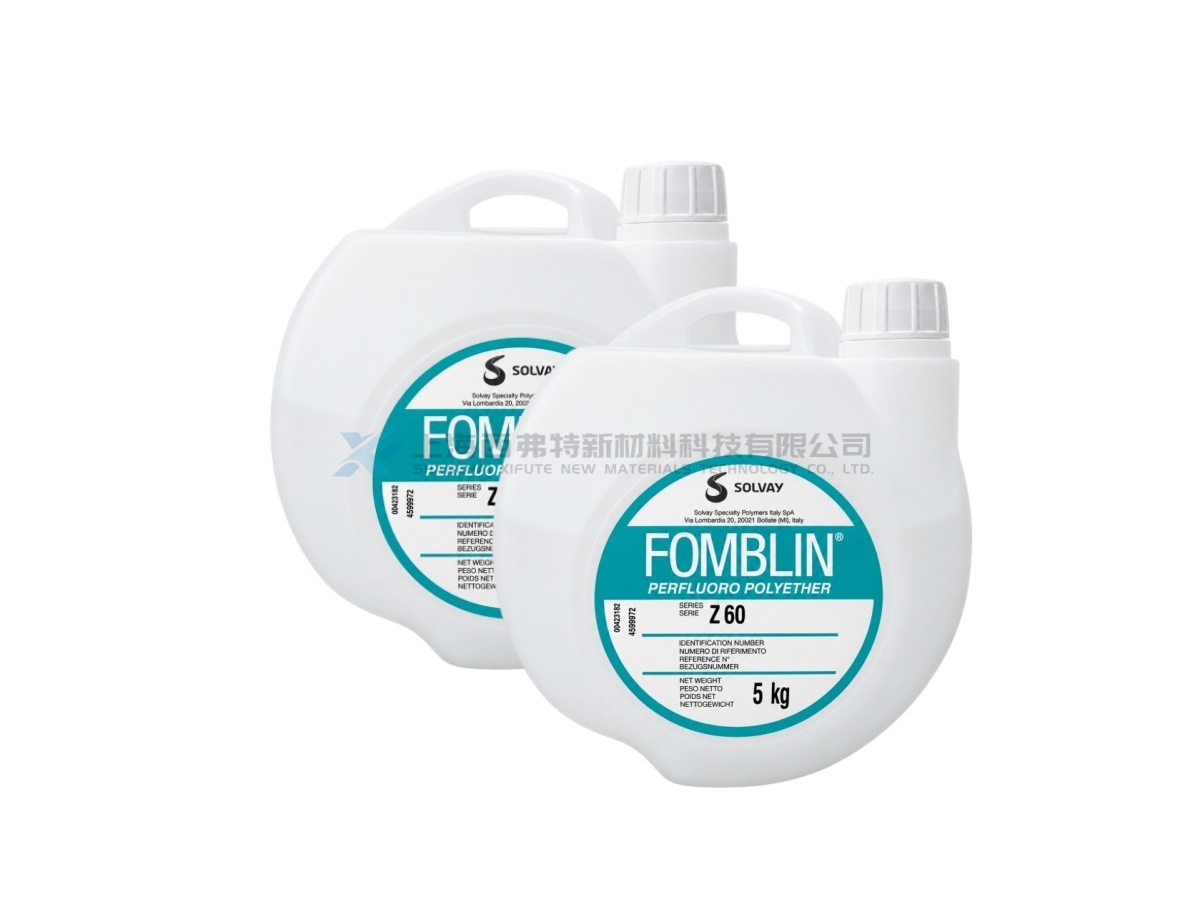

Fomblin® Z60 High-Viscosity PFPE Perfluoropolyether Lubricant
Fomblin® Z60 is a high-viscosity perfluoropolyether (PFPE) lubricant in the Fomblin Z series. PFPE fluids are composed of carbon, fluorine and oxygen and are known for excellent chemical inertness, thermal stability, low vapor pressure, low surface tension and good dielectric properties. Z60 has typical kinematic viscosities of approximately 600 cSt at 20°C, 355 cSt at 40°C and 98 cSt at 100°C. Its high viscosity and very low evaporation loss make it suitable for applications requiring a durable lubricant film and minimal fluid loss. Because of the inherent stability of PFPE chemistry, Fomblin Z60 is particularly suitable for vacuum, high-temperature and chemically aggressive environments where conventional mineral or hydrocarbon-based lubricants may be unsuitable.
Product Details
Product Features
Very Low Volatility:Typical evaporation loss is approximately 0.2% at 204°C for 22 hours.
High-Viscosity Lubricating Film:A kinematic viscosity of about 355 cSt at 40°C supports a robust lubricating film in demanding applications.
High Viscosity Index:Maintains relatively stable viscosity over a broad temperature range.
Excellent Chemical Inertness:PFPE fluids provide good resistance to many chemical environments and good compatibility with many metals, plastics and elastomers.
Low Vapor Pressure:Well suited to vacuum and low-contamination applications where lubricant evaporation must be minimized.
Product Applications
Vacuum Equipment:For bearings and moving parts requiring low-volatility lubrication.
Precision Rolling Bearings:Suitable for precision bearing applications where lubricant evaporation and outgassing must be minimized.
High-Temperature Lubrication:For mechanisms where conventional lubricants may oxidize or evaporate too quickly.
Chemically Aggressive Environments:Suitable where chemical inertness and fluid stability are important.
Clean and Low-Contamination Equipment:Applicable to precision systems requiring low vapor emission and stable lubrication.
| Item | Fomblin® Z60 |
|---|---|
| Product Type | PFPE Perfluoropolyether Lubricant |
| Brand | Fomblin® |
| Model | Z60 |
| Chemical Type | PFPE |
| Approximate ISO Grade | ISO VG 320 |
| Average Molecular Weight | Approx. 21,500* |
| Kinematic Viscosity @ 20°C | 600 cSt |
| Kinematic Viscosity @ 40°C | 355 cSt |
| Kinematic Viscosity @ 100°C | 98 cSt |
| Viscosity Index | Approx. 350–360* |
| Pour Point | -63°C |
| Density @ 20°C | 1.85 g/cm³ |
| Surface Tension @ 20°C | Approx. 25 dyn/cm |
| Evaporation Loss @ 204°C, 22 h | Approx. 0.2% |
| Key Properties | Low Volatility / Chemical Inertness / High VI / Low Vapor Pressure / High-Temperature Stability |
| Main Applications | Vacuum Equipment / Precision Bearings / High-Temperature Lubrication |
CITRAX EP No.0
CITRAX EP No.1
CITRAX EP No.2
GC Grease 350
MULTEMP PS NO.2
MULTEMP LRL No.3
Multemp SRL
ET-100K
KYODO YUSHI RAREMAX SUPER

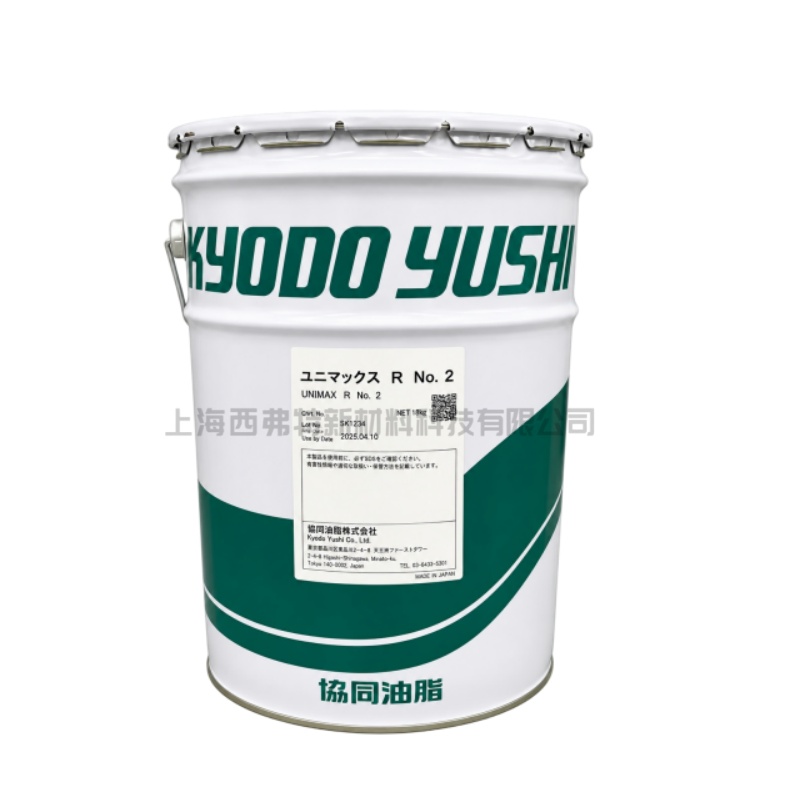

Unimax R No.2

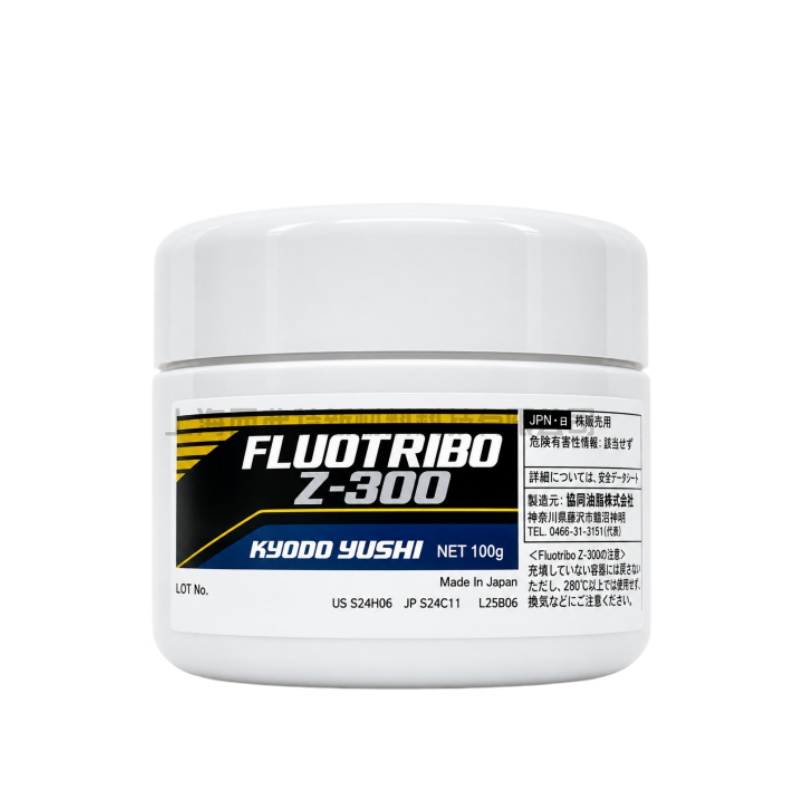

FLUOTRIBO Z-300 Fluorinated Grease Series
