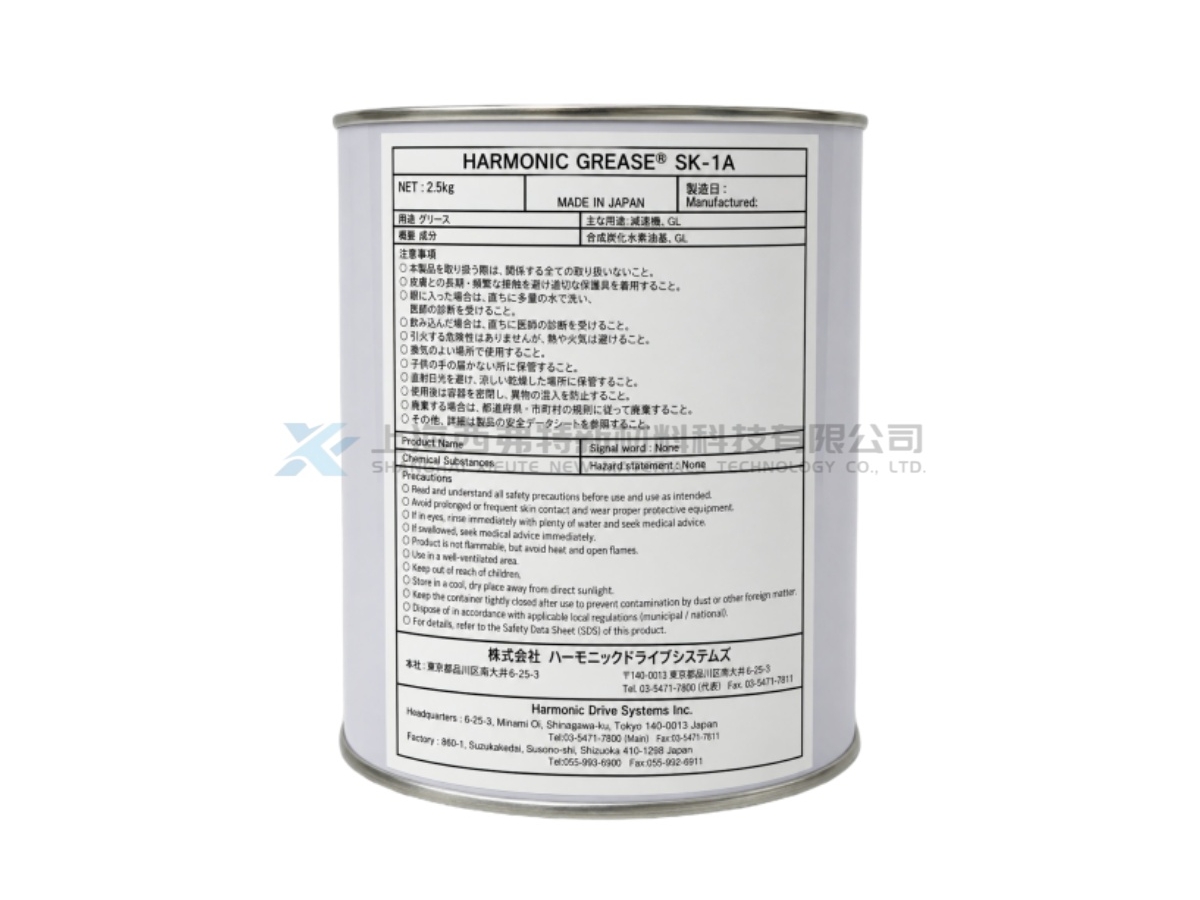

Harmonic Drive HarmonicGrease® SK-1A Special Grease for Harmonic Drive Gearheads
HarmonicGrease® SK-1A is a special-purpose lubricant developed specifically for HarmonicDrive® gear systems by Harmonic Drive Systems. The manufacturer states that it provides excellent durability and efficiency compared with ordinary general-purpose grease when used in Harmonic Drive gearheads. The formulation uses refined mineral oil as the base oil and lithium soap as the thickener, together with extreme-pressure and other functional additives. Official technical data lists the product as NLGI No.2, with a worked penetration of 265 to 295 at 25°C and a dropping point of approximately 197°C. Harmonic Drive recommends SK-1A primarily for larger Harmonic Drive gear units, including sizes 20, 32, 45 and 65 in the CSG-GH / CSF-GH range. Its recommended operating temperature range is 0°C to 40°C.
Product Details
Product Features
Designed for Harmonic Drive Gearing:Specially formulated for HarmonicDrive® precision gearing rather than general-purpose machinery.
Good Durability:Developed to provide reliable long-term performance in Harmonic Drive gear mechanisms.
Efficient Transmission Performance:Designed to maintain smooth and efficient operation of the reduction mechanism.
Extreme-Pressure Protection:Contains EP additives to protect highly loaded gear-contact areas.
NLGI No.2 Consistency:Provides a stable grease consistency suitable for retention inside precision gearheads.
Product Applications
HarmonicDrive® Gearheads:For internal lubrication of Harmonic Drive gear mechanisms.
CSG-GH / CSF-GH Series:Officially recommended for sizes 20, 32, 45 and 65.
Industrial Robot Joints:Suitable for robotic joints using HarmonicDrive® reduction gears, subject to the lubrication specification of the exact gear model.
Precision Positioning Systems:Applicable to automation, semiconductor, machine-tool and precision-motion systems using HarmonicDrive® gearheads.
| Item | HarmonicGrease® SK-1A |
|---|---|
| Product Type | Special Grease for Harmonic Drive Gearheads |
| Brand | Harmonic Drive Systems |
| Model | SK-1A |
| Official Name | HarmonicGrease® SK-1A |
| Base Oil | Refined Mineral Oil |
| Thickener | Lithium Soap |
| Additives | Extreme-Pressure Agent and Others |
| NLGI Grade | No.2 |
| Worked Penetration @ 25°C | 265–295 |
| Dropping Point | Approx. 197°C |
| Color | Yellow |
| Recommended Operating Temperature | 0°C to 40°C |
| Key Properties | Durability / Efficiency / EP Protection |
| Recommended Gear Size | Mainly Size 20 and Larger |
| Typical Sizes | 20 / 32 / 45 / 65 |
| Common Packaging | 0.5 kg / 2.0 kg / 16 kg / 14 fl. oz cartridge |
