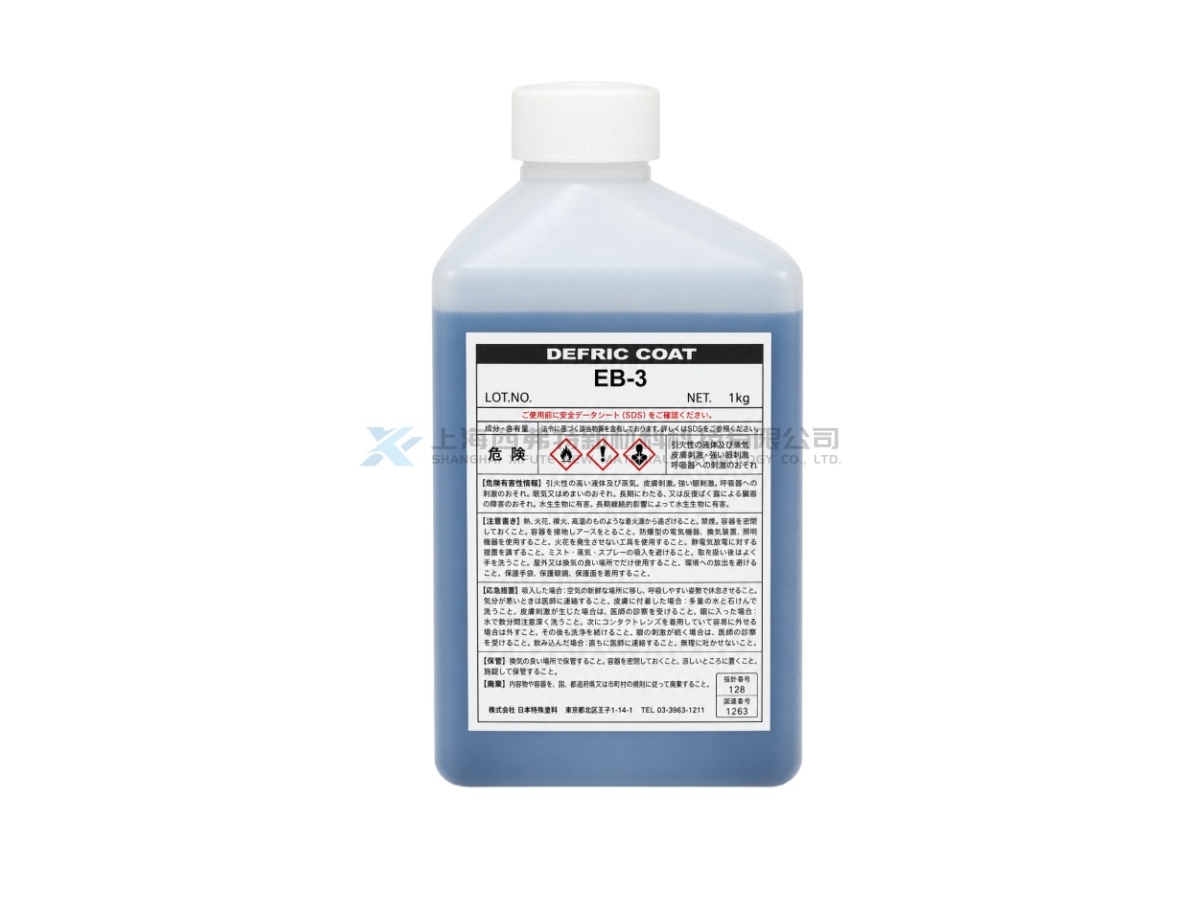

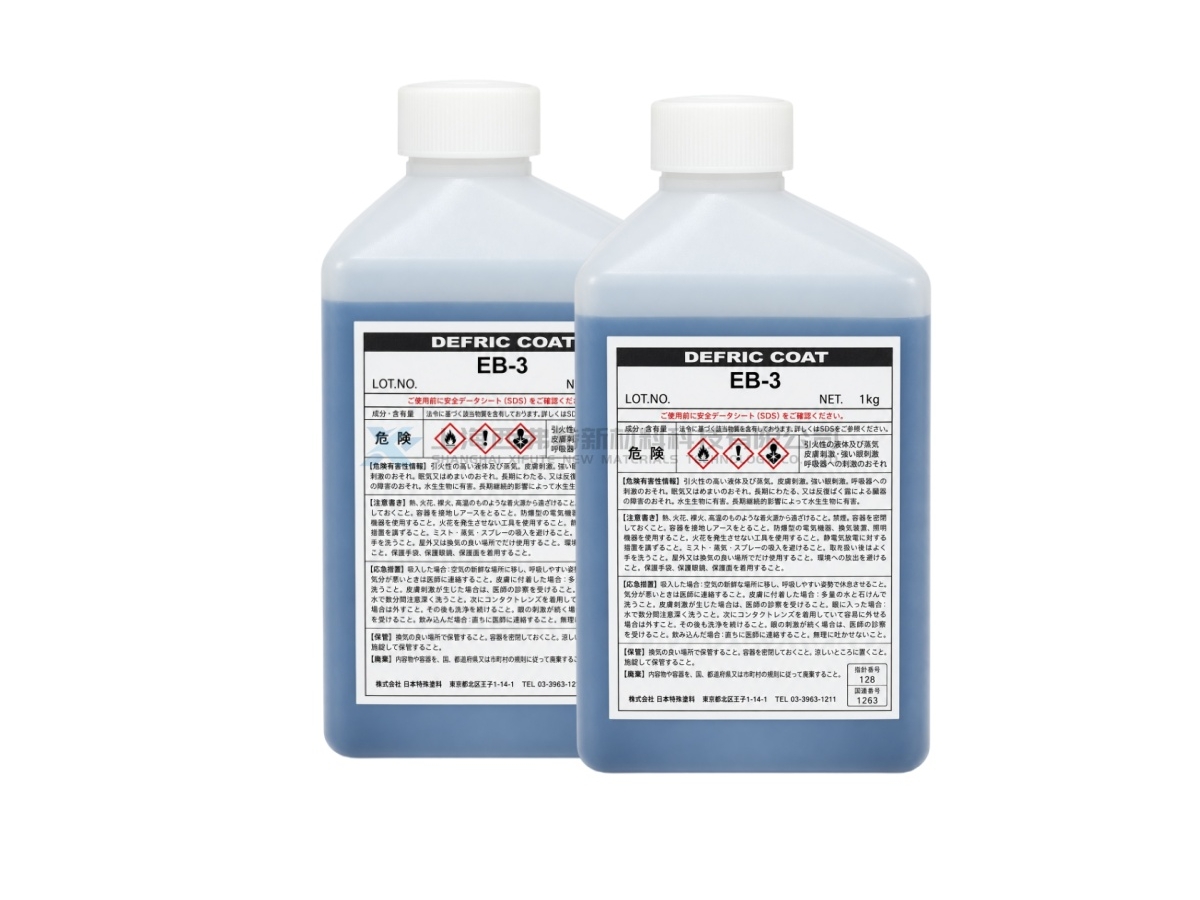

KAWAMURA DEFRIC COAT EB-3 Molybdenum Disulfide Solid Film Lubricating Coating
DEFRIC COAT EB-3 is a solid-film lubricant developed by Kawamura Research Institute. It is formulated mainly with epoxy resin and molybdenum disulfide (MoS₂) and forms a strong, low-friction lubricating film on metal surfaces. The coating helps reduce direct metal-to-metal contact, friction, wear, sticking and seizure. Compared with conventional oil or grease lubrication, it is particularly suitable for parts where liquid lubricants are difficult to retain or where frequent re-lubrication is undesirable. EB-3 can be applied by spraying, dipping, tumbling or brushing. Under the manufacturer's reference test conditions using phosphate-treated SPCC with an approximately 13 μm coating, the typical coefficient of friction is about 0.06, together with good load-carrying, adhesion, corrosion-resistance and solvent-resistance performance.
Product Details
Product Features
Low-Friction Solid Lubrication: Molybdenum disulfide provides a low-friction solid lubricating film, with a typical coefficient of friction of approximately 0.06.
Good Load-Carrying Capacity: Typical FALEX load-carrying performance is listed at 2300 lbs, supporting use in highly loaded sliding and assembly components.
Strong Coating Film: The epoxy-resin-based film provides a typical pencil hardness of 4H for good surface durability.
Good Adhesion: Cross-cut adhesion performance is listed as 100/100 under the specified test conditions.
Flexible Application Methods: Can be applied by spraying, dipping, tumbling or brushing to accommodate different component shapes and manufacturing processes.
Good Corrosion Resistance: Typical corrosion resistance exceeds 500 hours under the specified test method, helping protect coated metal surfaces.
Product Applications
Aircraft Fasteners: Suitable for aircraft bolts and nuts requiring solid lubrication and anti-seizure performance.
Automotive Components: Suitable for automotive mechanical parts and sliding components requiring a durable low-friction coating.
Precision Mechanical Parts: Suitable for camera mechanical components and other precision moving mechanisms.
Elevator Control Components: Can be used on sliding and contact parts in elevator control mechanisms.
Solenoid Plungers: Suitable for reciprocating solenoid plungers and similar metal sliding components requiring reduced friction and seizure resistance.
| Item | DEFRIC COAT EB-3 |
|---|---|
| Product Type | Solid Film Lubricant / Lubricating Coating |
| Brand | KAWAMURA |
| Model | DEFRIC COAT EB-3 |
| Main Components | Epoxy Resin, Molybdenum Disulfide (MoS₂) |
| Colour | Gray-Black |
| Coefficient of Friction | 0.06 typical |
| Friction Life | 1000 lbs, 60 min (FALEX) |
| Load-Carrying Capacity | 2300 lbs (260 kg/mm²), FALEX |
| Pencil Hardness | 4H |
| Cross-Cut Adhesion | 100/100 |
| Bend Test | Pass, 3 mm |
| Corrosion Resistance | ＞500 h |
| Solvent Resistance | 100/100 after 24 h toluene immersion |
