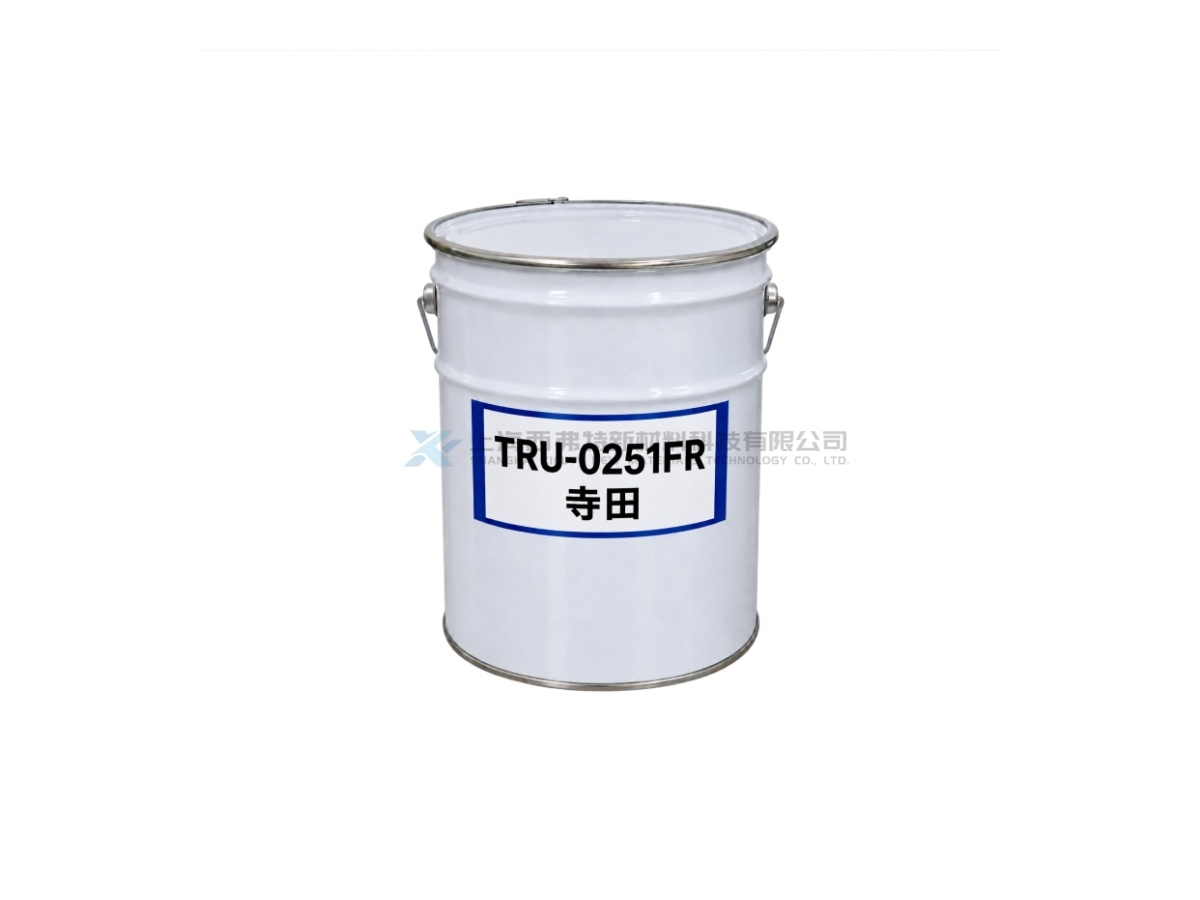

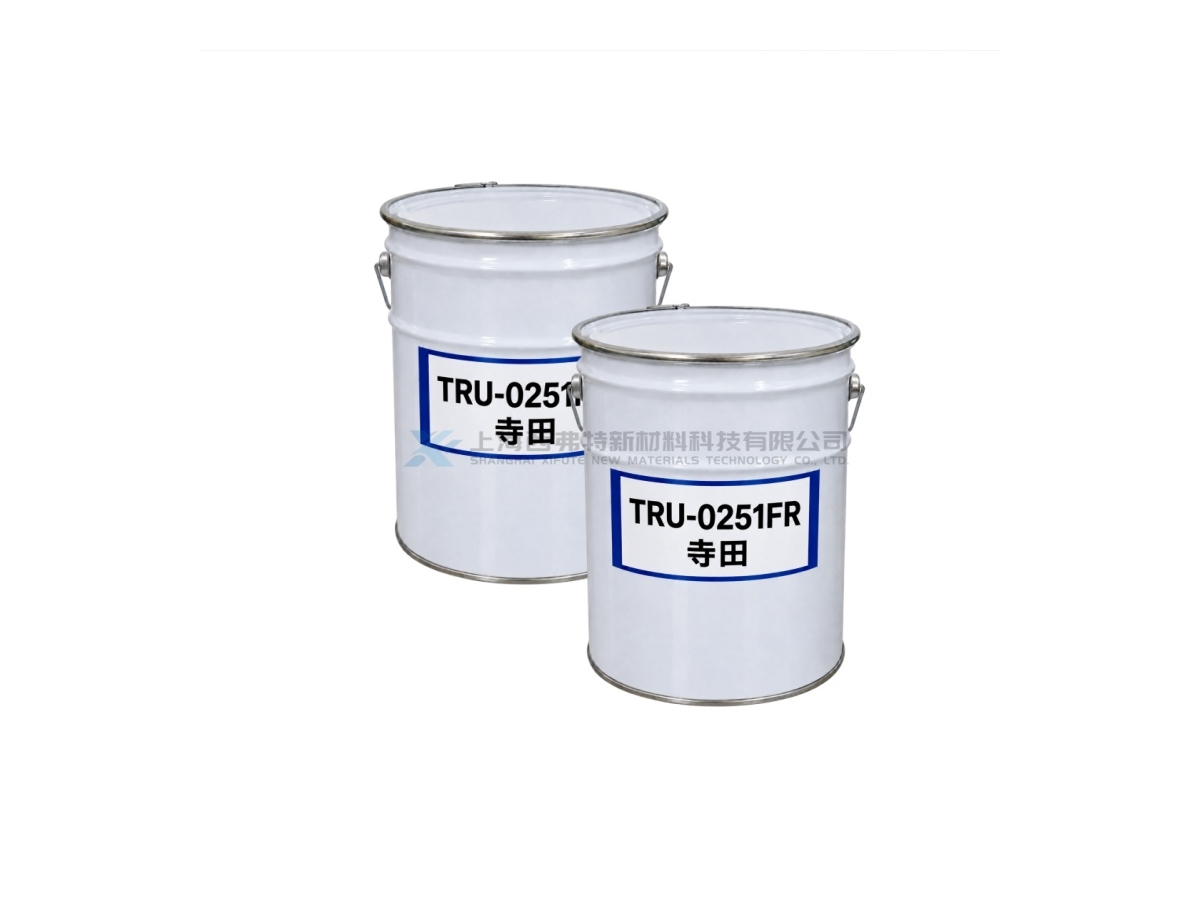

TERADA TERADITE TRU-0251FR High-Tg Flame-Retardant UV Curable Functional Resin
TERADITE TRU-0251FR is a UV-curable functional resin developed by Terada Co., Ltd. It belongs to the TERADITE UV Curable Resin series, which is designed for adhesive and coating applications and emphasizes rapid UV curing, good workability, heat resistance and moisture resistance. TRU-0251FR is characterized by High Tg / Flame Retardant performance. At 25°C, its viscosity is approximately 1,300 mPa·s, providing good flow and coating behavior. After curing, the material has a Shore D hardness of approximately 85, a Tg of approximately 91°C, and a CTE of approximately 98 ppm/K. The catalog lists TRU-0251FR as a flame-retardant UV-curable grade with a recommended curing condition of 1,500 mJ/cm² using a UV metal-halide lamp. LED curing is not supported for this grade.
Product Details
Product Features
Flame Retardant: Specifically positioned as a flame-retardant UV-curable resin
Higher Tg: Tg of approximately 91°C
Low Viscosity: Approximately 1,300 mPa·s at 25°C for good flow and coating performance
Fast UV Curing: UV-curing process helps shorten production cycle time
High Hardness: Shore D hardness of approximately 85 after curing
Adhesive & Coating Use: Designed for both bonding and coating applications
Product Applications
Electronic Components: Bonding, fixing and protective coating of electronic parts
Electrical Assemblies: Surface protection of electrical modules and related components
Precision Components: Suitable for parts requiring rapid curing and a hard cured layer
Flame-Retardant Protection: Used where flame-retardant performance is required
Functional Coating: Protective coating requiring a balance of heat resistance and flame retardancy
Industrial Electronics: Bonding and protection of controllers, modules and industrial electronic devices
| Item | TERADITE TRU-0251FR |
|---|---|
| Product Type | UV Curable Functional Resin |
| Series | UV Curable Resin |
| Main Application | Adhesive / Coating |
| Key Characteristics | High Tg / Flame Retardant |
| Viscosity at 25°C | 1,300 mPa·s |
| Hardness | Shore D 85 |
| Glass Transition Temperature | 91°C |
| CTE (α1) | 98 ppm/K |
| Shear Bond Strength (AL/AL) | Not Listed |
| Shear Strength after 85°C/85%RH, 1000 h | Not Listed |
| LED Curing | Not Supported |
| Recommended Curing Condition | UV Metal Halide Lamp, 1,500 mJ/cm² |
