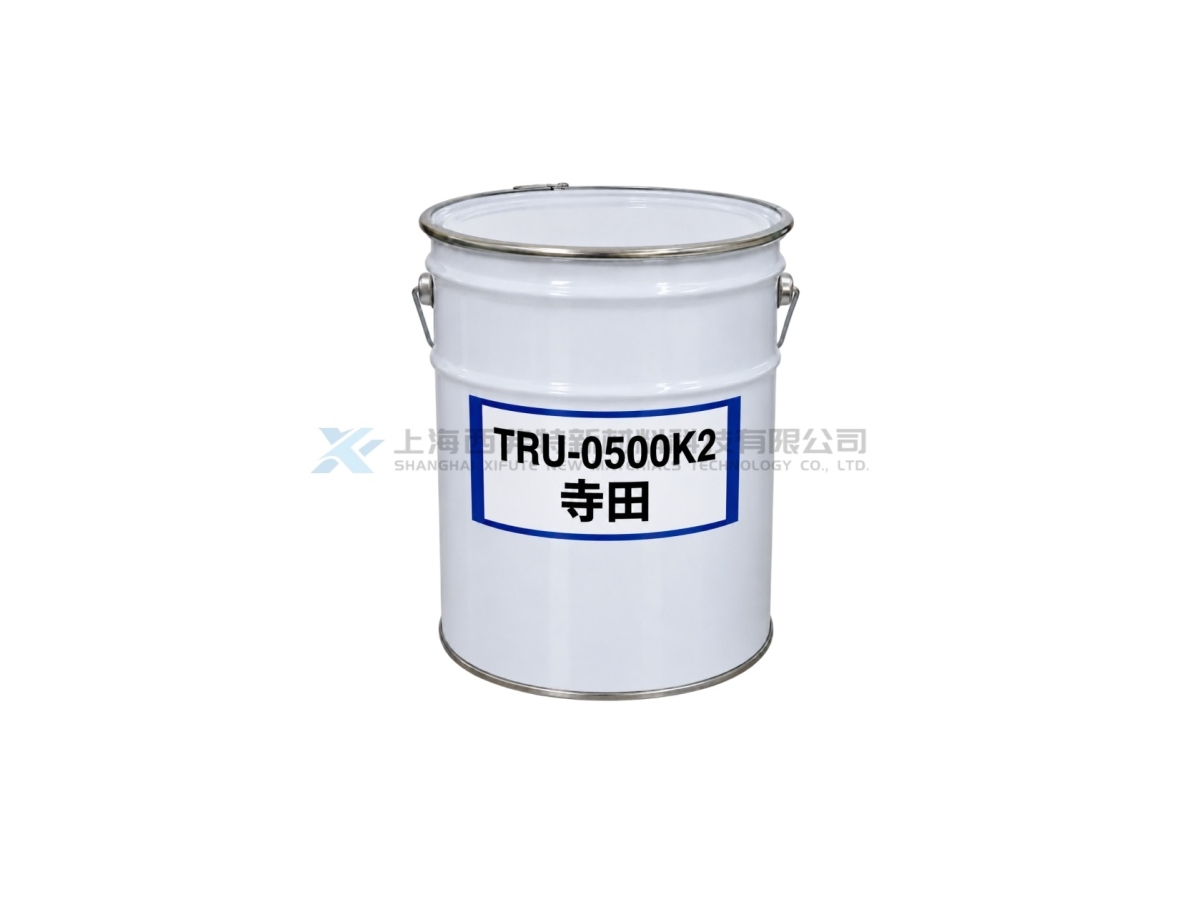

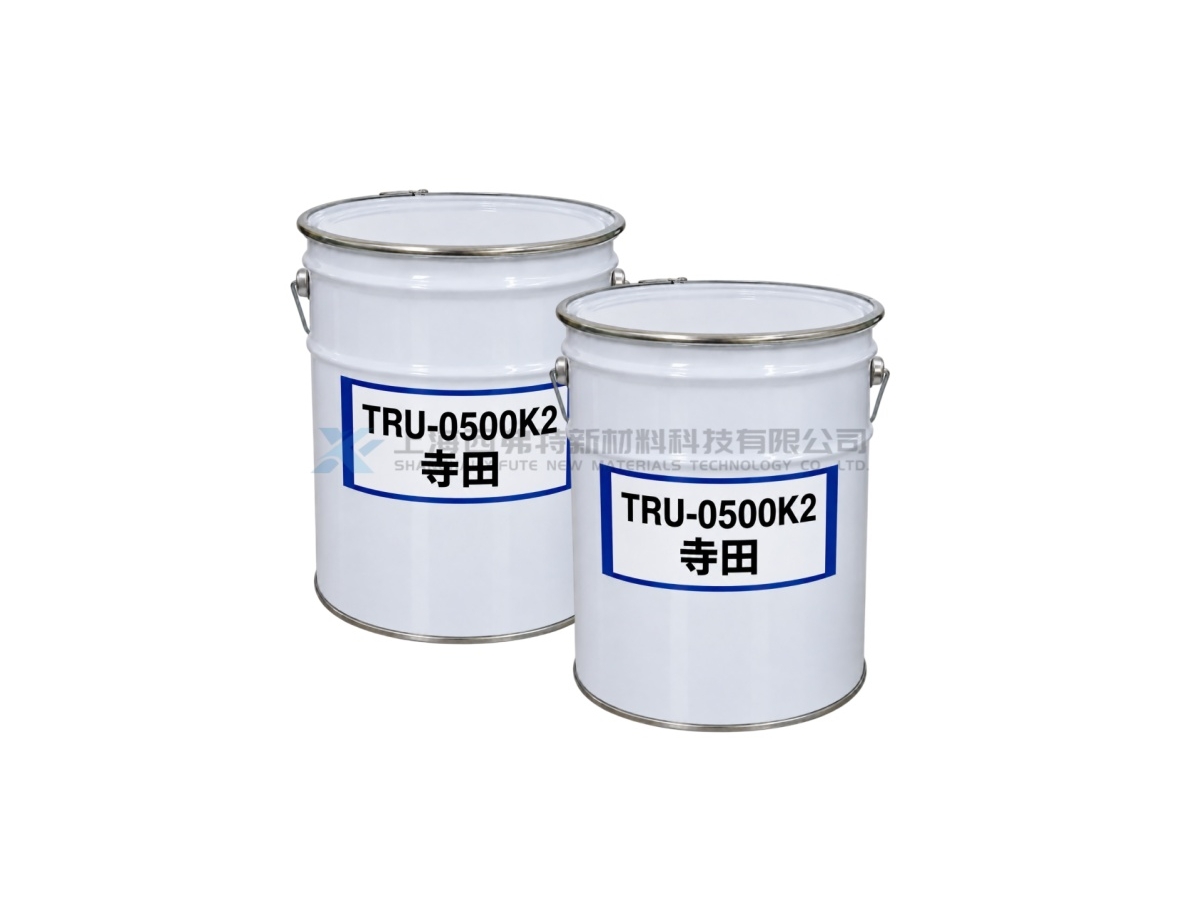

TERADA TERADITE TRU-0500K2 UV-LED Curable Conformal Coating Resin
TERADITE TRU-0500K2 is a special UV-curable functional resin developed by Terada Co., Ltd. It belongs to the TERADITE Special UV Curable Resin series, which is designed for adhesive and coating applications and supports UV-LED curing. TRU-0500K2 is specifically positioned as a Conformal Coating grade for protective coating of electronic and electrical assemblies. At 25°C, its viscosity is approximately 550 mPa·s, providing good flow and spreading behavior for thin, uniform coating applications. After curing, the material has a hardness of approximately Shore D 58, a Tg of approximately 10°C, and a CTE of approximately 100 ppm/K. It supports UV-LED curing, with a recommended curing energy of 1,500 mJ/cm². The manufacturer’s cross-cut adhesion results are 25/25 on both SUS and PC substrates under the stated test conditions.
Product Details
Product Features
Conformal Coating: Specifically designed for protective coating of electronic assemblies
Low Viscosity: Approximately 550 mPa·s at 25°C for good flow and thin-film application
UV-LED Curable: Compatible with UV-LED curing systems for rapid processing
Good Adhesion: Cross-cut test result of 25/25 on both SUS and PC
Moderate Hardness: Shore D hardness of approximately 58 after curing
Efficient Processing: UV curing helps reduce coating and curing cycle time
Product Applications
PCB Assemblies: Protective conformal coating of printed circuit boards
Electronic Components: Surface protection of electronic parts, solder joints and small assemblies
Electrical Modules: Insulating and protective coating of electrical assemblies
Automotive Electronics: Protection of sensors, control modules and automotive electronic components
Precision Equipment: Localized or overall protective coating of precision electronic parts
Metal / Plastic Substrates: Functional coating on SUS, PC and related substrate materials
| Item | TERADITE TRU-0500K2 |
|---|---|
| Product Type | Special UV Curable Resin |
| Series | Special UV Curable Resin |
| Main Application | Conformal Coating |
| Viscosity at 25°C | 550 mPa·s |
| Hardness | Shore D 58 |
| Glass Transition Temperature | 10°C |
| CTE (α1) | 100 ppm/K |
| UV Energy Reaction Rate | 290 mJ/mg |
| Cross-Cut Test – SUS | 25/25 |
| Cross-Cut Test – PC | 25/25 |
| LED Curing | Supported |
| Recommended Curing Condition | UV 1,500 mJ/cm² |
