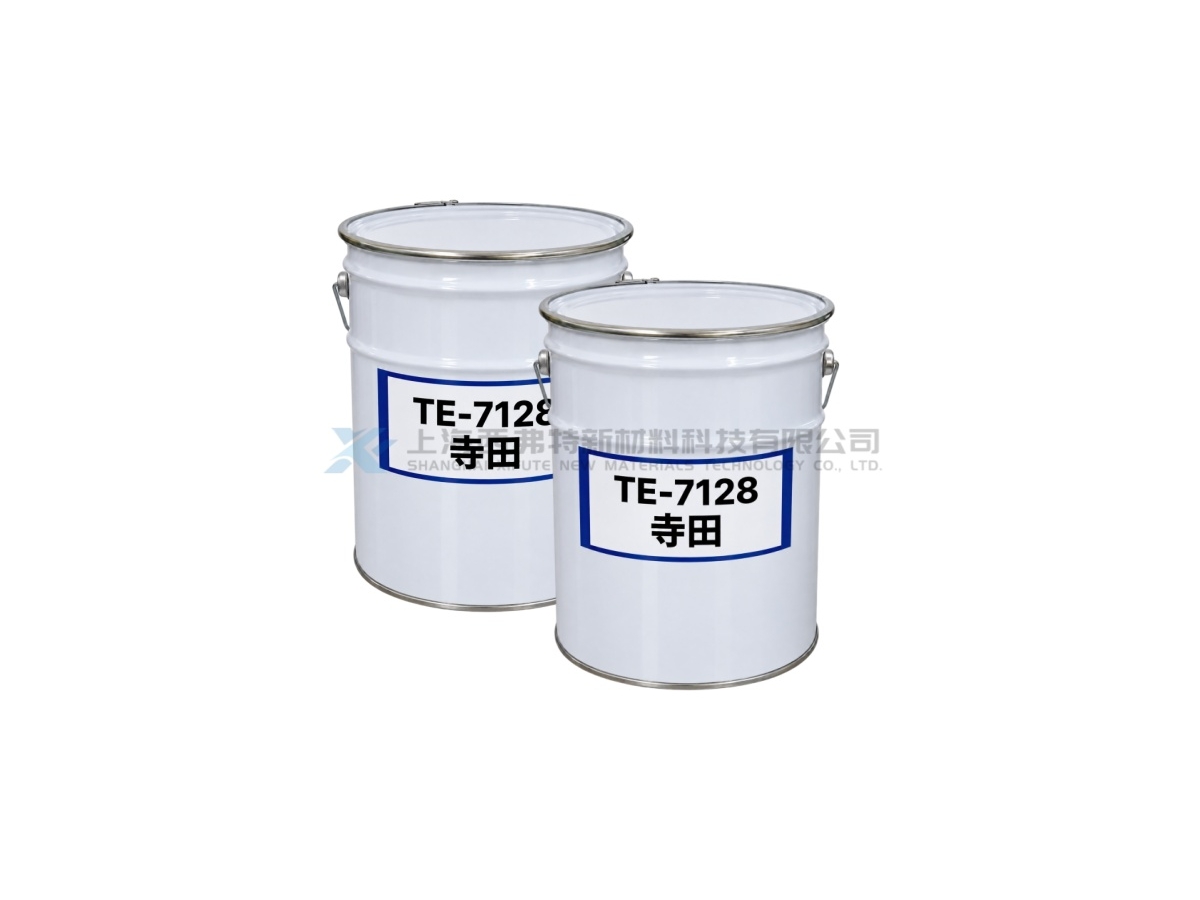

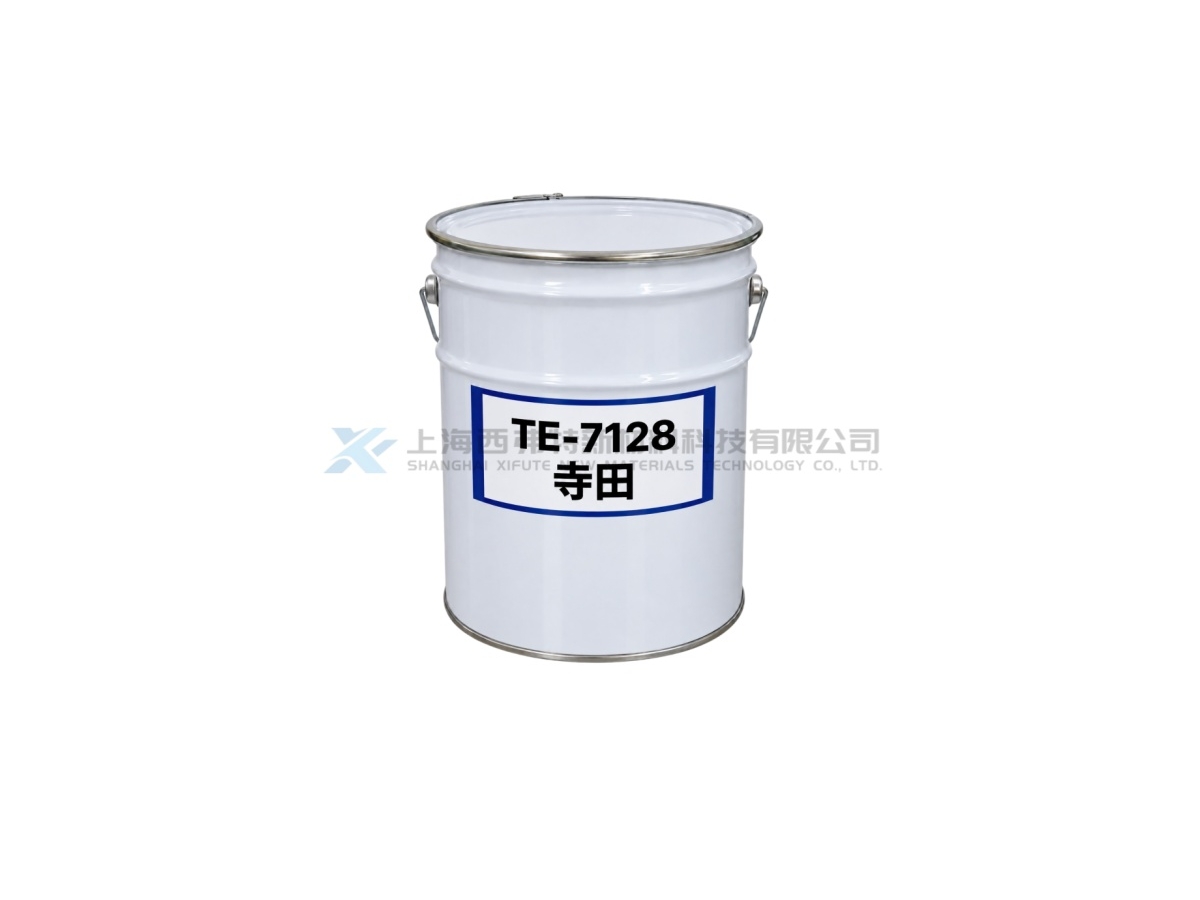

TERADA TERADITE TE-7128 Two-Component Flame-Retardant Epoxy Resin for Electronic Insulation & Protection
Product Introduction TERADITE TE-7128 is a two-component functional epoxy resin developed by Terada Co., Ltd. It belongs to the TERADITE Functional Resin series and is primarily designed for the insulation and protection of electronic components. TE-7128 uses a simple 100:100 resin-to-hardener mixing ratio. At 25°C, the resin viscosity is approximately 50,000 mPa·s, the hardener viscosity is approximately 8,000 mPa·s, and the mixed viscosity is approximately 20,000 mPa·s. After curing, the material provides a Shore D hardness of approximately 92, a glass transition temperature of approximately 155°C, and a coefficient of thermal expansion of approximately 25 ppm/K. It also provides flame-retardant performance equivalent to UL94 V-0 at 1 mm thickness, making it suitable for demanding electronic protection applications.
Product Details
Product Features
Flame Retardant: Equivalent to UL94 V-0 at 1 mm thickness
High Heat Resistance: Tg of approximately 155°C
High Hardness: Shore D hardness of approximately 92 after curing
Low Thermal Expansion: CTE of approximately 25 ppm/K for improved dimensional stability
Two-Component System: Simple 100:100 resin-to-hardener mixing ratio
Electrical Protection: Specifically designed for insulation and protection of electronic components
Product Applications
Electronic Components: Insulation, encapsulation and protection of electronic parts
Electrical Assemblies: Protection of electrical components and modules
Automotive Electronics: Suitable for sensors, electrical modules and automotive electronic parts
Module Encapsulation: Protection of modules requiring heat resistance and flame retardancy
Structural Protection: Suitable for components requiring high hardness and dimensional stability
Industrial Electronics: Protection of controllers, sensors and industrial electronic assemblies
| Item | TERADITE TE-7128 |
|---|---|
| Product Type | Two-Component Functional Epoxy Resin |
| Main Application | Insulation and Protection of Electronic Components |
| Resin Viscosity at 25°C | 50,000 mPa·s |
| Hardener Viscosity at 25°C | 8,000 mPa·s |
| Mixed Viscosity at 25°C | 20,000 mPa·s |
| Specific Gravity at 25°C | 2.05 |
| Hardness | Shore D 92 |
| Glass Transition Temperature | 155°C |
| CTE (α1) | 25 ppm/K |
| Shear Bond Strength | 11 MPa |
| Shear Test Substrate | SUS / SUS |
| Flame Retardancy | UL94 V-0 Equivalent at 1 mm |
| Mix Ratio (Resin / Hardener) | 100 / 100 |
| Recommended Curing Condition | 120°C × 1 h + 150°C × 1 h |
