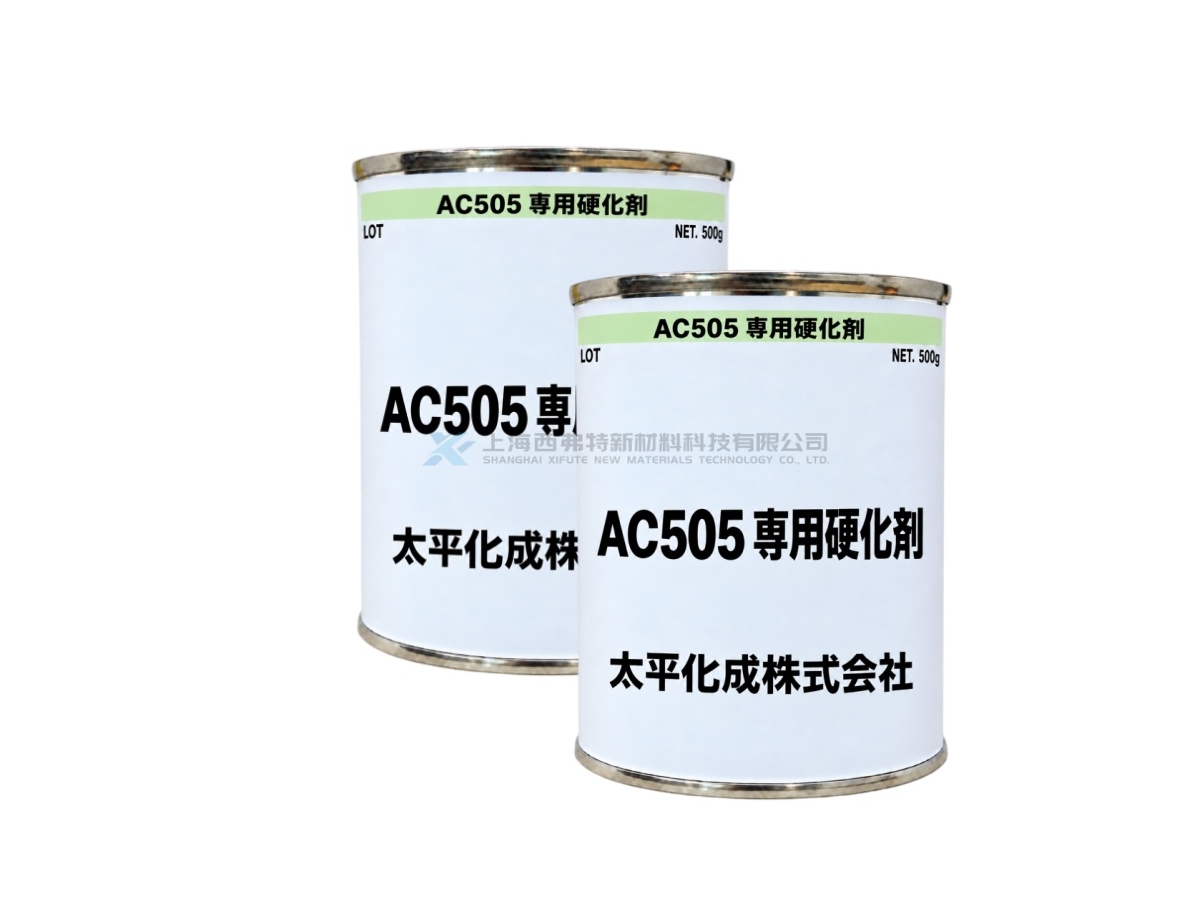

Taihei Kasei EIGHT SEAL AC-505 Dedicated Hardener
EIGHT SEAL AC-505 Dedicated Hardener is a curing component developed by Taihei Kasei Co., Ltd. specifically for the AC-505 pre-applied sealing system. It is a mixture containing 15–25% crosslinking agent, together with xylene, ethanol and methanol as solvent components. The hardener is not intended to be used as a stand-alone sealant. It is mixed with the AC-505 main agent to promote crosslinking and help form a stable cured sealing film. The recommended mixing ratio is 100 parts main agent to 10 parts hardener by weight, followed by coating, drying and heat curing. The product is supplied as a colorless liquid with an organic-solvent odor and has a flash point of 11.5°C. Appropriate ventilation and strict control of ignition sources are therefore required during handling.
Product Details
Product Features
Dedicated System: Specifically formulated for EIGHT SEAL AC-505
Crosslinking Function: Contains a crosslinking agent to promote curing of the AC-505 coating
Defined Mixing Ratio: Used at a 100 : 10 main-agent-to-hardener ratio by weight
Liquid Form: Colorless liquid for easy and uniform mixing
Process Compatible: Designed for AC-505 coating, drying and baking processes
Industrial Grade: Suitable for industrial pre-applied thread sealing operations
Product Applications
AC-505 Curing: Dedicated curing component for EIGHT SEAL AC-505
Thread Pre-Coating: Used in pre-applied sealing of plugs, fittings and threaded components
Hydraulic Components: Used with AC-505 for sealing hydraulic fittings and threaded joints
Pneumatic Components: Used with AC-505 for pneumatic fittings, valves and piping parts
Industrial Assembly: Suitable for high-volume threaded sealing processes
Automated Coating: Compatible with AC-505 automated coating and heat-curing operations
| Item | EIGHT SEAL AC-505 Dedicated Hardener |
|---|---|
| Product Type | Dedicated Hardener for AC-505 |
| Physical Form | Liquid |
| Color | Colorless |
| Odor | Organic Solvent Odor |
| Main Function | Crosslinking / Curing |
| Crosslinking Agent Content | 15–25% |
| Methanol Content | 1–10% |
| Ethanol Content | 5–15% |
| Xylene Content | 66.0% |
| Recommended Mixing Ratio | AC-505 Main Agent : Hardener = 100 : 10 by Weight |
| Flash Point | 11.5°C |
| Stability | Stable Under Normal Handling Conditions |
| UN Number | 1263 |
| Transport Class | Class 3 |
| Packing Group | II |
| Japan Fire Service Act | Class 4, Category 1 Petroleum, Hazard Rank II |
