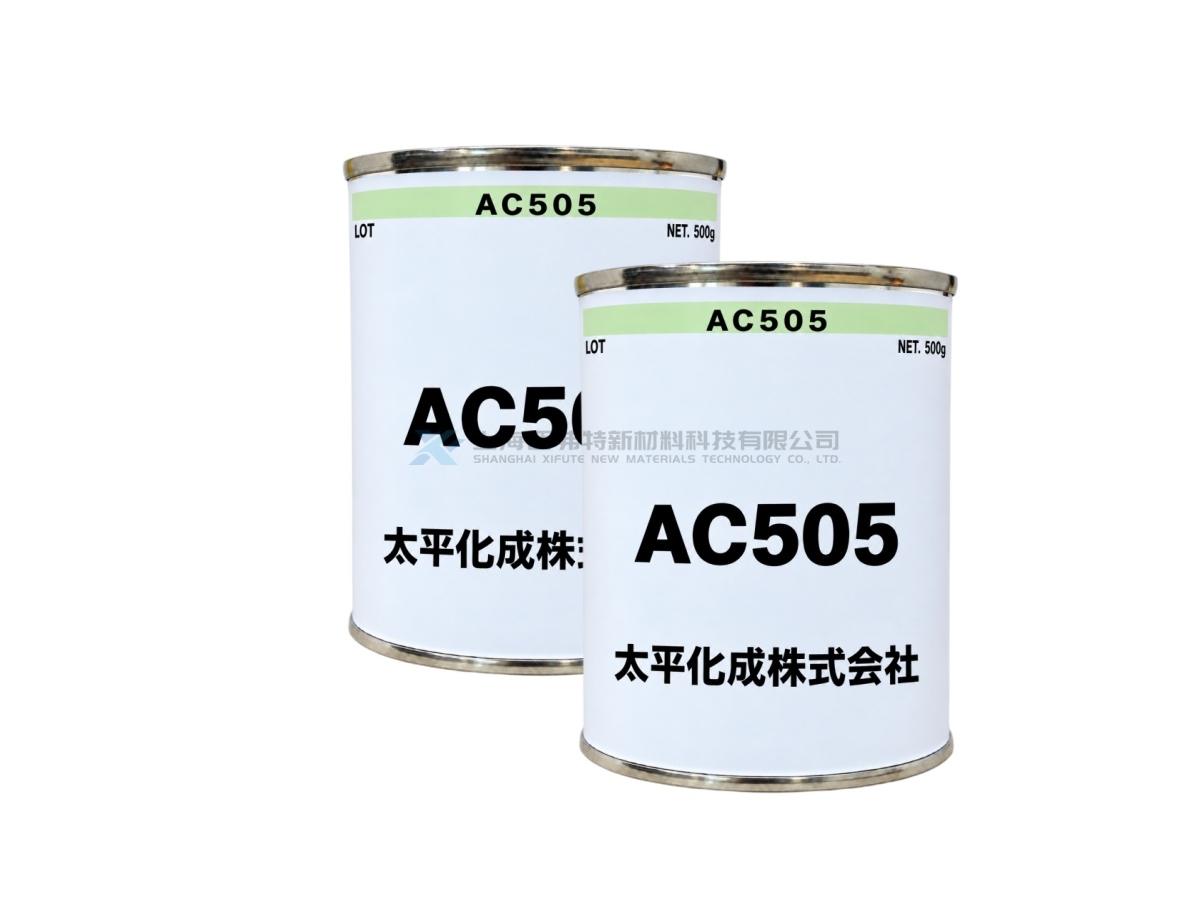

Taihei Kasei EIGHT SEAL AC-505
EIGHT SEAL AC-505 is a pre-applied thread sealant developed by Taihei Kasei Co., Ltd. Unlike conventional liquid sealants or PTFE sealing tape applied during assembly, AC-505 is coated and cured on threaded components in advance, allowing the parts to be installed directly at the assembly site. This helps reduce application time and minimizes variation caused by operator skill. AC-505 is based on a fluoropolymer crosslinking system. After heat curing, it forms a flexible and elastic sealing film that does not readily melt at elevated temperatures and retains elasticity at low temperatures. This makes it well suited for threaded joints exposed to temperature changes, pressure and mechanical displacement.
Product Details
Product Features
Pre-Applied Sealing: Applied to threaded components before assembly, eliminating the need for on-site liquid sealant or sealing tape
Heat & Pressure Resistance: Provides stable sealing performance under elevated temperature and high-pressure conditions
Chemical Resistance: Resistant to oils, organic solvents, acids, alkalis and various industrial fluids
Excellent Metal Adhesion: Adheres well to steel, brass, aluminum, stainless steel and copper
Flexible & Elastic Film: Maintains flexibility and elasticity over time and accommodates thread displacement
Reusable Sealing: Can be reused approximately 3–5 times under specified test conditions
Product Applications
Pneumatic Equipment: Thread sealing for pneumatic piping, valves, cylinders and fittings
Hydraulic Equipment: Sealing of hydraulic pipes, valves, plugs and high-pressure threaded connections
Automotive Industry: Pre-applied sealing for oil, air and transmission-related threaded components
Industrial Machinery: Used on plugs, threaded joints and fittings in general machinery
Piping Systems: Leak prevention for threaded joints carrying gases, oils and industrial fluids
Mass Production: Suitable for automated pre-coating of threaded components before final assembly
| Item | EIGHT SEAL AC-505 |
|---|---|
| Product Type | Pre-Applied Thread Sealant |
| Base System | Crosslinked Fluoropolymer |
| SDS Classification | Fluoropolymer Coating |
| Appearance | White Viscous Liquid |
| Specific Gravity at 25°C | 1.0 |
| Viscosity | 2,000 mPa·s |
| Solids Content | 45.0% |
| Main Agent : Hardener | 100 : 10 by Weight |
| Natural Drying | 2–3 Hours |
| Forced Drying | Approx. 30 min Natural Drying + 60°C × 30 min |
| Baking Condition | 130–160°C × 30 min |
| Main Properties | Heat, Pressure, Oil, Acid, Alkali and Solvent Resistance |
| Reusability | Approx. 3–5 Times* |
| Standard Package | 5.0 kg Main Agent + 0.5 kg Hardener |
| Fire Service Act Classification | Class 4, Category 1 Petroleum, Hazard Rank II |
