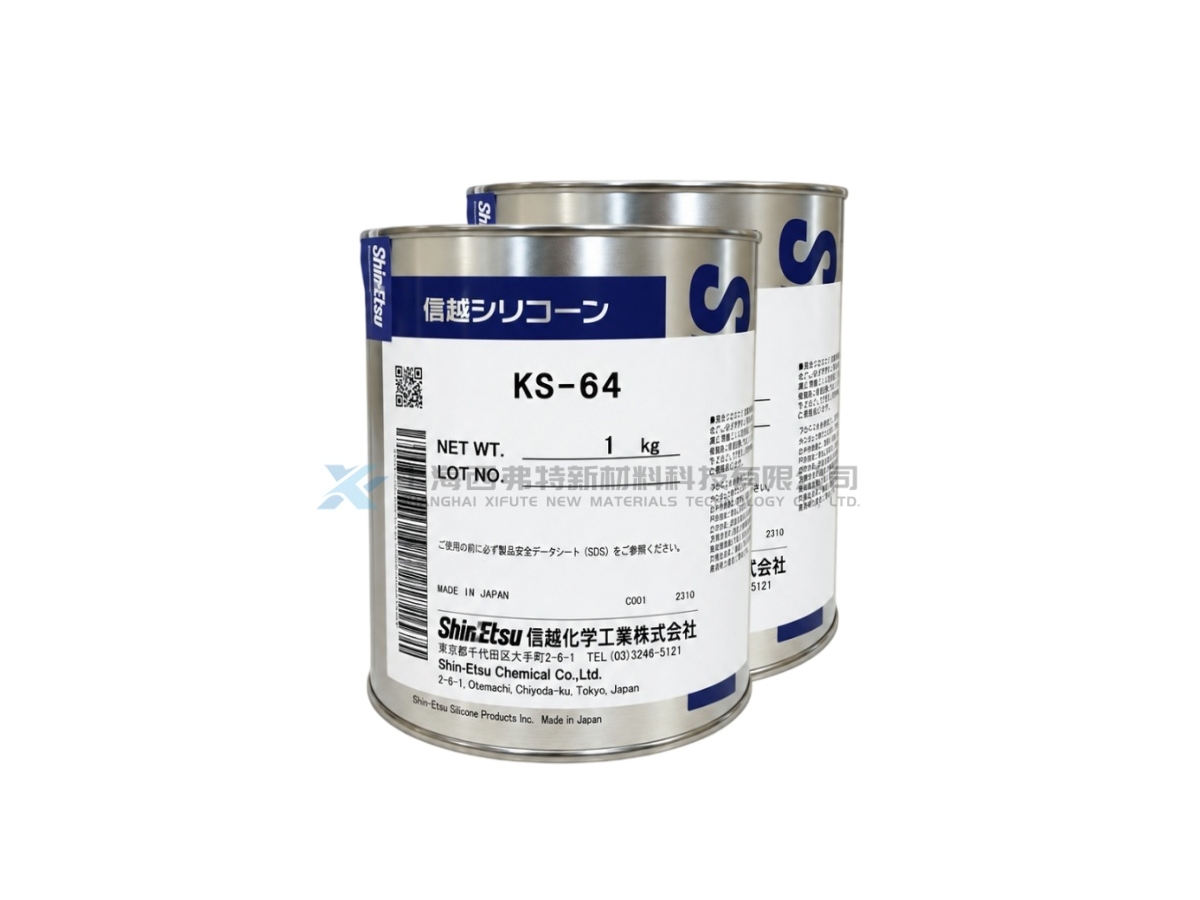

Shin-Etsu KS-64
Shin-Etsu KS-64 is a general-purpose silicone oil compound formulated with silicone oil and inorganic fillers. It is supplied as a white grease-like compound and is specifically designed for electrical insulation and sealing applications in electrical and electronic equipment. Shin-Etsu identifies KS-64 as a general-purpose grade with excellent electrical properties, water repellency and chemical stability.
Product Details
Product Features
Excellent Electrical Insulation: High volume resistivity and good dielectric breakdown performance provide effective electrical insulation.
Water and Moisture Resistance: The silicone-based formulation provides excellent water repellency and helps protect electrical components from humidity and moisture.
Wide Temperature Range: Suitable for use from approximately -50°C to +200°C.
Excellent Chemical Stability: The chemically stable silicone system maintains reliable performance under demanding operating conditions.
Good Sealing Performance: Its grease-like consistency helps fill small gaps and provides effective sealing around electrical components.
Non-Curing Type: Remains grease-like after application, allowing easy application, maintenance and disassembly.
Product Applications
Electrical Equipment: Electrical insulation and moisture sealing for terminals, electrical connections and insulating parts.
Electronics Industry: Protection of electrical connectors, electronic assemblies and connection areas against moisture and electrical leakage.
Power Equipment: Suitable for electrical connections, switches and other areas requiring insulation and moisture protection.
Instrumentation: Insulation and environmental protection of electrical connections inside instruments and control equipment.
Automotive Electronics: Can be used for moisture protection and insulation of suitable automotive electrical connectors and terminals; compatibility testing is recommended before use.
Industrial Equipment: Suitable for static locations requiring a combination of electrical insulation, water resistance, moisture protection and sealing.
| Item | Shin-Etsu KS-64 |
|---|---|
| Product Type | Electrical Insulating Silicone Grease |
| Appearance | White Grease |
| Specific Gravity (25℃) | 1.05 |
| Worked Penetration (25℃) | 246 |
| Oil Separation (200℃ × 24h) | 5.8% |
| Dielectric Breakdown Strength (0.1mm) | 4.0 kV |
| Volume Resistivity | 620 TΩ·m |
| Dielectric Constant (60Hz) | 2.80 |
| Dielectric Dissipation Factor (60Hz) | 2.3×10⁻⁴ |
| Thermal Conductivity | 0.19 W/m·K |
| Operating Temperature Range | -50℃ to +200℃ |
| Volatile Content (200℃ × 24h) | 0.1% |
| Low-Molecular-Weight Siloxanes ΣD₃-D₁₀ | ≤100 ppm |
