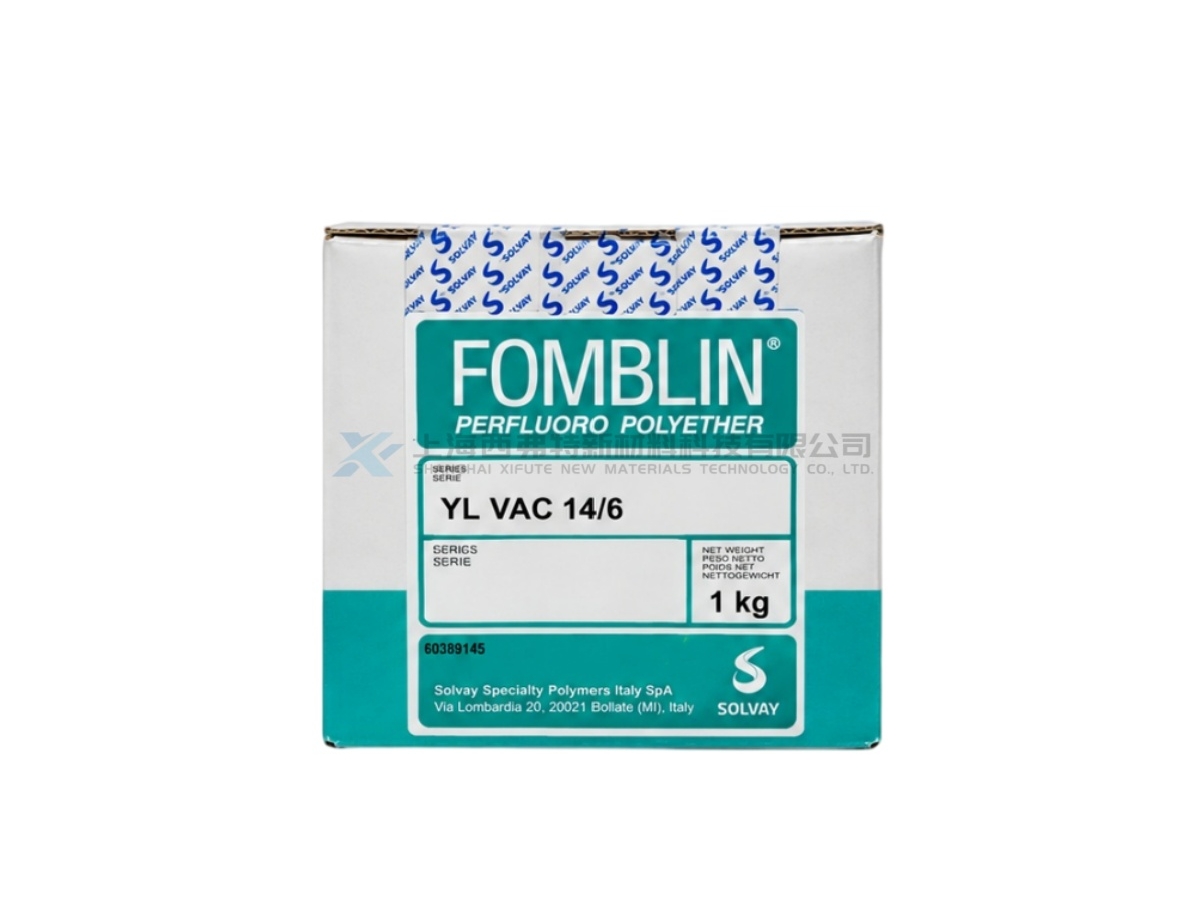

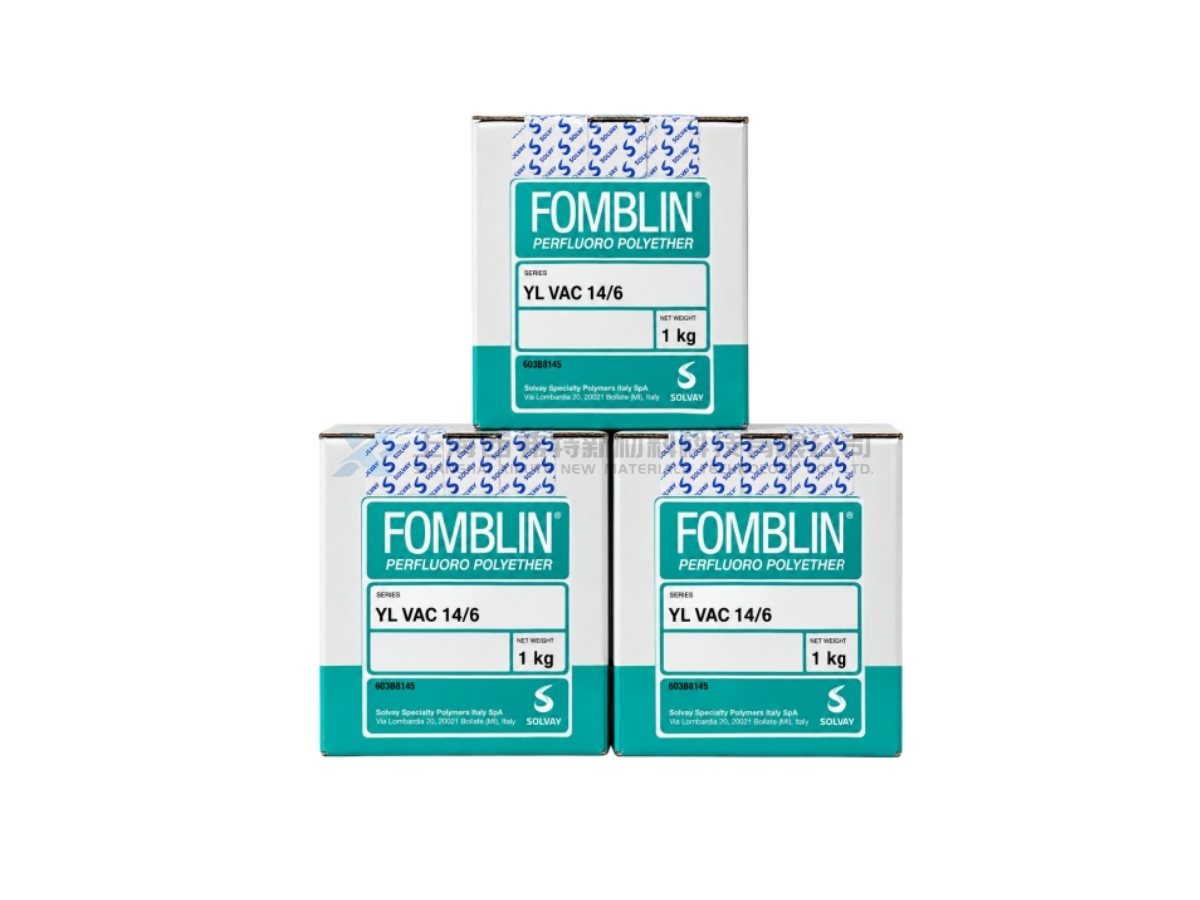

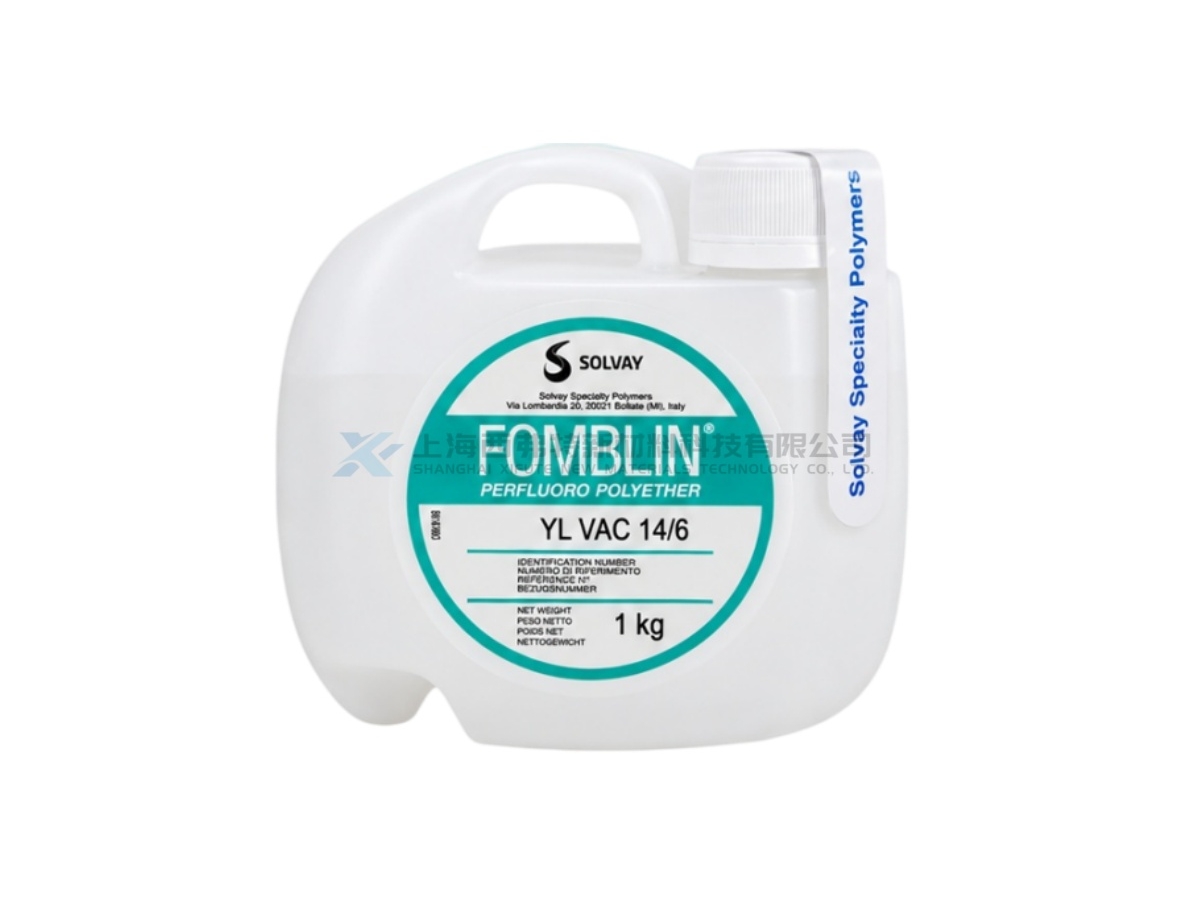

Fomblin® Y LVAC 14/6 PFPE Vacuum Pump Oil
Fomblin® Y LVAC 14/6 is a PFPE-based inert vacuum pump fluid designed for demanding vacuum applications. Fomblin® Y fluids are perfluorinated polyethers composed of carbon, fluorine and oxygen, giving them low vapor pressure, excellent chemical inertness, high thermal stability and no flash or fire point. Y LVAC 14/6 is specifically listed for sealing and lubrication in rotary vacuum pumps. It is also used in chemical and semiconductor vacuum processes where conventional hydrocarbon oils may not provide sufficient chemical resistance or cleanliness. The fluid offers good compatibility with metals, plastics and elastomers and good resistance to both aqueous and non-aqueous solvents. Its very low vapor pressure of approximately 1×10⁻⁷ torr at 25°C helps reduce oil backstreaming and supports cleaner vacuum operation.
Product Details
Product Features
Very Low Vapor Pressure:Typical vapor pressure is approximately 1×10⁻⁷ torr at 25°C, supporting high-vacuum cleanliness.
Excellent Chemical Inertness:PFPE chemistry provides strong resistance to many aggressive process media.
Nonflammable:Fomblin PFPE fluids have no flash or fire point.
High Thermal Stability:Suitable for vacuum equipment requiring stable lubrication over extended operating periods.
Good Material Compatibility:Compatible with many metals, plastics and elastomers used in vacuum systems.
Product Applications
Rotary Vacuum Pumps:Used as a sealing and lubricating fluid in rotary vacuum pumps.
Semiconductor Vacuum Systems:Suitable for chemically inert and low-contamination vacuum applications.
Chemical-Process Vacuum Equipment:For pumps exposed to reactive or corrosive process gases.
High-Cleanliness Vacuum Systems:Applicable where low backstreaming and low vapor contamination are important.
| Item | Fomblin® Y LVAC 14/6 |
|---|---|
| Product Type | PFPE Vacuum Pump Oil |
| Brand | Fomblin® |
| Model | Y LVAC 14/6 |
| Base Fluid | PFPE |
| Appearance | Colorless Liquid |
| Average Molecular Weight | Approx. 2500 amu |
| Density @ 20°C | 1.89 g/cm³ |
| Kinematic Viscosity @ 20°C | 148 cSt |
| Viscosity Index | 97 |
| Vapor Pressure @ 25°C | 1×10⁻⁷ torr |
| Vapor Pressure @ 100°C | 2×10⁻⁴ torr |
| Pour Point | -45°C |
| Heat of Vaporization @ 200°C | 8 cal/g |
| Surface Tension | 22 dyne/cm |
| Evaporation Loss, 149°C × 22 h | 2.6 wt% |
| Flash / Fire Point | None |
| Key Properties | Low Vapor Pressure / Chemical Inertness / Nonflammability / Thermal Stability |
| Main Application | Rotary Vacuum Pump Sealing & Lubrication |
