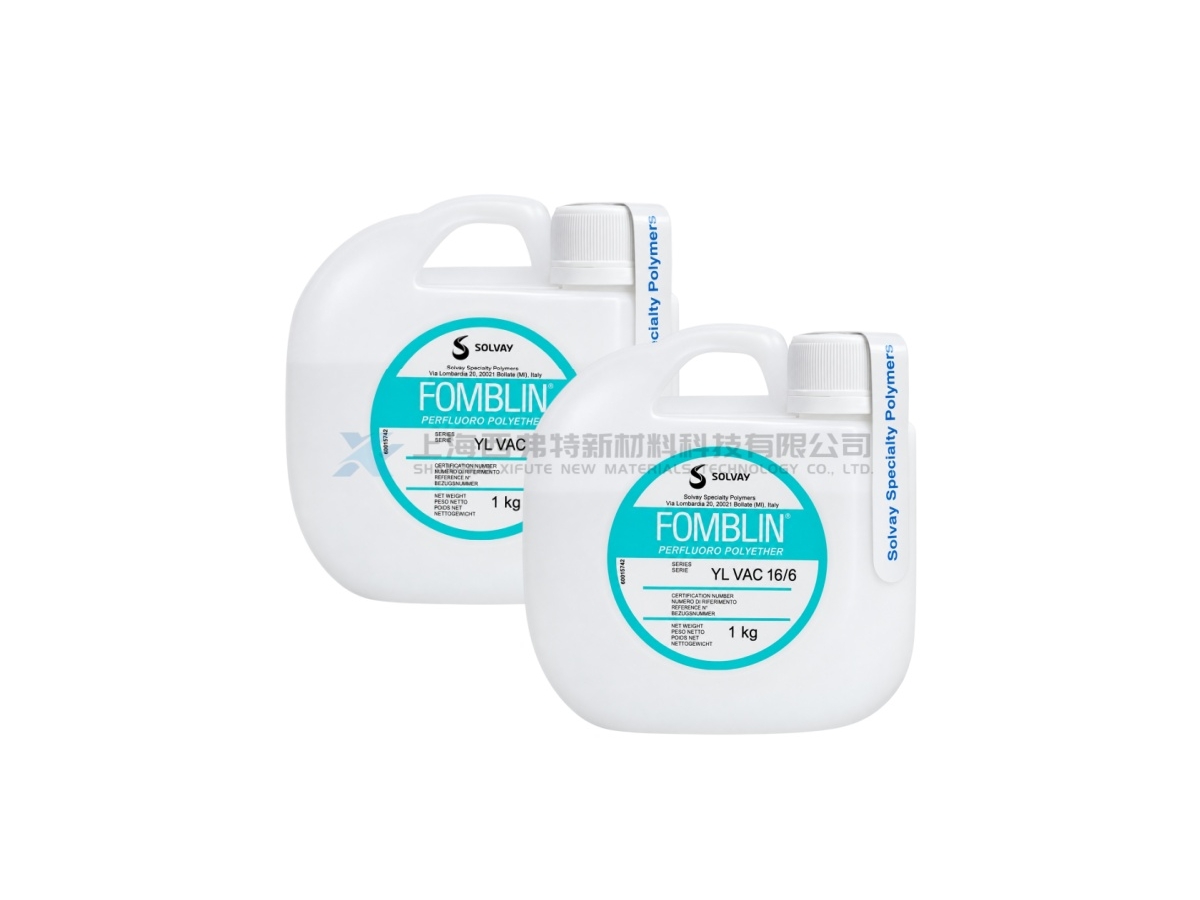

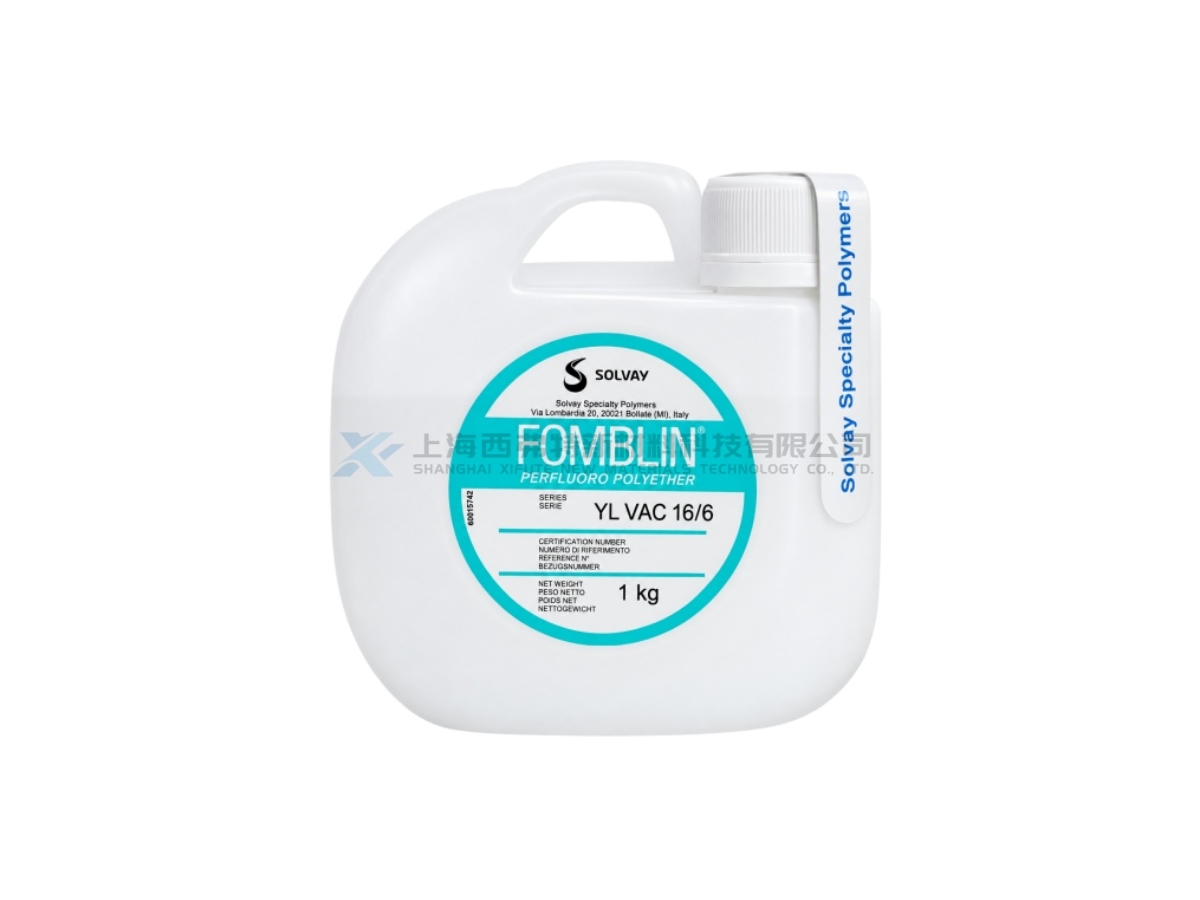

Fomblin® Y LVAC 16/6 PFPE Vacuum Pump Fluid | Chemically Inert, Non-Flammable Vacuum Lubricant
Fomblin® Y LVAC 16/6 is a perfluoropolyether (PFPE) vacuum lubricant in Syensqo’s Fomblin® Y LVAC family. Fomblin® Y PFPE fluids consist of fully fluorinated polyether structures containing carbon, fluorine and oxygen, providing low vapor pressure, chemical inertness, high thermal stability and good lubricating properties. The Y LVAC family was specifically developed for vacuum-pump service. A controlled viscosity and relatively narrow molecular-weight distribution provide extremely low vapor pressure, helping minimize fluid evaporation and backstreaming in vacuum environments. Syensqo identifies Y LVAC fluids for sealing and lubricating service in vacuum pumps, particularly in systems exposed to aggressive gases. Y LVAC 16/6 has a typical average molecular weight of approximately 2,700 amu, density of 1.89 g/cm³ at 20°C, kinematic viscosity of 168 cSt at 20°C, and vapor pressure of approximately 9×10⁻⁸ Torr at 25°C. Fomblin® PFPE fluids also have no flash or fire point and provide good compatibility with many metals, plastics and elastomers.
Product Details
Product Features
Extremely Low Vapor Pressure:Typical vapor pressure is approximately 9×10⁻⁸ Torr at 25°C, supporting clean and stable vacuum operation.
Excellent Chemical Inertness:Suitable for demanding vacuum environments involving aggressive or reactive process gases.
Non-Flammable:Fomblin® PFPE fluids have no flash or fire point, making them useful where flammability needs to be minimized.
High Thermal Stability:Maintains stable lubricant characteristics under demanding thermal conditions.
Good Material Compatibility:Offers excellent compatibility with many metals, plastics and elastomers, along with good resistance to aqueous and non-aqueous solvents.
Product Applications
Vacuum Pumps:For lubrication of vacuum-pump moving parts and internal mechanisms.
Vacuum Sealing Systems:Y LVAC fluids are designed for sealing and lubricating duties in vacuum systems.
Semiconductor Vacuum Equipment:Suitable for semiconductor vacuum processes where chemical inertness and low contamination are important; final grade selection should follow the pump manufacturer’s recommendation. PFPE vacuum fluids are used in semiconductor and chemical-pumping applications.
Aggressive-Gas Vacuum Systems:Particularly useful in vacuum systems exposed to aggressive or reactive gases.
| Item | Fomblin® Y LVAC 16/6 |
|---|---|
| Product Type | PFPE Vacuum Lubricating Fluid |
| Brand | Fomblin® / Syensqo |
| Model | Y LVAC 16/6 |
| Chemical Family | PFPE (Perfluoropolyether) |
| Physical Form | Liquid |
| Average Molecular Weight | 2,700 amu |
| Density @ 20°C | 1.89 g/cm³ |
| Kinematic Viscosity @ 20°C | 168 cSt |
| Viscosity Index | 110 |
| Vapor Pressure @ 25°C | 9×10⁻⁸ Torr |
| Vapor Pressure @ 100°C | 2×10⁻⁴ Torr |
| Pour Point | -45°C |
| Heat of Vaporization @ 200°C | 8 cal/g |
| Surface Tension @ 20°C | 22 dyne/cm |
| Evaporation Loss | 3.9 wt% (149°C × 22 h) |
| Flash / Fire Point | None |
| Key Properties | Low Vapor Pressure / Chemical Inertness / Thermal Stability / Non-Flammability / Lubricity |
| Main Applications | Vacuum Pump Lubrication / Vacuum Sealing / Reactive-Gas Vacuum Systems |
