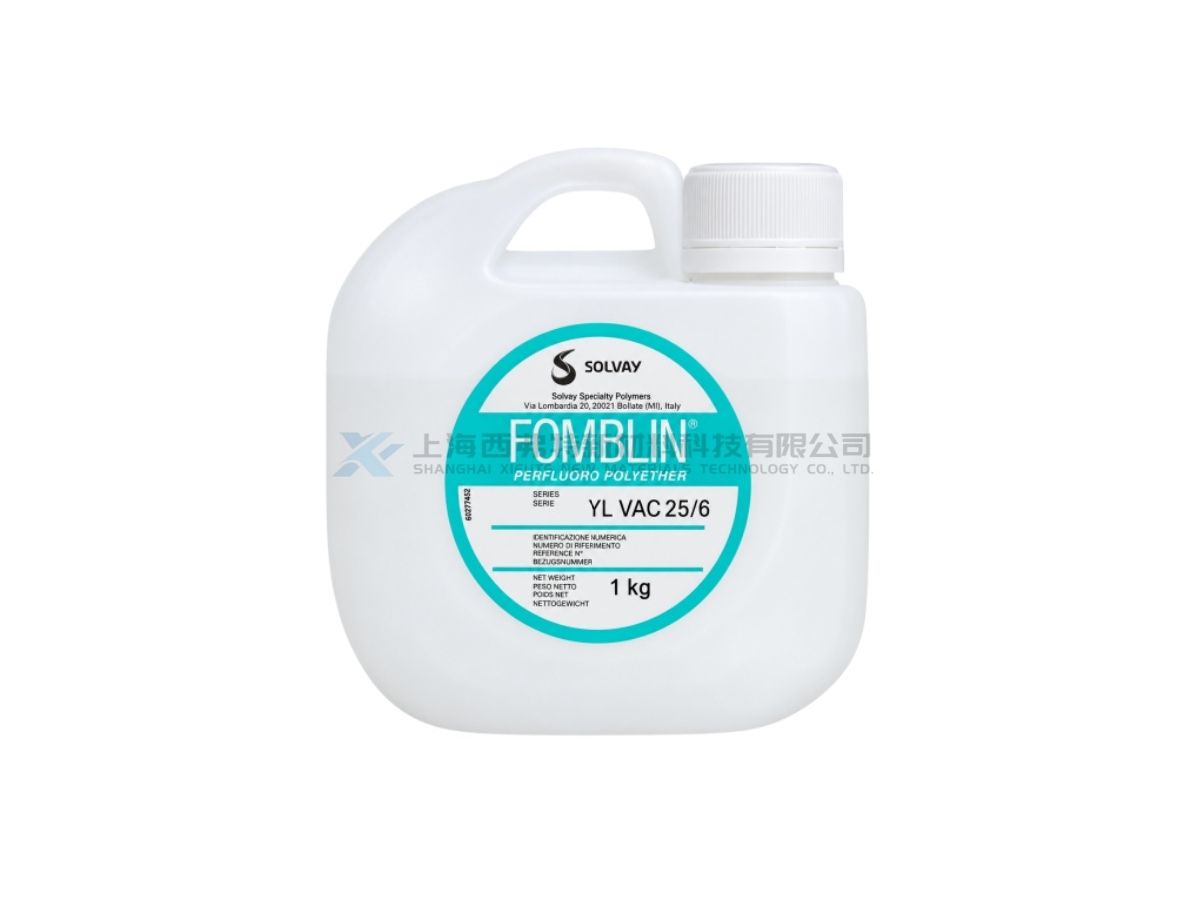

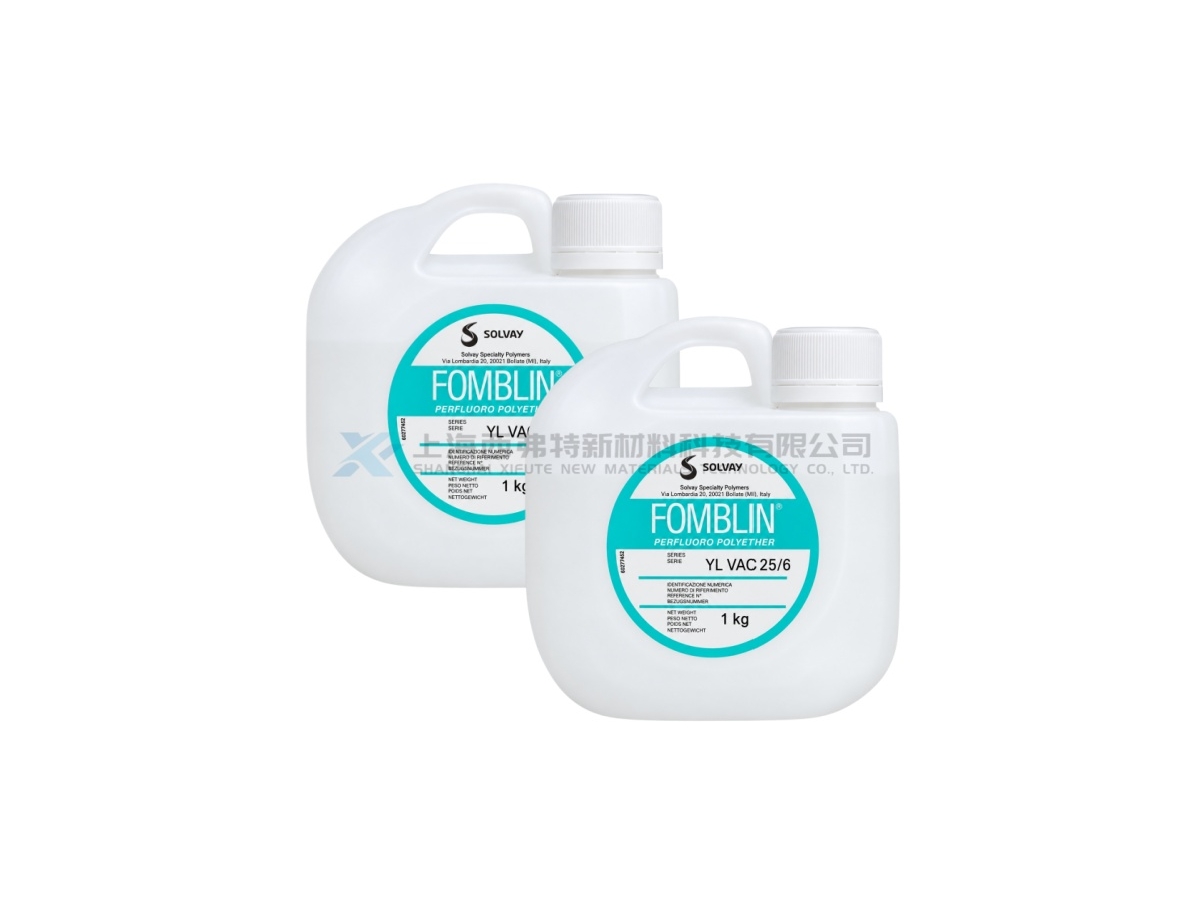

Fomblin® Y LVAC 25/6 PFPE Vacuum Pump Fluid
Fomblin® Y LVAC 25/6 is a perfluoropolyether (PFPE) inert vacuum pump fluid in the Syensqo Fomblin® Y LVAC family. The Y LVAC range was specifically developed to combine controlled viscosity and a narrow molecular-weight distribution with extremely low vapor pressure for demanding vacuum applications. Fomblin® PFPE fluids consist of fluorinated polymer chains containing carbon, fluorine and oxygen. They provide very low vapor pressure, chemical inertness, high thermal stability, non-flammability, good lubricity and strong dielectric properties, together with broad compatibility with metals, plastics and elastomers. Y LVAC 25/6 is one of the higher-viscosity grades in the family, with a typical kinematic viscosity of 276 cSt at 20°C and a vapor pressure of approximately 6×10⁻⁸ torr at 25°C, making it particularly suitable where sealing performance and low backstreaming are important.
Product Details
Product Features
Extremely Low Vapor Pressure:A vapor pressure of approximately 6×10⁻⁸ torr at 25°C helps minimize lubricant backstreaming and vacuum contamination.
Excellent Chemical Inertness:PFPE chemistry provides strong resistance to aggressive and reactive process environments.
Non-Flammable:Fomblin® PFPE fluids have no flash point or fire point under standard test conditions.
High Thermal Stability:Designed to maintain stable performance under elevated-temperature vacuum service.
Good Material Compatibility:Compatible with many metals, plastics and elastomers used in vacuum systems.
Product Applications
Rotary Vacuum Pumps:Used as a sealing and lubricating fluid, as specifically recommended by the manufacturer.
Roots Pumps:Recommended for lubrication of Roots-type vacuum pumps.
Semiconductor Vacuum Processes:Suitable for processes such as LPCVD, plasma etching and reactive-ion etching where low contamination and chemical stability are important.
Chemical Vacuum Systems:Suitable for vacuum pumps exposed to corrosive, oxidizing or reactive gases.
High-Cleanliness Vacuum Equipment:Useful where hydrocarbon contamination and lubricant backstreaming need to be minimized.
| Item | Fomblin® Y LVAC 25/6 |
|---|---|
| Product Type | PFPE Vacuum Pump Fluid |
| Brand | Fomblin® / Syensqo |
| Model | Y LVAC 25/6 |
| Chemical Type | PFPE / Perfluoropolyether |
| Physical Form | Liquid |
| Average Molecular Weight | Approx. 3,300 amu |
| Density @ 20°C | 1.90 g/cm³ |
| Kinematic Viscosity @ 20°C | 276 cSt |
| Viscosity Index | 113 |
| Vapor Pressure @ 25°C | 6×10⁻⁸ torr |
| Vapor Pressure @ 100°C | 6×10⁻⁵ torr |
| Pour Point | -35°C |
| Heat of Vaporization @ 200°C | 7 cal/g |
| Surface Tension @ 20°C | 22 dyne/cm |
| Evaporation Loss | 0.6 wt.% (149°C × 22 h) |
| Flash Point | None |
| Fire Point | None |
| Main Applications | Rotary Pump Sealing & Lubrication / Roots Pump Lubrication |
