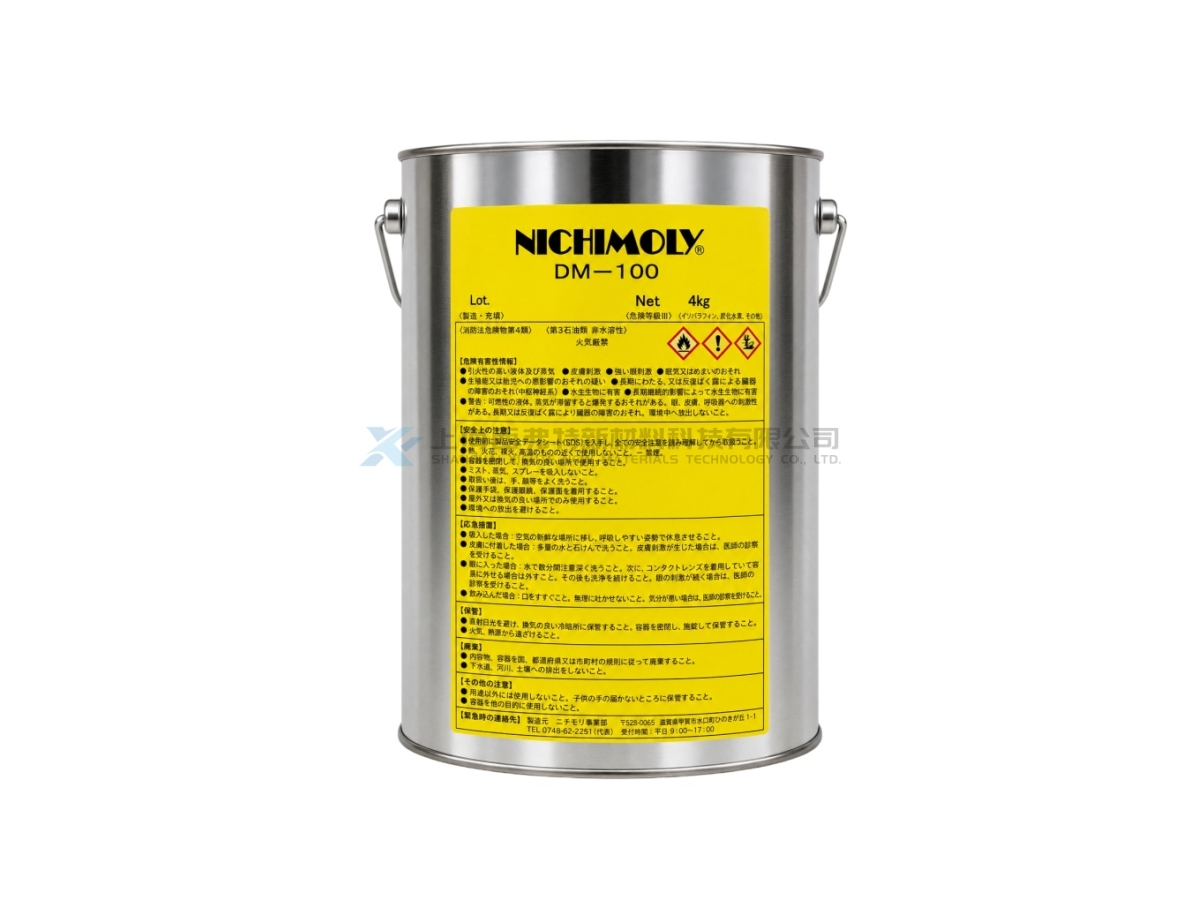

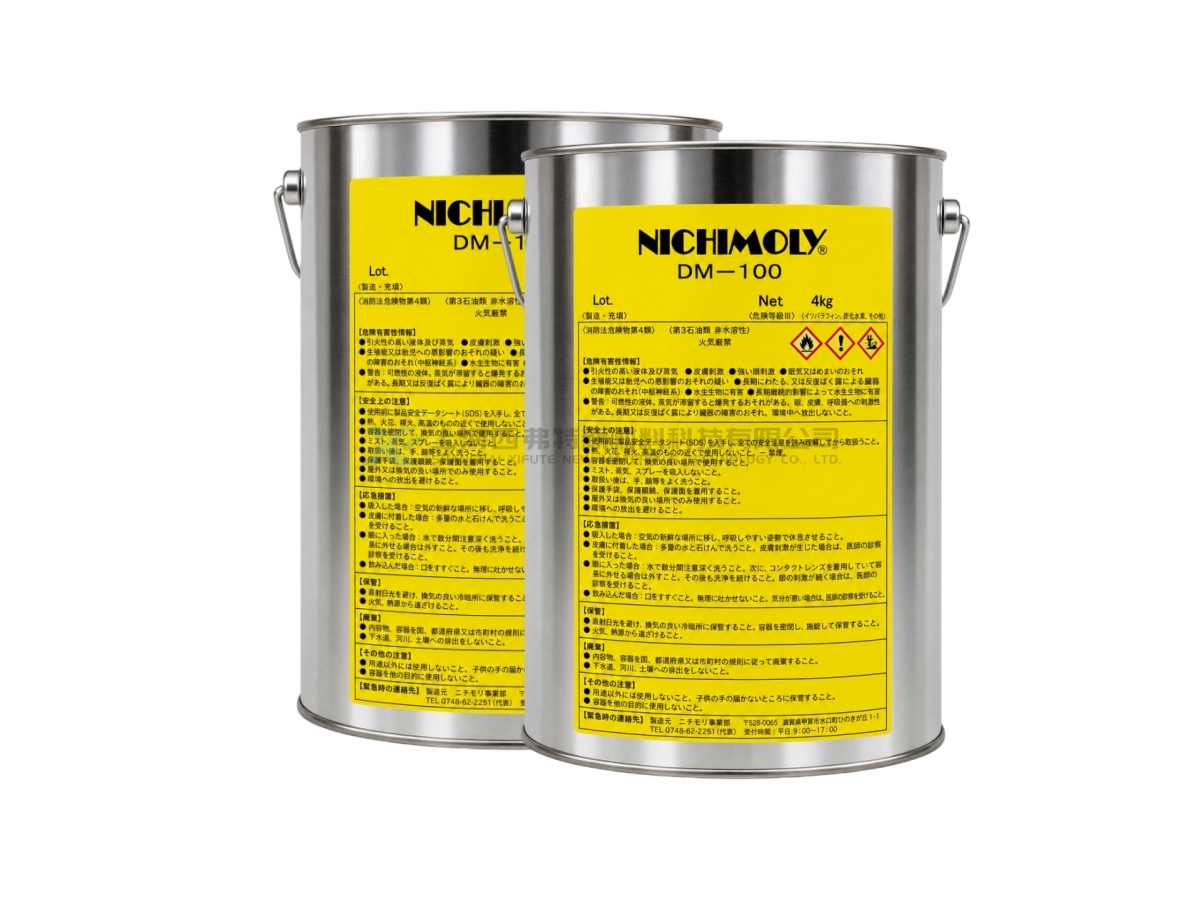

DAIZO NICHIMOLY DM-100 Molybdenum Disulfide Dry Film Lubricant
DAIZO NICHIMOLY DM-100 is a general-purpose dry film lubricant containing molybdenum disulfide as its primary solid lubricant. After application to a metal surface, it forms a dry lubricating film under room-temperature curing conditions and is suitable for sliding or contact areas where conventional oil or grease is difficult to use. The standard curing condition for DM-100 is room temperature for 24 hours. Once cured, the dry film provides lubrication without the tackiness associated with oil and grease, making it suitable for press-die guide pins, bolts, nuts and other parts requiring wear and seizure protection. The product has a gray-black appearance and uses molybdenum disulfide as the main solid lubricant. Technical lubricant references also list graphite as an additional solid component. Available package sizes include 1 kg and 4 kg, while the current manufacturer page also lists a 14 kg package.
Product Details
Product Features
Molybdenum Disulfide Solid Lubrication: Contains molybdenum disulfide as the primary solid lubricant, forming a low-friction lubricating film on metal contact surfaces.
Room-Temperature Curing: No high-temperature baking is required, with a standard curing condition of room temperature for 24 hours.
Dry Film Lubrication: Forms a dry solid lubricating film after curing, making it suitable for locations where oil or grease is undesirable.
Good Wear Protection: The solid lubricating film helps reduce direct metal-to-metal contact and improves friction and wear performance.
Suitable for Assembly and Sliding Parts: Can be applied to guide pins, bolts, nuts and other metal sliding or fastening components.
Product Applications
Press Die Guide Pins: Suitable for lubricating guide pins and other sliding components in press dies.
Bolts and Nuts: Can be used on threaded fastening parts to provide solid lubrication during assembly and disassembly.
Metal Sliding Mechanisms: Suitable for bushes, pins, slideways and other metal moving parts requiring dry lubrication.
Running-In and Anti-Seizure: Can be applied during running-in and on contact areas prone to seizure to improve sliding performance.
Areas Unsuitable for Oil or Grease: Suitable for locations where conventional oil or grease cannot be used, especially where contamination from dust or debris is undesirable.
| Item | DM-100 |
|---|---|
| Product Type | General-Purpose Dry Film Lubricant |
| Brand | DAIZO NICHIMOLY |
| Model | DM-100 |
| Appearance | Gray-Black |
| Main Solid Lubricant | Molybdenum Disulfide |
| Additional Solid Component | Graphite |
| Lubrication Type | Dry Solid Lubricating Film |
| Curing Method | Room-Temperature Drying |
| Standard Curing Condition | Room Temperature × 24 Hours |
