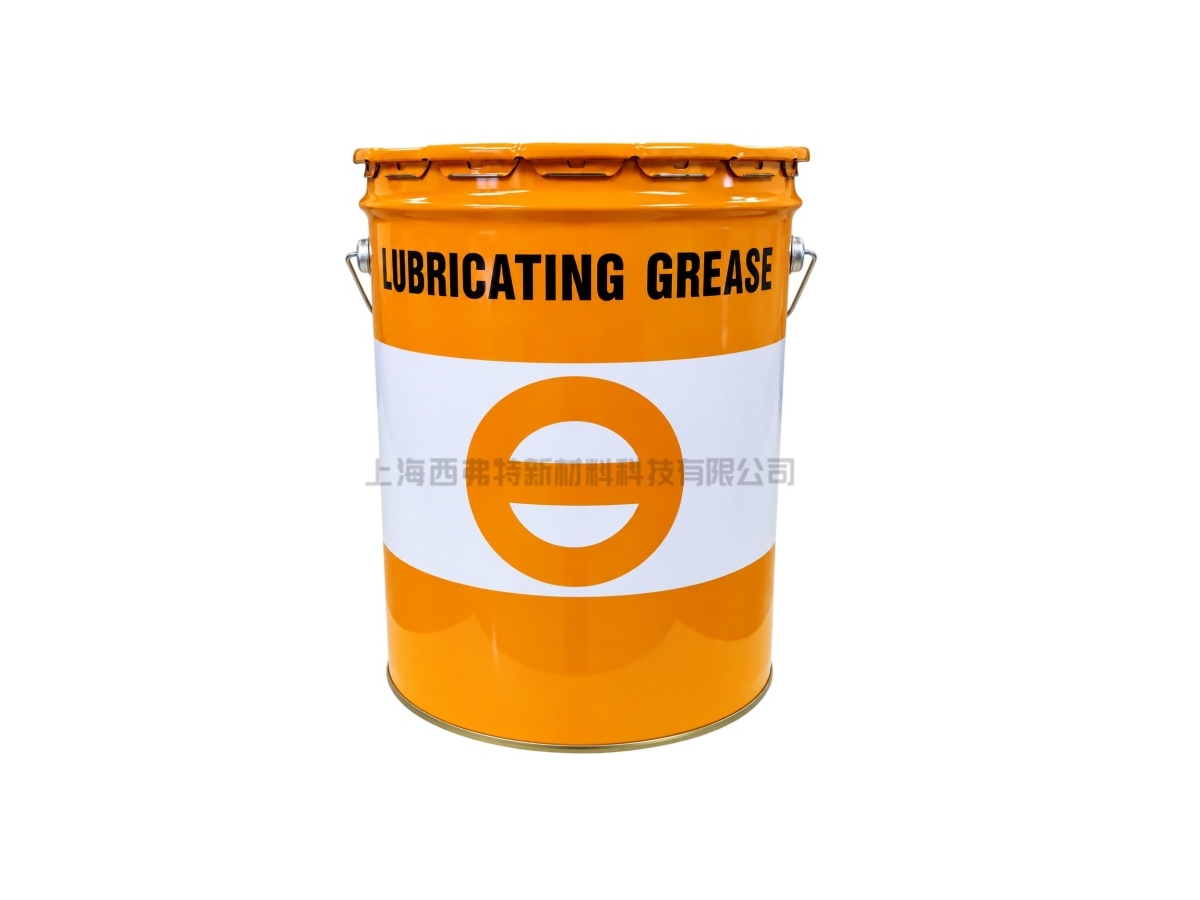

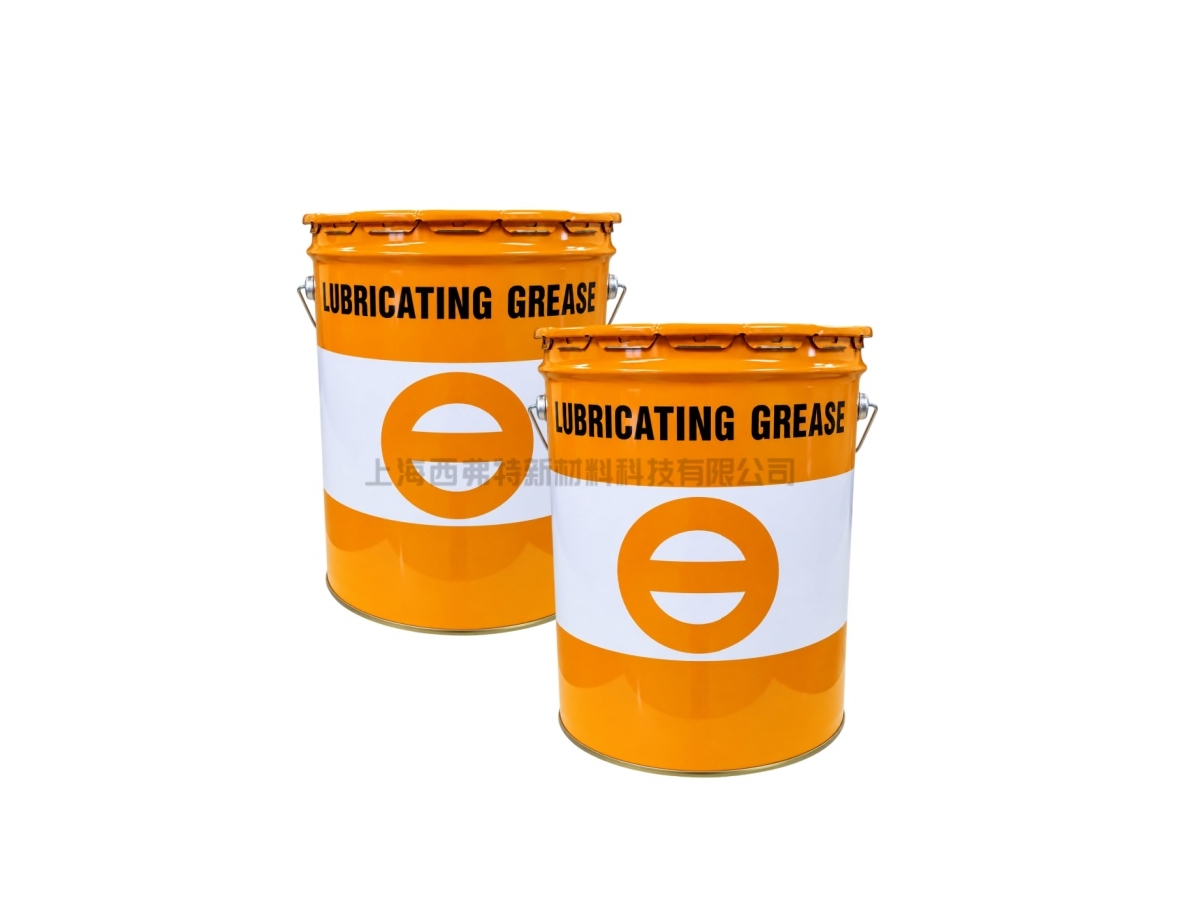

Idemitsu NTG KINGSTAR EP No.1 / No.2 Organomolybdenum Extreme-Pressure Lithium Grease
KINGSTAR EP is an extreme-pressure lithium grease formulated with high-quality refined mineral oil as the base oil. It contains organomolybdenum compounds, polymers, EP additives and antioxidants to provide strong adhesion, water resistance, heat resistance and mechanical stability. The high level of organomolybdenum gives the grease particularly good anti-wear performance, making it especially suitable for construction machinery and other equipment operating under heavy loads, shock and vibration. The main difference between No.1 and No.2 is consistency. No.1 has a worked penetration of 325, making it softer, while No.2 has a worked penetration of 278, giving it firmer consistency and better retention in some applications.
Product Details
Product Features
Excellent Anti-Wear Performance:Contains organomolybdenum compounds for improved wear protection.
Good Adhesion:Polymer additives improve adhesion and grease retention on lubricated surfaces.
Good Oxidation and Mechanical Stability:Suitable for long-term service and repeated mechanical shear.
Excellent EP Performance:Suitable for shock-loaded and heavily loaded sliding parts.
Long Service Life:Provides stable lubrication in demanding machinery.
Good Rust and Water Resistance:Suitable for wet or outdoor operating environments.
Product Applications
Construction Machinery Bearings, Gears, Pins and Bushings:For lubrication points in various types of construction equipment.
General Industrial Bearings:For bearing lubrication in a wide range of industrial machinery.
Gears and Gear Motors:Suitable for various gears and geared motors.
Shock-Loaded and Heavy-Load Sliding Parts:For sliding mechanisms exposed to shock loads and high contact pressure.
| Item | KINGSTAR EP No.1 | KINGSTAR EP No.2 |
|---|---|---|
| Product Type | EP Lithium Grease | EP Lithium Grease |
| Base Oil | Refined Mineral Oil | Refined Mineral Oil |
| Thickener | Lithium Soap | Lithium Soap |
| Main Additives | Organomolybdenum / Polymer / EP Additives / Antioxidants | Organomolybdenum / Polymer / EP Additives / Antioxidants |
| Appearance | Yellow Buttery Grease | Yellow Buttery Grease |
| Worked Penetration at 25°C | 325 | 278 |
| Dropping Point | 195°C | 189°C |
| Copper Corrosion, 100°C × 24 h | Pass | Pass |
| Evaporation Loss, 99°C × 22 h | 0.40 mass% | 0.41 mass% |
| Oil Separation, 100°C × 24 h | 2.5 mass% | 0.5 mass% |
| Oxidation Stability, 99°C × 100 h | 30 kPa | 30 kPa |
| Worked Stability, 100,000 Strokes | 360 | 340 |
| Timken Load-Carrying Capacity | 22.7 kg | 22.7 kg |
| Four-Ball Weld Load | 3089 N | 3089 N |
| Base Oil Viscosity at 40°C | 158.8 mm²/s | 158.0 mm²/s |
| Base Oil Viscosity at 100°C | 13.80 mm²/s | 13.70 mm²/s |
| Packaging | 400 g × 20 / 16 kg | 400 g × 20 / 16 kg |
