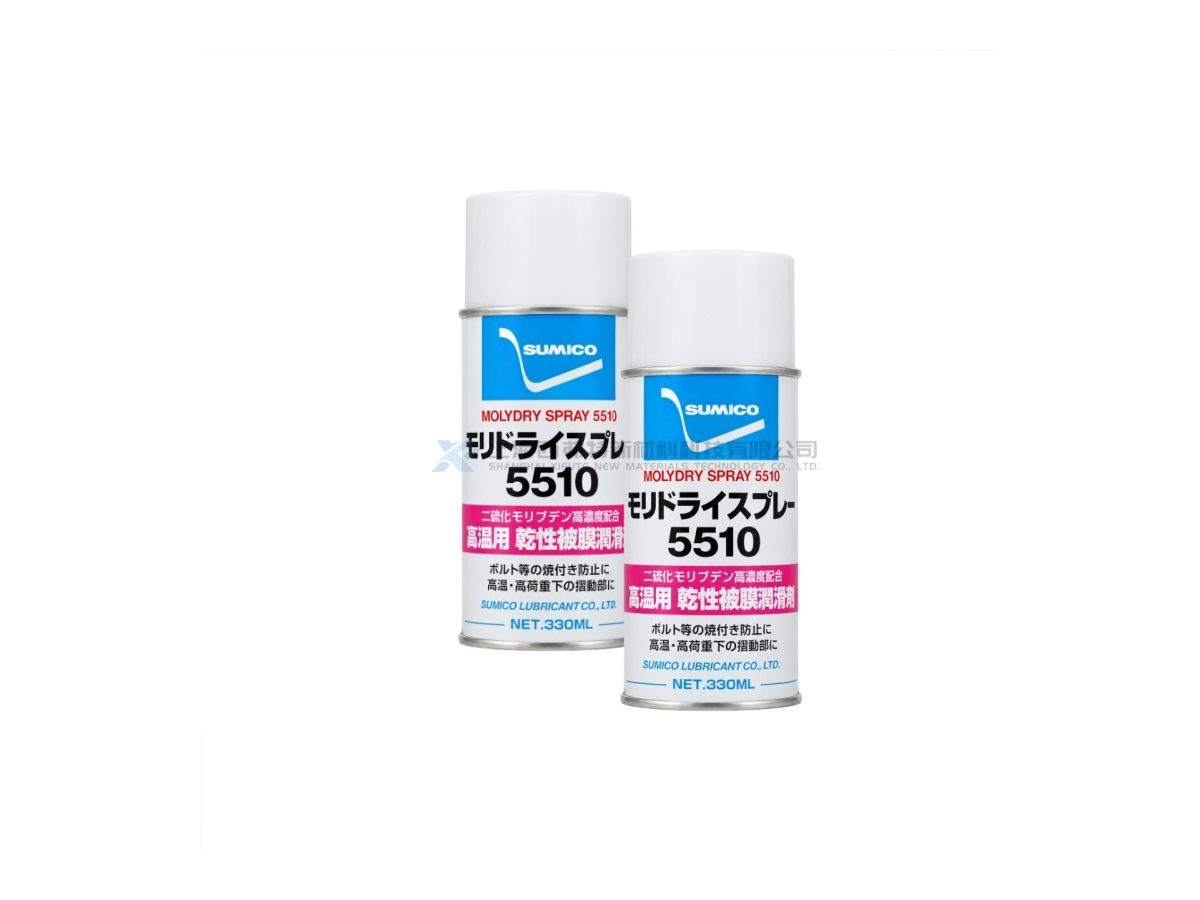

SUMICO Molydry Spray 5510 Molybdenum Disulfide Dry Lubricant Spray
Molydry Spray 5510 is a molybdenum disulfide dry film lubricant spray developed by Sumico Lubricant Co., Ltd. The SDS identifies the product as “Molydry Spray 5510” with product number 1216. The product uses molybdenum disulfide (MoS₂) and graphite as solid lubricating components. After spraying, the solvent evaporates and the solid lubricant forms a dry lubricating film on the surface, reducing friction and improving sliding performance. According to the SDS composition data, molybdenum disulfide content is approximately 5–10 wt%, graphite content is approximately 1–5 wt%, together with propellant gases and solvent components such as butane, propane, cyclohexane and xylene. The product appears as a gray-black liquid with solvent odor. Its density is approximately 0.97 g/cm³, and the flash point is approximately -20℃.
Product Details
Product Features
Molybdenum Disulfide Solid Lubrication:Provides excellent friction reduction and wear resistance
Dry Film Lubrication:Forms a dry lubricating coating without oil contamination
High Load Performance:Solid lubricant film withstands pressure and mechanical loads
Easy Spray Application:Aerosol design enables convenient application
Low Friction Performance:Reduces resistance of moving mechanical parts
Special Lubrication Applications:Suitable where conventional grease lubrication is unsuitable
Product Applications
Precision Machinery:Lubrication of guides, slides and moving mechanisms
Metal Processing Equipment:Friction reduction for molds and sliding components
Industrial Machinery:Dry lubrication of shafts, pins, gears and contact surfaces
Automotive Equipment:Protection of metal friction components
Mold Industry:Wear reduction of mold sliding parts
Clean or Special Environments:Applications where oil and grease lubrication is not suitable
| Item | Molydry Spray 5510 |
|---|---|
| Product Type | Molybdenum Disulfide Dry Lubricant Spray |
| Brand | SUMICO |
| Model | Molydry Spray 5510 |
| Appearance | Gray-Black Liquid |
| Odor | Solvent Odor |
| Density | Approx. 0.97 g/cm³ |
| Lubricating Components | MoS₂ and Graphite |
| Molybdenum Disulfide Content | 5–10 wt% |
| Graphite Content | 1–5 wt% |
| Propellant | Propane / Butane |
| Main Solvents | Cyclohexane, Xylene, Butyl Acetate, etc. |
| Flash Point | -20℃ |
| Water Solubility | Poorly Soluble |
| Form | Aerosol Spray |
| Main Applications | Dry lubrication of metal sliding components |
